Electro-forged · Manually welded · Hot-dip galvanised · Painted · Serrated
Looking for steel grating suppliers in Saudi Arabia? Saudigrate, Arabian Gratings, Saudi Ekmal, Technor Metals Company LLC, Bakriya Welding Solutions, Naz Steel, Attieh Steel and Faisal Ali Al Qahtani Contracting Establishment are among the suppliers listed in this FYIND KSA category. Compare their available steel grating products, specifications, sizes and suitable applications, along with what to check before placing an order. You can also explore more grating suppliers on FYIND to find options across all 18 grating categories.
Quick answer: For Electro Forged Steel Grating Light Duty, 2893 mm, call Saudigrate (Riyadh, +966 50 196 4303); for Electro Forged Type Grating 25 to 100 mm, 3 to 8 mm, call Arabian Gratings (Jeddah, +966 12 647 3020); for Steel Grating, 3 to 10 mm, 25 to 140 mm, call Saudi Ekmal (Dammam, +966 13 807 1277); for Gratings 6 x 1 m, call Technor Metals Company LLC (Riyadh, +966 11 435 5492); for painted steel grating with flat bar and I-bar, call Bakriya Welding Solutions (Jeddah, +966 12 221 1260); for general steel grating, call Naz Steel (Riyadh, +966 50 218 6958); for 3 to 5 mm gratings, 1,000 mm wide, call Attieh Steel (Jeddah, +966 55 811 9726); for manually welded heavy-duty grating, 35 to 150 mm, call Faisal Ali Al Qahtani Contracting Establishment (Madinah Road, Exit 17, +966 50 898 4051). You can also send an enquiry to each supplier through its fyind profile.
Estimated price: about SAR 75–265 per m².
Supplier · Product · Card specs
Short answer: Saudigrate, Arabian Gratings, Saudi Ekmal, Technor Metals Company LLC, Bakriya Welding Solutions, Naz Steel, Attieh Steel and Faisal Ali Al Qahtani Contracting Establishment list steel grating on fyind KSA (8 suppliers).
| Supplier | Business type | Product listed | Specifications on the card |
|---|---|---|---|
| Saudigrate | Manufacturer (verified) | Electro Forged Steel Grating Light Duty, 2893 mm | Weight 59.16 kg/m² · Bearing bar 32 x 5 mm · Loading category: light duty · Maximum clear span for pedestrian load 2,893 mm |
| Arabian Gratings | Supplier | Electro Forged Type Grating 25 to 100 mm, 3 to 8 mm | Finish: self colour or hot-dip galvanised · Panel size 100 x 6000 / 905 x 6000 mm · Load bar: plain or serrated |

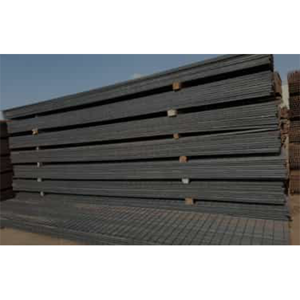

| Saudi Ekmal | Supplier | Steel Grating, 3 to 10 mm, 25 to 140 mm | Finish: hot-dip galvanised · Cross bar pitch 50 / 100 mm · Cross bar size 6, 8, 10 mm · Bearing bar pitch 30 to 41 mm |

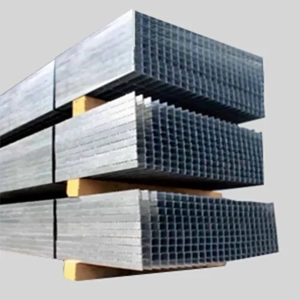

| Technor Metals Company LLC | Manufacturer | Gratings 6 x 1 m | Panel size 6 x 1 m · Pitch 41 x 100 mm · Bearing bar width 20 to 100 mm |
| Bakriya Welding Solutions | Manufacturer | Steel Grating Painted | Material: carbon steel and stainless steel · Surface: plain or serrated · Bearing bar: flat bar and I-bar |
| Naz Steel | Supplier | Steel Grating By Naz Steel | Material: steel |

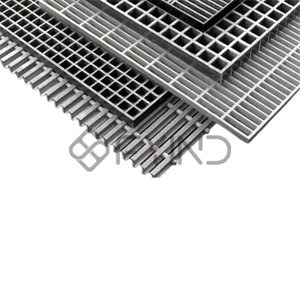

| Attieh Steel | Stockist | Gratings 3 To 5 mm | Width 1,000 mm · Thickness 3 to 5 mm |

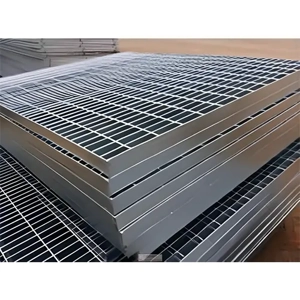

| Faisal Ali Al Qahtani Contracting Establishment | Supplier | Manually Welded Heavy Duty Grating 35 to 150 mm, 5 to 12 mm | Grade: ASTM A36 / ASTM A1011 / BS EN 10025 S275JR · Finish: self colour or hot-dip galvanised |
Taken from each supplier's fyind product card. Prices on the cards show 0, so ask for a quote.
By product · By spec
Short answer: pick Saudigrate or another supplier below by the exact product and specification on its card, not by name.
Choose Saudigrate if you need Electro Forged Steel Grating Light Duty, 2893 mm (Weight 59.16 kg/m², Bearing bar 32 x 5 mm) and want a verified supplier on fyind.
Choose Arabian Gratings if you need Electro Forged Type Grating 25 to 100 mm, 3 to 8 mm (Finish: self colour or hot-dip galvanised, Panel size 100 x 6000 / 905 x 6000 mm).
Choose Saudi Ekmal if you need Steel Grating, 3 to 10 mm, 25 to 140 mm (Finish: hot-dip galvanised, Cross bar pitch 50 / 100 mm).
Choose Technor Metals Company LLC if you need Gratings 6 x 1 m (Panel size 6 x 1 m, Pitch 41 x 100 mm).
Choose Bakriya Welding Solutions if you need Steel Grating Painted (Material: carbon steel and stainless steel, Surface: plain or serrated).
Choose Naz Steel if you need Steel Grating By Naz Steel (Material: steel).
Choose Attieh Steel if you need Gratings 3 To 5 mm (Width 1,000 mm, Thickness 3 to 5 mm).
Choose Faisal Ali Al Qahtani Contracting Establishment if you need Manually Welded Heavy Duty Grating 35 to 150 mm, 5 to 12 mm (Grade: ASTM A36 / ASTM A1011 / BS EN 10025 S275JR, Finish: self colour or hot-dip galvanised).
Short answer: For grating cut or built to your own drawing, start with the manufacturers on FYIND: Saudigrate and Technor Metals Company LLC in Riyadh, and Bakriya Welding Solutions in Jeddah. For deep, hand-welded grating in special sizes, contact Faisal Ali Al Qahtani Contracting Establishment, which lists bearing bars from 35 to 150 mm. Stockists such as Attieh Steel suit jobs where standard panels only need simple cutting. Send your layout drawing, load and finish with the enquiry, so each supplier can confirm what it can make and how long it will take.
| Supplier | What its card shows | City | Contact |
|---|---|---|---|
| Saudigrate | Manufacturer (verified). Electro-forged light duty, 32 x 5 mm bar | Riyadh | +966 50 196 4303 |
| Technor Metals Company LLC | Manufacturer. 6 x 1 m panels, bars 20–100 mm, 41 x 100 mm pitch | Riyadh | +966 11 435 5492 |
| Bakriya Welding Solutions | Manufacturer. Carbon or stainless, flat bar or I-bar, plain or serrated | Jeddah | +966 12 221 1260 |
| Faisal Ali Al Qahtani Contracting Establishment | Manually welded heavy duty, 35–150 mm x 5–12 mm | Madinah Road, Exit 17 | +966 50 898 4051 |
How it helps: A panel made to your drawing drops straight into the opening, around pipes and columns. That means less cutting and welding on site, fewer bare cut edges that can rust, and a faster install.
Short answer: Riyadh has Saudigrate, Technor Metals Company LLC and Naz Steel. Jeddah has Arabian Gratings, Bakriya Welding Solutions and Attieh Steel. Dammam has Saudi Ekmal. None of the 8 suppliers lists an address in Jubail, so Jubail buyers usually call Saudi Ekmal in Dammam, about 95 km away, or Saudigrate, whose Google profile is its Al Khobar office. Faisal Ali Al Qahtani lists Madinah Al Munawwarah Road, Exit 17, so confirm the city and delivery area when you call. Always ask whether delivery to site is in the price.
| City | Supplier | Area | Contact |
|---|---|---|---|
| Riyadh | Saudigrate | Al Malaz | +966 50 196 4303 |
| Riyadh | Technor Metals Company LLC | Al Rawabi | +966 11 435 5492 |
| Riyadh | Naz Steel | Industrial Area | +966 50 218 6958 |
| Jeddah | Arabian Gratings | Othman Ibn Affan Road | +966 12 647 3020 |
| Jeddah | Bakriya Welding Solutions | Industrial Area | +966 12 221 1260 |
| Jeddah | Attieh Steel | Al Hamra | +966 55 811 9726 |
| Dammam | Saudi Ekmal | King Fahd Road, Ibn Khaldun | +966 13 807 1277 |
| Jubail | Served by Saudi Ekmal (Dammam) or Saudigrate (Al Khobar office) | No local listing | +966 13 807 1277 |
| Confirm when calling | Faisal Ali Al Qahtani Contracting Establishment | Madinah Al Munawwarah Road, Exit 17 | +966 50 898 4051 |
How it helps: Buying from a supplier in or near your city cuts truck costs and delivery time, and makes it easier to collect a missing panel or visit the factory to check the work.
Panel size · Bar size · Pitch
Short answer: The most common steel grating panel in Saudi Arabia is 1 m wide and 6 m long. Bearing bars are usually 25–100 mm high and 3–10 mm thick, spaced about 30–41 mm apart, with cross bars every 50 or 100 mm. Heavy-duty grating goes up to 150 mm high and 12 mm thick. Suppliers can also cut panels to your exact size, which costs a bit more. Pick the size based on the load (people, forklifts or trucks) and the distance between supports, and ask the supplier to check the span.
A grating size such as "32 x 5" or "41 x 100" can look confusing. Here is what each part tells you:
| Supplier | Bearing bar size | Panel / pitch | Contact |
|---|---|---|---|
| Saudigrate | 32 x 5 mm (light duty, 59.16 kg/m²) | Clear span up to 2,893 mm for foot traffic | +966 50 196 4303 |
| Arabian Gratings | 25–100 mm high, 3–8 mm thick | 6,000 mm long panels (905 mm wide option); plain or serrated | +966 12 647 3020 |
| Saudi Ekmal | 25–140 mm high, 3–10 mm thick | Bar pitch 30–41 mm; cross bar 6, 8 or 10 mm at 50 / 100 mm | +966 13 807 1277 |
| Technor Metals Company LLC | 20–100 mm wide bars | 6 x 1 m panel; pitch 41 x 100 mm | +966 11 435 5492 |
| Bakriya Welding Solutions | Flat bar or I-bar | Made to order; plain or serrated | +966 12 221 1260 |
| Naz Steel | Ask for sizes | General steel grating | +966 50 218 6958 |
| Attieh Steel | 3–5 mm thick | 1,000 mm wide | +966 55 811 9726 |
| Faisal Ali Al Qahtani Contracting Establishment | 35–150 mm high, 5–12 mm thick (heavy duty) | Manually welded; ASTM A36 / S275JR steel | +966 50 898 4051 |
Check before you order: Ask for the span between supports and the pedestrian load the grating panel is rated for. If the walkway is exposed to oil or water, consider serrated bars for better grip. Have your engineer confirm the panel specifications and suitability for your site. You can also explore different grating types and compare suppliers on the FYIND grating hub.
| Use | Typical bearing bar | Who lists it |
|---|---|---|
| Walkways, platforms, stair treads | 25 x 3 mm to 32 x 5 mm | Saudigrate, Arabian Gratings, Attieh Steel |
| Plant floors, trench covers with carts | 40 x 5 mm to 60 x 8 mm | Saudi Ekmal, Technor, Arabian Gratings |
| Forklift, truck and loading areas | 75 x 10 mm to 150 x 12 mm | Faisal Ali Al Qahtani, Saudi Ekmal |
Sizes are taken from each supplier's FYIND product card. The job guide is a general rule of thumb, so ask the supplier to confirm the load table and span for your site.
Short answer: Start with a site drawing, not a panel list. Measure each opening, mark the supports and pipes, and decide which way the bearing bars must run (always across the supports). Then split the area into panels light enough to lift by hand, with cut-outs for pipes and banding on every cut edge. Standard 6 x 1 m panels cost the least; cut-to-size pieces cost more but fit first time. Ask manufacturers such as Saudigrate, Technor or Bakriya to quote from your drawing.
| Option | Cost | Fit | Best for |
|---|---|---|---|
| Standard panels (6 x 1 m) | Lowest | Cut on site; needs touch-up of cut edges | Large, simple floor areas |
| Cut-to-size to drawing | Higher | Fits first time, edges banded and galvanised | Platforms with pipes, odd shapes, stair treads |
How it helps: A clear layout drawing gives every supplier the same brief, so quotes compare like for like and panels arrive ready to fit, without wasted steel or rushed cutting on site.
Electro-forged · Welded heavy duty · Painted
Saudigrate and Arabian Gratings list electro-forged steel grating in KSA, Faisal Ali Al Qahtani Contracting Establishment lists manually welded heavy-duty grating, and Bakriya Welding Solutions lists painted steel grating with flat bars and I-bars.
| Type | What it is | Listed by | Choose it if |
|---|---|---|---|
| Electro-forged | Cross bars fused into bearing bars by machine, in standard panels | Saudigrate, Arabian Gratings | Walkways and platforms with standard spans |
| Manually welded heavy duty | Deep bearing bars welded by hand, often to drawing | Faisal Ali Al Qahtani Contracting Establishment, Saudigrate | Wide trenches, yards and vehicle areas |
| Painted | Steel grating with a paint coating | Bakriya Welding Solutions | Indoor areas where the coating can be maintained |
| Standard panels | Ready-cut panels from stock | Technor Metals Company LLC, Attieh Steel, Naz Steel, Saudi Ekmal | Quick delivery of common sizes |
Short answer: Mild steel is a low-carbon type of carbon steel, so for grating the two names usually mean the same thing: strong, easy to weld and the lowest-cost option. Common grades are ASTM A36 and BS EN 10025 S275JR, both listed by Faisal Ali Al Qahtani. It must be galvanised or painted, or it will rust. Stainless steel (304 or 316) contains chromium, so it resists rust without a coating, but it costs roughly two to four times more. Bakriya Welding Solutions lists both carbon steel and stainless steel grating.
| Point | Carbon steel | Mild steel | Stainless steel |
|---|---|---|---|
| What it is | Iron with carbon; the general family | Carbon steel with low carbon (up to about 0.25%) | Steel with at least 10.5% chromium (304 or 316) |
| Typical grade | ASTM A1011, A36 | ASTM A36, S275JR | AISI 304 or 316 |
| Strength (yield) | About 250–275 MPa | About 250–275 MPa | About 205–215 MPa (304/316) |
| Rust protection | Needs galvanising or paint | Needs galvanising or paint | Built in, no coating needed |
| Estimated price | About SAR 45–265 per m² (by finish) | About SAR 45–265 per m² (by finish) | About SAR 170–600 per m² |
| Best for | Plants, walkways, trenches | Same as carbon steel | Food plants, coastal and chemical areas |
| Who lists it | Faisal Ali Al Qahtani, Bakriya | Faisal Ali Al Qahtani | Bakriya (+966 12 221 1260) |
Need stainless only? See the stainless steel grating category. Prices are the same estimates used in the price section below.
Short answer: Both are ways of joining the cross bars to the bearing bars. Electro-forged (also called pressure-welded) grating is made by a machine that fuses the cross bars into the bearing bars using heat and pressure, giving a one-piece panel with strong joints. Saudigrate and Arabian Gratings list it. Press-locked grating is made cold: the bars are slotted and pressed together without welding, giving a flat, neat surface that is often used for screens, ceilings and facades. None of the 8 suppliers lists press-locked grating on its card, so ask before you specify it.
| Point | Electro-forged | Press-locked |
|---|---|---|
| How it is made | Cross bars fused into bearing bars with heat and pressure | Slotted bars pressed together cold, no welding |
| Cross bar | Usually a twisted square bar | Flat bar, flush with the top |
| Look | Industrial | Neat, even mesh |
| Strength | Very strong joints; good for loads and vibration | Good for foot traffic; joints rely on the press fit |
| Typical use | Walkways, platforms, trench covers, plant floors | Architectural screens, sunshades, ceilings, light walkways |
| KSA suppliers on FYIND | Saudigrate (+966 50 196 4303), Arabian Gratings (+966 12 647 3020) | Not listed; ask the manufacturers |
How it helps: Picking the right panel type means you do not pay for a decorative finish on a plant floor, or end up with weak joints where heavy carts and vibration would loosen them.
Bar size · Pitch · Panel size · Standards
Saudigrate, Saudi Ekmal, Technor Metals Company LLC and Arabian Gratings publish these figures on their fyind cards for steel grating in KSA:
| Specification | What it means | Values on fyind cards |
|---|---|---|
| Bearing bar | The load-carrying bar, height x thickness | 32 x 5 mm (Saudigrate); 25–140 mm x 3–10 mm (Saudi Ekmal); 25–100 mm x 3–8 mm (Arabian Gratings); 35–150 mm x 5–12 mm (Faisal Ali Al Qahtani) |
| Pitch | Spacing of bearing bars x cross bars | 41 x 100 mm (Technor); bearing bar 30–41 mm, cross bar 50 / 100 mm (Saudi Ekmal) |
| Panel size | Standard panel dimensions | 6 x 1 m (Technor); 100 x 6000 / 905 x 6000 mm (Arabian Gratings); 1,000 mm wide (Attieh Steel) |
| Maximum span | Clear span for a stated load | 2,893 mm for pedestrian load (Saudigrate light duty) |
| Steel grade | Material standard | ASTM A36 / ASTM A1011 / BS EN 10025 S275JR (Faisal Ali Al Qahtani) |
Hot-dip galvanised · Painted · Self colour
Saudi Ekmal lists hot-dip galvanised steel grating in KSA, Arabian Gratings and Faisal Ali Al Qahtani Contracting Establishment offer self colour or hot-dip galvanised, and Bakriya Welding Solutions lists painted grating.
| Finish | Choose it if | Watch out for |
|---|---|---|
| Hot-dip galvanised | Outdoor, coastal and plant areas | Cut edges need zinc-rich touch-up |
| Painted | Indoor areas with regular maintenance | Paint wears on walkways |
| Self colour | Grating will be coated on site or kept dry indoors | Rusts quickly outdoors |
Short answer: For grip, ask for serrated grating, where the top of each bearing bar is notched so shoes and tyres hold better on oil, water or sand. Arabian Gratings and Bakriya Welding Solutions list plain or serrated bars. For weather resistance, choose hot-dip galvanised steel from Saudi Ekmal, Arabian Gratings or Faisal Ali Al Qahtani, or stainless steel from Bakriya for the harshest sites. Combining serrated bars with hot-dip galvanising gives the best mix of grip and long life outdoors.
Serrations slightly reduce the load a bar can carry, so ask the supplier for the load table of the serrated version.
How it helps: Serrated bars cut slip accidents on wet, oily or sandy floors, and a galvanised or stainless finish stands up to sun, rain and salt air, so the grating lasts longer between replacements.
Short answer: For most outdoor sites in KSA, hot-dip galvanised steel gives the best value. The zinc layer, typically around 70–85 microns under ISO 1461, protects the steel for many years inland. Near the coast at Jeddah, Dammam or Jubail, 316 stainless steel lasts longest but costs the most, while 304 stainless is fine inland. Painted and self-colour grating need regular repainting outdoors. Saudi Ekmal, Arabian Gratings and Faisal Ali Al Qahtani offer hot-dip galvanised grating, and Bakriya Welding Solutions lists stainless.
| Finish | Inland (e.g. Riyadh) | Coastal (Jeddah, Dammam, Jubail) | Estimated price | Who lists it |
|---|---|---|---|---|
| Hot-dip galvanised | Very good | Good; touch up cut edges | About SAR 75–265 per m² | Saudi Ekmal, Arabian Gratings, Faisal Ali Al Qahtani |
| Stainless 316 | Excellent | Excellent | Top of SAR 170–600 per m² | Bakriya (ask for grade) |
| Stainless 304 | Very good | Fair; may show brown staining | About SAR 170–600 per m² | Bakriya |
| Painted | Fair; repaint often | Poor | About SAR 45–130 per m² | Bakriya |
| Self colour (bare) | Poor | Very poor | From about SAR 45 per m² | Arabian Gratings, Faisal Ali Al Qahtani |
See how Saudi heat, sand and coastal air affect steel grating for more site tips.
How it helps: The right finish stops rust before it starts, so the grating stays safe to walk on and you avoid the cost of early replacement or yearly repainting.
Pedestrian walkways · Maintenance platforms · Rooftops · Catwalks
Short answer: Saudigrate lists Electro Forged Steel Grating Light Duty, 2893 mm on fyind KSA, which is the kind of steel grating used for walkways and platforms.
| Supplier | Product they list | Card specifications |
|---|---|---|
| Saudigrate | Electro Forged Steel Grating Light Duty, 2893 mm | Weight 59.16 kg/m² · Bearing bar 32 x 5 mm · Loading category: light duty · Maximum clear span for pedestrian load 2,893 mm |
| Technor Metals Company LLC | Gratings 6 x 1 m | Panel size 6 x 1 m · Pitch 41 x 100 mm · Bearing bar width 20 to 100 mm |
Choose it if: Choose steel for general plant walkways, aluminium where panels are lifted often, and FRP where the walkway sits over chemicals or water.
Check before you order: Ask for the span between supports and the pedestrian load the panel is rated for. Serrated bars give better grip on oily or wet walkways. This is general guidance; your engineer should confirm it for the site. See all suppliers for this job on the grating hub.
Check before you order:Ask for the span between supports and the pedestrian load the panel is rated for. Serrated bars give better grip on oily or wet walkways. This is general guidance; your engineer should confirm it for the site.. You can also explore different grating types and compare suppliers on the FYIND grating hub.
Short answer: For steel floors and platforms with foot traffic, a light-duty electro-forged panel such as Saudigrate's 32 x 5 mm grating (59.16 kg/m², spans up to 2,893 mm for pedestrian load) is the usual choice. Technor Metals Company LLC lists standard 6 x 1 m panels and Attieh Steel lists 1,000 mm-wide gratings. For stair treads, ask for the same grating cut to the tread width, with end plates for bolting to the stringers and an anti-slip nosing on the front edge. Choose serrated bars from Arabian Gratings or Bakriya where floors get oily or wet.
| Use | Suggested grating | Typical bar and pitch | Who to call |
|---|---|---|---|
| Steel floors and mezzanines | Electro-forged, standard 6 x 1 m panels | 30 x 3 to 32 x 5 mm; 30–41 x 100 mm | Technor Metals Company LLC +966 11 435 5492 |
| Maintenance and rooftop platforms | Electro-forged, hot-dip galvanised | 32 x 5 mm; span up to 2,893 mm (foot traffic) | Saudigrate +966 50 196 4303 |
| Stair treads | Grating cut to tread width, with end plates and nosing | 25 x 3 to 32 x 5 mm, serrated | Arabian Gratings +966 12 647 3020 |
| Oily or wet floors | Serrated, painted or stainless | Flat bar or I-bar | Bakriya Welding Solutions +966 12 221 1260 |
Ready-made treads are also listed in the grating tread category.
How it helps: Open grating lets light, air and water pass through, so floors stay dry and bright, and it weighs far less than a solid plate. Nosings and serrated bars help stop slips on stairs.
Hot-dip galvanised · Plant floors · Pipe racks · Eastern Province
Short answer: Saudi Ekmal lists Steel Grating, 3 to 10 mm, 25 to 140 mm on fyind KSA, which is the kind of steel grating used for oil, gas and industrial plants.
| Supplier | Product they list | Card specifications |
|---|---|---|
| Saudi Ekmal | Steel Grating, 3 to 10 mm, 25 to 140 mm | Finish: hot-dip galvanised · Cross bar pitch 50 / 100 mm · Cross bar size 6, 8, 10 mm · Bearing bar pitch 30 to 41 mm |
| Arabian Gratings | Electro Forged Type Grating 25 to 100 mm, 3 to 8 mm | Finish: self colour or hot-dip galvanised · Panel size 100 x 6000 / 905 x 6000 mm · Load bar: plain or serrated |
| Faisal Ali Al Qahtani Contracting Establishment | Manually Welded Heavy Duty Grating 35 to 150 mm, 5 to 12 mm | Grade: ASTM A36 / ASTM A1011 / BS EN 10025 S275JR · Finish: self colour or hot-dip galvanised |
| Bakriya Welding Solutions | Steel Grating Painted | Material: carbon steel and stainless steel · Surface: plain or serrated · Bearing bar: flat bar and I-bar |
Choose it if: Choose hot-dip galvanised grating for outdoor and coastal plants, and painted grating only where the coating can be maintained.
Check before you order: Your client or main contractor may require an approved-vendor list for plant work, so check before you order. This is general guidance; your engineer should confirm it for the site. See all suppliers for this job on the grating hub.
Check before you order: Your client or main contractor may require an approved-vendor list for plant work, so check before you order. This is general guidance; your engineer should confirm it for the site. You can also explore different grating types and compare suppliers on the FYIND grating hub.
40 ton · Roads · Ports · Loading bays
Short answer: Faisal Ali Al Qahtani Contracting Establishment lists Manually Welded Heavy Duty Grating 35 to 150 mm, 5 to 12 mm on fyind KSA, which is the kind of steel grating used for roads and heavy traffic.
| Supplier | Product they list | Card specifications |
|---|---|---|
| Faisal Ali Al Qahtani Contracting Establishment | Manually Welded Heavy Duty Grating 35 to 150 mm, 5 to 12 mm | Grade: ASTM A36 / ASTM A1011 / BS EN 10025 S275JR · Finish: self colour or hot-dip galvanised |
Choose it if: Choose ductile iron for road gullies, and deep welded steel grating for wide trenches in yards and ports.
Check before you order: Give the supplier the axle or wheel load, the clear span and the traffic type. A 40-ton rating on one product does not mean every size carries the same load. This is general guidance; your engineer should confirm it for the site. See all suppliers for this job on the grating hub.
Check before you order: Give the supplier the axle or wheel load, the clear span and the traffic type. A 40-ton rating on one product does not mean every size carries the same load. This is general guidance; your engineer should confirm it for the site. You can also explore different grating types and compare suppliers on the FYIND grating hub.
Short answer: Faisal Ali Al Qahtani Contracting Establishment lists manually welded heavy-duty grating with bearing bars 35–150 mm high and 5–12 mm thick, in self colour or hot-dip galvanised. Saudi Ekmal lists hot-dip galvanised grating up to 140 mm high and 10 mm thick, and Arabian Gratings offers galvanised electro-forged grating up to 100 x 8 mm. Heavy-duty galvanised grating is estimated at about SAR 300–1,125+ per m², depending on bar depth and quantity. Give the supplier the wheel load, the span and the traffic type so the bar is matched to the load.
| Supplier | Largest bar on card | Finish | Estimated price | Contact |
|---|---|---|---|---|
| Faisal Ali Al Qahtani Contracting Establishment | 150 x 12 mm, manually welded | Self colour or hot-dip galvanised | About SAR 300–1,125+ per m² | +966 50 898 4051 |
| Saudi Ekmal | 140 x 10 mm | Hot-dip galvanised | From about SAR 75 per m²; deeper bars cost more | +966 13 807 1277 |
| Arabian Gratings | 100 x 8 mm, electro-forged | Self colour or hot-dip galvanised | From about SAR 75 per m² (galvanised); deeper bars cost more | +966 12 647 3020 |
How it helps: Deep bars carry forklifts and trucks across wide trenches without bending, and the zinc coat protects the steel in yards, ports and plants without repainting. Welded joints also stay tight under vibration from heavy traffic.
Heat · Sand · Coast · Approvals
Short answer: Saudigrate and the other suppliers list steel grating for sites across KSA, where heat, sand and salt decide how long it lasts.
KSA tip – Heat: Steel and stainless grating in direct summer sun gets hot enough to burn bare hands; FRP can soften or fade with UV if the resin isn't rated for it.
KSA tip – Sand and shamal winds: Blown sand fills grating openings and the channels beneath. Plan lift-out panels or cleaning access, and clear drains after storms.
KSA tip – Coastal air: At Jeddah, Dammam, Al Khobar and Jubail, salt air attacks bare and painted steel. Hot-dip galvanised steel, 316 stainless or FRP last longer.
KSA tip – Approvals: Plant and oil and gas clients may require an approved vendor; fire escapes and stairs may need Civil Defense sign-off. Check before ordering.
KSA tip – Summer midday work ban: Outdoor work is restricted around midday in summer, usually from 15 June to 15 September. Check each year's dates and plan installation for mornings.
Supports · Fixing · Cut edges
Short answer: Saudigrate supplies steel grating in KSA; installation is normally done by your fabricator or contractor along these lines.
Safety: barrier off any open grating area during installation. This is general guidance; a qualified engineer should confirm loads, spans and fixings.
Options · Choose it if
Short answer: Saudigrate can quote steel grating, but these alternatives sometimes suit KSA sites better.
| Alternative | Choose it if | Watch out for |
|---|---|---|
| Stainless steel grating | Hygiene or appearance matters | Higher price |
| FRP grating | Chemical or electrical areas | Check load and fire rating |
| Chequered plate | A solid floor is needed | Holds water and sand |
Symptom · Cause · Fix
Short answer: Saudigrate supplies steel grating in KSA, and most problems trace back to fixing, cleaning or corrosion.
| Symptom | Likely cause | Fix |
|---|---|---|
| Panels rock or rattle | Missing clips or uneven supports | Refit clips; pack or level supports |
| Rust on steel grating | Galvanising damaged at cuts or welds | Clean and apply zinc-rich paint |
| Openings blocked with sand | Wind-blown sand and debris | Lift panels and clean; plan regular cleaning |
| Bars bent | Load above rating or dropped equipment | Replace panel; check the load class |
| FRP surface fading or fibres showing | UV exposure | Ask the supplier about UV coating or replacement |
Have a technician confirm the cause before buying replacement panels.
Checklist · Mistakes
Short answer: before you contact Saudigrate or another supplier for steel grating in KSA, have these answers ready.
| Mistake | What happens | Do this instead |
|---|---|---|
| Comparing quotes with different bar sizes | The cheapest quote is a lighter grating | Send every supplier the same bar size, pitch and finish |
| Asking for a price without the span | The quote is for the wrong bar depth | Give the span between supports |
| Ignoring cut-edge protection | Rust starts at cut edges | Ask for touch-up or factory cutting |
SAR · Estimates · Quotes
Short answer: Standard hot-dip galvanised steel grating costs about SAR 75–265 per m². Plain or painted grating starts lower, from about SAR 45 per m², while stainless steel and heavy-duty welded grating cost more. The suppliers below quote on request, so call for an exact price.
| Supplier | Item listed | Estimated price | Contact |
|---|---|---|---|
| Saudigrate | Electro Forged Steel Grating Light Duty, 32 x 5 mm bar | About SAR 75–265 per m² | +966 50 196 4303 |
| Arabian Gratings | Electro Forged Type Grating 25–100 mm, 3–8 mm (self colour or galvanised) | About SAR 45–265 per m² | +966 12 647 3020 |
| Saudi Ekmal | Hot-dip galvanised Steel Grating 3–10 mm, 25–140 mm | About SAR 75–265 per m² | +966 13 807 1277 |
| Technor Metals Company LLC | Gratings 6 x 1 m, 41 x 100 mm pitch | About SAR 75–265 per m² | +966 11 435 5492 |
| Bakriya Welding Solutions | Painted carbon steel or stainless steel grating | About SAR 45–130 per m² (painted); SAR 170–600 per m² (stainless) | +966 12 221 1260 |
| Naz Steel | General steel grating | About SAR 45–265 per m² | +966 50 218 6958 |
| Attieh Steel | Gratings 3–5 mm, 1,000 mm wide | About SAR 45–265 per m² | +966 55 811 9726 |
| Faisal Ali Al Qahtani Contracting Establishment | Manually Welded Heavy Duty Grating 35–150 mm, 5–12 mm | About SAR 300–1,125+ per m² | +966 50 898 4051 |
Prices are estimates for Nov 2026 and change with steel prices, size, finish and quantity. Ask for a written quote per m² or per panel.
Example job · Walkway · Riyadh
Short answer: A typical job is a factory walkway built from light-duty electro forged grating. Below is a worked example that uses the specs of Saudigrate's 32 x 5 mm light-duty panel. It shows how to work out size, weight, support spacing and budget before you call a supplier. The numbers are estimates for planning, not a finished project. Your own site, load and finish will change the final quote, so always ask the supplier to confirm the panel and span for your job.
Site: A factory mezzanine walkway in Riyadh, 20 m long and 1 m wide (20 m²), used by staff on foot only.
Problem: The old chequered plate floor held dust and spilled oil, so it became slippery, and light from the floor below could not pass through. The owner wanted an open, non-slip floor that drains and needs little upkeep.
Grating chosen and why: Electro Forged Steel Grating Light Duty from Saudigrate, with a 32 x 5 mm bearing bar and a weight of 59.16 kg/m². It is rated for pedestrian load with a clear span of up to 2,893 mm, so supports placed every 2.5 m leave a safety margin. Hot-dip galvanising is a sensible finish for an indoor area with oil and cleaning water.
Result: About 1,183 kg of grating in total (20 m² x 59.16 kg/m²), at an estimated SAR 1,500–5,300 for the material (SAR 75–265 per m²) before cutting, fixing clips and delivery. Call +966 50 196 4303 to get a written quote for your own size.
Supplier cards
Short answer: Saudigrate (Riyadh), Arabian Gratings (Jeddah), Saudi Ekmal (Dammam), Technor Metals Company LLC (Riyadh), Bakriya Welding Solutions (Jeddah), Naz Steel (Riyadh), Attieh Steel (Jeddah) and Faisal Ali Al Qahtani Contracting Establishment are listed for steel grating on fyind KSA. Each card shows the address, phone, Google rating where available, a listed product with its specifications and when to call.
Saudigrate is the manufacturer to contact for steel grating on fyind KSA.
“Best gratings manufacturer in gulf, orders will be delivered on time, quick response for customer” – Google reviewer
Electro Forged Steel Grating Light Duty, 2893 mm
Weight 59.16 kg/m² · Bearing bar 32 x 5 mm · Loading category: light duty · Maximum clear span for pedestrian load 2,893 mm
The situation: A plant needs steel walkway grating, stainless top notch channels and FRP panels for one project, and wants a single manufacturer to quote all three.
Questions to ask:
View the Saudigrate profile and steel grating products on fyind · Call +966 50 196 4303
Arabian Gratings is the supplier to contact for steel grating on fyind KSA.
“The material quality of the gratings was excellent, with precise fabrication and timely delivery.” – Google reviewer
Electro Forged Type Grating 25 to 100 mm, 3 to 8 mm
Finish: self colour or hot-dip galvanised · Panel size 100 x 6000 / 905 x 6000 mm · Load bar: plain or serrated
The situation: A contractor's drawing calls for hot-dip galvanised electro-forged grating on the steel areas and 25 mm pultruded FRP over a chemical sump.
Questions to ask:
View the Arabian Gratings profile and steel grating products on fyind · Call +966 12 647 3020
Saudi Ekmal is the supplier to contact for steel grating on fyind KSA.
“SAUDI EKMAL approved vendor for Saudi aramco, Sabic, Maaden, Yasref, Hyundai and samsung” – Google reviewer
Steel Grating, 3 to 10 mm, 25 to 140 mm
Finish: hot-dip galvanised · Cross bar pitch 50 / 100 mm · Cross bar size 6, 8, 10 mm · Bearing bar pitch 30 to 41 mm
The situation: An outdoor pipe rack needs hot-dip galvanised grating with a 30 to 41 mm bearing bar pitch.
Questions to ask:
View the Saudi Ekmal profile and steel grating products on fyind · Call +966 13 807 1277
Technor Metals Company LLC is the manufacturer to contact for steel grating on fyind KSA.
Gratings 6 x 1 m
Panel size 6 x 1 m · Pitch 41 x 100 mm · Bearing bar width 20 to 100 mm
The situation: A warehouse mezzanine needs standard 6 x 1 m steel grating panels at a 41 x 100 mm pitch.
Questions to ask:
View the Technor Metals Company LLC profile and steel grating products on fyind · Call +966 11 435 5492
Bakriya Welding Solutions is the manufacturer to contact for steel grating on fyind KSA.
Steel Grating Painted
Material: carbon steel and stainless steel · Surface: plain or serrated · Bearing bar: flat bar and I-bar
The situation: A workshop wants painted steel grating with serrated I-bars for an oily floor.
Questions to ask:
View the Bakriya Welding Solutions profile and steel grating products on fyind · Call +966 12 221 1260
Naz Steel is the supplier to contact for steel grating on fyind KSA.
Steel Grating By Naz Steel
Material: steel
The situation: A buyer needs general steel grating and wants a second quote to compare.
Questions to ask:
View the Naz Steel profile and steel grating products on fyind · Call +966 50 218 6958
Attieh Steel is the stockist to contact for steel grating on fyind KSA.
Gratings 3 To 5 mm
Width 1,000 mm · Thickness 3 to 5 mm
The situation: A maintenance team needs 3 to 5 mm steel gratings, 1,000 mm wide, from stock this week.
Questions to ask:
View the Attieh Steel profile and steel grating products on fyind · Call +966 55 811 9726
Faisal Ali Al Qahtani Contracting Establishment is the supplier to contact for steel grating on fyind KSA.
Manually Welded Heavy Duty Grating 35 to 150 mm, 5 to 12 mm
Grade: ASTM A36 / ASTM A1011 / BS EN 10025 S275JR · Finish: self colour or hot-dip galvanised
The situation: A project needs stainless pass thru gratings for finished floors and heavy-duty welded steel grating for a service yard.
Questions to ask:
View the Faisal Ali Al Qahtani Contracting Establishment profile and steel grating products on fyind · Call +966 50 898 4051
FAQ
Grating made by fusing cross bars into bearing bars by machine. It comes in standard panels and is used for most walkways and platforms.
For outdoor and coastal sites, usually yes, because the zinc coating protects the steel without regular repainting. Painted grating suits indoor areas.
Pitch is the centre-to-centre spacing of the bars, for example 41 x 100 mm: bearing bars every 41 mm and cross bars every 100 mm.
Grating with notched bearing bars on top for extra grip on oily or wet floors. Arabian Gratings and Bakriya Welding Solutions list plain or serrated options.
Cards on fyind list 6 x 1 m panels (Technor Metals Company LLC) and 100 x 6000 or 905 x 6000 mm panels (Arabian Gratings). Most suppliers also cut to drawing.
Saudigrate, Arabian Gratings, Saudi Ekmal, Technor Metals Company LLC, Bakriya Welding Solutions, Naz Steel, Attieh Steel and Faisal Ali Al Qahtani Contracting Establishment list steel grating on fyind KSA.
No. The fyind product cards show a price of 0, so send an enquiry with your specification to get a quote.
Use the Send Enquiry button on the supplier's fyind profile, for example Saudigrate, and attach your drawing or sizes.
Grating types · Hub
Apart from steel grating, you can explore other grating categories listed by Saudigrate and other suppliers in KSA. Visit the grating hub to compare all 18 grating categories and find options for your project.
Other grating categories
Grating for… guides on the hub
