Grey iron GG20 / GG25 · Ductile iron GGG50 · BS EN 124 · Channel, gully, manhole and tree grates
Riyadh Foundry, Al Kharj United, Saudi Cast and Go AlQurashi in the Riyadh region supply cast and ductile iron gratings, and Saudigrate and Arabian Gratings add iron grating to their steel, stainless and FRP ranges. Reliance Steel (RSIC) in Dammam makes galvanised steel grating for buyers who need both. This page covers sizes, load classes, grey versus ductile iron, estimated SAR prices and how to contact each supplier. Explore more grating suppliers on FYIND across all 18 categories.
Quick answer: For 40-ton grey cast iron channel and gully grates, call Riyadh Foundry (+966 11 498 4323); for two-piece cast iron tree grates, call Al Kharj United Company (+966 59 808 0527); for BS EN 124 D400 channel and gully gratings, call Saudi Cast (Riyadh, +966 11 448 0107); for GG20, GG25 and GGG50 grates in Al Khobar, Dammam or Jeddah, call Saudigrate (+966 50 196 4303).
Estimated price: about SAR 400–600 for a 420 x 420 mm D400 ductile iron gully grate.
7 suppliers · Riyadh · Al Kharj · Dammam · Al Khobar · Jeddah
Four suppliers focus on cast and ductile iron: Riyadh Foundry, Al Kharj United, Saudi Cast and Go AlQurashi, all in the Riyadh region. Saudigrate and Arabian Gratings are grating specialists that also supply iron grates and covers, and Reliance Steel (RSIC) makes hot-dip galvanised steel grating in Dammam for platforms and walkways. Tap a number to call, or scroll to each card for the address, hours and Google rating.
| Supplier | City | Iron grating offered | Google rating | Contact |
|---|---|---|---|---|
| Riyadh Foundry | Riyadh | Grey cast iron gully and channel grates, incl. 40-ton MC-450 HD | 4.1 (55) | +966 11 498 4323 |
| Al Kharj United | Riyadh / Al Kharj | Two-piece cast iron tree grates (UKC010); infrastructure castings | 4.4 (11) | +966 59 808 0527 |
| Saudi Cast | Riyadh | Grey and ductile iron channel and gully gratings to BS EN 124 | 4.4 (50) | +966 11 448 0107 |
| Go AlQurashi | Riyadh | Cast iron drainage gratings for roads, airports and commercial areas | No profile found | +966 53 054 9848 |
| Saudigrate | Al Khobar, Jeddah, Dammam, Riyadh | GG20/GG25 grey iron and GGG50 ductile iron gratings | 5.0 (7) Khobar | +966 50 196 4303 |
| Arabian Gratings | Jeddah; Dammam branch | Ductile iron access covers and step irons | 4.3 (6) | +966 12 647 3020 |
| Reliance Steel (RSIC) | Dammam | Hot-dip galvanised steel grating (not cast iron) | 3.8 (21) | +966 13 812 4949 |
Riyadh · Grey cast iron gully and channel grates
Riyadh Foundry is a cast iron foundry making drainage castings, including gully and channel grates in grey cast iron rated for set loads. Google reviewers also mention ductile iron fittings, manhole covers, valves and fire hydrants.
Products
| Detail | Information |
|---|---|
| Address | Riyadh 14332 |
| Phone | +966 11 498 4323 · +966 53 365 5520 |
| info@riyadhfoundry.com.sa | |
| Business type | Cast iron foundry (verified manufacturer on fyind) |
| Opening hours | Sunday to Thursday 8 am–4 pm; Saturday 10 am–3 pm; Friday closed |
| Google rating | 4.1 ★ (55 reviews) · Read reviews (Riyadh) |
| Industries served | Roads, stormwater and drainage networks, and commercial and industrial building projects. |
| Standards | Ask for the product datasheet with grade, dimensions and BS EN 124 class. |
| More | fyind profile |
“Good quality, very good support for sales department.” – Google reviewer
Note: Google also lists +966 11 266 4800. One reviewer says payment was taken before delivery dates were confirmed, so agree delivery terms in writing.
Questions to ask:
Riyadh office · Al Kharj foundry · Tree grates and infrastructure castings
Al Kharj United Company is a casting and forging foundry with its plant in MODON Al Kharj Industrial City. It makes infrastructure castings, alloy-steel parts and custom castings to drawing.
Products
| Detail | Information |
|---|---|
| Address | Office: Olaya, Riyadh 11322 (P.O. Box 225322); factory: MODON Al Kharj Industrial City |
| Phone | +966 59 808 0527 |
| Send Enquiry on fyind | |
| Business type | Casting and forging foundry (ISO-certified) |
| Opening hours | Saturday to Thursday 6 am–6 pm; Friday closed |
| Google rating | 4.4 ★ (11 reviews) · Read reviews (Al Kharj) |
| Industries served | Infrastructure and construction, industrial manufacturing and engineering projects. |
| Standards | Describes itself as an ISO-certified foundry; ask for current certificates and the product standard. |
| More | fyind profile |
“Respectable factory.” – Google reviewer
Note: One reviewer could not reach the company by phone, so email or use the fyind enquiry if calls go unanswered.
Questions to ask:
Riyadh First Industrial City · Grey and ductile iron drainage castings
Saudi Cast is an iron and steel foundry in Riyadh making drainage and access products, including grey and ductile iron channel and gully gratings in several designs and load classes.
Products
| Detail | Information |
|---|---|
| Address | Street 13, First Industrial City, P.O. Box 3505, Riyadh 11481 |
| Phone | +966 11 448 0107 |
| info@saudicast.com | |
| Business type | Iron and steel foundry |
| Opening hours | Sunday to Thursday 8 am–5 pm; Friday and Saturday closed |
| Google rating | 4.4 ★ (50 reviews) · Read reviews (Riyadh) |
| Industries served | Roads and highways, commercial buildings and car parks, industrial sites and municipal drainage. |
| Standards | Its catalogue gives BS EN 124 load classes per model, with D400 channel grates for vehicle areas. |
“Best quality products at committed delivery time.” – Google reviewer
Note: Google reviews are mixed on quotation speed and delivery times, so ask for lead times in writing.
Questions to ask:
Riyadh (Al Arid) · Cast iron drainage gratings · Infiniferro group
Go AlQurashi supplies cast iron drainage gratings in Saudi Arabia and is linked with the Infiniferro group. Its grates let surface water into drainage channels while keeping out debris.
Products
| Detail | Information |
|---|---|
| Address | 7406 King Abdul Aziz Road, 5108 Al Arid District, Riyadh |
| Phone | +966 53 054 9848 |
| sales@goalqurashi.com | |
| Business type | Cast iron drainage supplier (Infiniferro group) |
| Industries served | Roads and transport, airports, large commercial developments and municipal drainage. |
| Standards | Confirm the BS EN 124 class, grade and certificate for each model. |
Note: We could not find a Google Business Profile, so there is no rating or published hours.
Questions to ask:
Al Khobar · Jeddah · Dammam · Riyadh · Iron, steel, stainless and FRP grating
Saudigrate supplies grating, drainage and access products, with offices in Al Khobar and Jeddah. Its iron range covers grey cast iron in GG20 and GG25 and ductile iron in GGG50.
Products
| Detail | Information |
|---|---|
| Address | Al Khobar: Office 303, 3rd Floor, King Abdulaziz Street, Al Khobar Al Shamaliyah 34427; Jeddah: Office 10, Al Imam Abdul Aziz Street, Al Faisaliyyah 23441 |
| Phone | +966 50 196 4303 |
| info@saudigrate.com | |
| Business type | Grating manufacturer and supplier (verified on fyind) |
| Opening hours | Sunday to Thursday 8 am–6 pm; Friday and Saturday closed |
| Google rating | 5.0 ★ (7 reviews, Al Khobar) · 5.0 ★ (17 reviews, Jeddah) · Read reviews (Al Khobar) · Read reviews (Jeddah) |
| Industries served | Oil and gas, power and desalination, water and wastewater, airports, marine and shipbuilding, cement, sugar and infrastructure. |
| Standards | States that its grey and ductile iron products are made to BS EN 124. |
| More | fyind profile |
“Competitive pricing, quality products and good workmanship.” – Google reviewer
Note: This is the closest iron grating supplier on this page for Al Khobar and Dhahran buyers.
Questions to ask:
Jeddah · Dammam branch · Steel grating with ductile iron covers
Arabian Gratings is an ISO 9001:2015 maker of industrial grating and access systems. Alongside steel, aluminium, stainless and FRP grating, it lists ductile iron access covers and step irons.
Products
| Detail | Information |
|---|---|
| Address | Othman Ibn Affan Road, Jeddah 22234; branch in Dammam |
| Phone | +966 12 647 3020 |
| sales@arabiangratings.com | |
| Business type | Grating manufacturer (ISO 9001:2015) |
| Opening hours | Sunday to Thursday 8:30 am–6 pm; Saturday 9 am–5 pm; Friday closed |
| Google rating | 4.3 ★ (6 reviews) · Read reviews (Jeddah) |
| Industries served | Oil and gas, industrial plants, water and desalination, marine and offshore, infrastructure. |
| Standards | ISO 9001:2015; references BS EN ISO 1461 galvanising and ASTM A36 steel. |
| More | fyind profile |
“The material quality of the gratings was excellent.” – Google reviewer
Questions to ask:
Dammam 2nd Industrial City · Galvanised steel grating since 1982
Reliance Steel Industries Company started in 1982 as Dammam Wire Mesh Coating & Wires Factory. It makes and galvanises steel grating; it does not list cast iron grates, but suits buyers searching for steel and iron grating together.
Products
| Detail | Information |
|---|---|
| Address | 27 Street, Dammam 2nd Industrial City, P.O. Box 1586, Dammam 31441 |
| Phone | +966 13 812 4949 |
| info@saudireliance.com | |
| Business type | Steel grating maker and galvaniser (ISO 9001:2015, ISO 45001:2018) |
| Opening hours | Saturday to Thursday 7 am–5 pm; Friday closed |
| Google rating | 3.8 ★ (21 reviews, galvanizing factory) · Read reviews (Dammam) |
| Industries served | Oil and gas and petrochemicals, water and power, industrial plants, commercial buildings. |
| Standards | ISO 9001:2015 and ISO 45001:2018. A Google reviewer describes it as Aramco-approved; confirm on your project. |
“Best Galvanizer And Steel Grating Manufacturer in Region.” – Google reviewer
Note: Google reviews of the galvanizing factory are mixed on turnaround times.
Questions to ask:
Cast iron grates come in fixed cast sizes rather than cut panels. Channel grates usually run 100–500 mm wide and 500 mm or 1,000 mm long, with thicknesses of about 20–40 mm for light duty and deeper ribbed sections for heavy duty. Gully grates are commonly 300 x 300, 420 x 420 and 600 x 600 mm. On fyind, Riyadh Foundry lists a 40-ton channel grate 140 mm deep with a 450 mm opening, and Al Kharj United lists a 1,200 mm two-piece tree grate 25 mm deep.
| Product | Typical sizes | Typical thickness / depth | Listed by |
|---|---|---|---|
| Channel grate | 100–500 mm wide, 500 or 1,000 mm long | 20–40 mm (light); deeper ribs for D400 | Saudi Cast, Go AlQurashi, Saudigrate |
| Gully grate | 300 x 300, 420 x 420, 600 x 600 mm | 75–150 mm with frame | Riyadh Foundry, Saudi Cast, Saudigrate |
| Tree grate | 1,000–1,500 mm square | 20–40 mm | Al Kharj United |
Sizes and loads vary by model; always check the datasheet for the exact grate.
A 600 x 600 mm ductile iron grating is one of the most common inlet and access sizes in Saudi road and site drainage. It is used over road gullies and catch basins, at car park and petrol station inlets, in loading yards, at airport aprons and service roads, and over inspection chambers in industrial plants. Ductile iron (GGG50) bends slightly instead of cracking under impact, so it suits traffic areas. Choose class D400 for roads and yards and C250 for kerb sides. Saudigrate, Saudi Cast and Arabian Gratings list ductile iron grates and covers.
| Where | Typical class |
|---|---|
| Footpaths and pedestrian areas | B125 |
| Kerb sides and car park edges | C250 |
| Roads, yards and petrol stations | D400 |
| Docks and airport pavements | E600 / F900 |
13 products · Features · Where to use · Suppliers
Iron gratings in Saudi Arabia range from light grey iron channel grates to 40-ton ductile road grates and tree grates. Each product below explains what it is, its main features, where it is used in KSA and which suppliers on this page offer it, with tap-to-call numbers. Load classes follow BS EN 124: C250 for kerb sides and car parks, D400 for roads and yards.
Thick, deep-ribbed grey iron grates made to carry traffic over channels and gullies. Grey iron is strong when pressed down on, so heavy-duty sections handle steady wheel loads well, though ductile iron is better where impacts are frequent. Where it is used in KSA: Industrial yards, car parks, service roads and loading areas in Riyadh, Al Kharj and the industrial cities. Before ordering, give the supplier the heaviest wheel that will cross, the channel width and whether trucks brake or turn on the grate, because turning wheels put far more strain on grey iron than straight traffic does.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Riyadh Foundry | MC-450 HD heavy-duty grey cast iron grate, 40 ton | +966 11 498 4323 |
| Saudi Cast | Heavy-duty models for higher vehicle loads | +966 11 448 0107 |
Standard drainage grates cast in grey iron grades GG20 (EN-GJL-200) and GG25 (EN-GJL-250). They are the most economical iron grates and come in many channel and gully sizes. Where it is used in KSA: Footpaths, building surrounds, kerb sides, parks and light-traffic channels across KSA. GG25 is a little stronger than GG20 for about the same price, so it is the usual pick for kerb sides. For anything with regular vehicle traffic, step up to ductile iron instead, because grey iron can crack under repeated impact.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Saudigrate | Channel and gully grates in GG20 and GG25 | +966 50 196 4303 |
| Riyadh Foundry | Grey cast iron gully and channel grates | +966 11 498 4323 |
| Saudi Cast | Grey iron channel and gully gratings | +966 11 448 0107 |
Grates cast in ductile iron GGG50 (EN-GJS-500-7), which bends slightly instead of cracking. It has about twice the tensile strength of grey iron, so it is the safe choice where wheels hit the grate. Where it is used in KSA: Roads, petrol stations, ports, airport service roads and Aramco or municipal projects that specify D400 or above. Ductile grates cost more than grey iron, but they last longer under traffic and rarely break, which means fewer road closures for repairs. Ask for the BS EN 124 class and a test certificate for the exact size you order.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Saudigrate | GGG50 ductile iron gratings | +966 50 196 4303 |
| Saudi Cast | Ductile iron channel and gully gratings | +966 11 448 0107 |
| Arabian Gratings | Ductile iron access covers | +966 12 647 3020 |
Iron grates that sit over open trench drains to catch surface water across a wide area. They are laid in a continuous run, so every piece must carry the same load class. Where it is used in KSA: Loading bays, warehouse entrances, car park ramps, factory floors and petrol station forecourts. Order grates and frames from the same supplier so every piece fits the channel. Choose a slot pattern that suits the site: narrow slots where people walk in heels or push trolleys, wider slots where large volumes of rainwater must drain quickly.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Saudi Cast | Channel gratings with frames and modular channels | +966 11 448 0107 |
| Go AlQurashi | Cast iron gratings for channels and trenches | +966 53 054 9848 |
| Saudigrate | Grey and ductile iron trench grates | +966 50 196 4303 |
Slotted iron grates sized to fit a specific drainage channel width, usually 100–500 mm, in 500 mm or 1,000 mm lengths. They lock into the channel edge or a matching frame. Where it is used in KSA: Pedestrian streets, malls, plazas, building perimeters, roads and yards. Send the channel make and width with your enquiry, since grates from one system rarely fit another. Ask whether the grates lock into the channel, because loose grates rattle under traffic and can be stolen.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Saudi Cast | Slotted channel gratings and frames | +966 11 448 0107 |
| Riyadh Foundry | MC-450 HD channel grate, 450 mm opening | +966 11 498 4323 |
| Saudigrate | Channel grates in GG20, GG25 and GGG50 | +966 50 196 4303 |
Square or rectangular grates that cover a gully pot or catch basin, where surface water drops into the drain. Common sizes are 300 x 300, 420 x 420 and 600 x 600 mm, often hinged to the frame. Where it is used in KSA: Road edges, car parks, courtyards, villa compounds and industrial yards. Hinged gully grates stay attached to their frame when opened for cleaning, which stops them being lost or stolen. In sandy areas, choose a grate with a larger open area so blown sand does not block the inlet before the rainy season.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Riyadh Foundry | Grey cast iron gully gratings | +966 11 498 4323 |
| Saudi Cast | Gully gratings for surface-water inlets | +966 11 448 0107 |
| Al Kharj United | Gully grates with black epoxy or bitumen coating | +966 59 808 0527 |
| Saudigrate | Gully grates and kerb gullies | +966 50 196 4303 |
Iron units set into the kerb line so road water enters the drain through the side of the kerb as well as the top grate. They take more water during heavy rain without blocking. Where it is used in KSA: City streets, highways, residential roads and roundabouts where flash floods are a risk. Kerb inlets help Saudi roads clear water quickly during the short, heavy winter storms that cause flash flooding. Confirm the kerb height and profile with the supplier so the unit lines up with the existing kerb stones.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Saudigrate | Kerb gullies | +966 50 196 4303 |
| Saudi Cast | Gully and inlet castings; confirm kerb-inlet models | +966 11 448 0107 |
Heavy-duty grates for carriageways, rated D400 (40 t) or higher, that carry fast traffic while draining the road. They must be locked into their frames so traffic cannot lift or rattle them. Where it is used in KSA: Highways, city roads, bridges, tunnels, airport service roads and petrol stations. Roads need grates that sit flush with the surface and stay locked down, so order matched frames and fit them in concrete. For airport aprons, ask for class E600 or F900, which carry far heavier wheel loads than ordinary roads.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Go AlQurashi | Road and airport drainage gratings | +966 53 054 9848 |
| Saudi Cast | D400 heavy-duty channel gratings | +966 11 448 0107 |
| Riyadh Foundry | 40-ton channel grate | +966 11 498 4323 |
Grates for stormwater networks that collect rain and flash-flood water and send it to the drains. In Saudi cities they must handle sudden heavy flows and the sand that comes with them. Where it is used in KSA: Municipal stormwater projects in Riyadh, Jeddah and Dammam, new districts, parks and large developments. Plan regular cleaning after sandstorms, because a blocked grate floods the road even when the pipe below is clear. Large municipal jobs often need approved-vendor status, so check this with the supplier before you tender.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Riyadh Foundry | Grates for drainage and stormwater systems | +966 11 498 4323 |
| Saudi Cast | Municipal drainage castings | +966 11 448 0107 |
| Go AlQurashi | Drainage gratings for municipal projects | +966 53 054 9848 |
Round grates that sit in circular frames, used over round chambers, floor drains and tree pits. None of the suppliers here lists a circular grate as a stock item, so treat it as a made-to-order casting. Where it is used in KSA: Round inspection chambers, plaza drains, roof and floor drains and decorative landscaping. Send the frame diameter, load class and slot pattern, and ask about the cost of a new casting pattern, which is usually charged once on the first order. Lead times are longer than for stock grates, so order early.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Al Kharj United | Custom castings to drawing | +966 59 808 0527 |
| Riyadh Foundry | Special castings to standard specifications | +966 11 498 4323 |
| Saudi Cast | Manhole covers and frames; ask about circular grates | +966 11 448 0107 |
Grates fitted with locking bolts, clips or hinges that hold them in the frame. They stop theft, stop traffic from lifting or rattling the grate, and stop unauthorised access to drains. None of the suppliers lists a lockable range by name, so ask for locking as an option. Where it is used in KSA: Public streets, airports, petrol stations, plants and anywhere grates have gone missing. Locking adds a small cost per grate but saves money where theft or rattling is a problem. Ask the supplier which locking method fits its frames, and keep the special keys or tools with the maintenance team.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Saudi Cast | Channel gratings and frames; ask about locking | +966 11 448 0107 |
| Saudigrate | Grates with clamps and fixings | +966 50 196 4303 |
| Al Kharj United | Two-piece tree grates bolted together | +966 59 808 0527 |

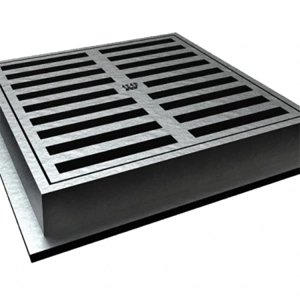

Riyadh Foundry's fyind-listed channel grate, cast in grey iron and rated 40 ton, which matches the D400 test load for roads and yards. See the MC-450 HD product page on fyind. Where it is used in KSA: Road and yard channels, industrial access roads and loading areas. Its 40-ton rating suits roads and yards with trucks, and grey iron keeps the price lower than an equivalent ductile grate. Ask Riyadh Foundry for the matching frame, the test standard behind the 40-ton rating and the current lead time before ordering.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Riyadh Foundry | MC-450 HD, 40 ton | +966 11 498 4323 |
Al Kharj United Company's fyind-listed two-piece cast iron tree grate, bolted together so it fits around an existing trunk. See the UKC010 product page on fyind. Where it is used in KSA: Pavements, plazas, parks, malls and parking areas with street trees. Being rated 25 ton, it can take occasional cars as well as people. Two bolted halves let installers fit it around an established trunk without disturbing the roots. Ask about anti-theft bolts, coating and custom openings for larger trunks.
Features
| Supplier | What they offer | Contact |
|---|---|---|
| Al Kharj United | Tree Grates UKC010 | +966 59 808 0527 |
fyind listings · Riyadh Foundry · Al Kharj United
On fyind KSA, two foundries list iron grating products: Riyadh Foundry, a verified manufacturer, lists a 40-ton grey cast iron channel grate, and Al Kharj United lists a two-piece cast iron tree grate. Saudigrate also has a fyind profile and supplies grey and ductile iron grates, while Saudi Cast, Go AlQurashi and Arabian Gratings can be contacted directly. The answers below cover which to choose, what each product is, and how iron grating is used, fitted, maintained and priced in KSA.
Choose by the product and load you need, not by name. For road and yard channel grates rated 40 ton, start with Riyadh Foundry. For street tree grates, call Al Kharj United. For a wide range of BS EN 124 channel and gully gratings with frames, call Saudi Cast. For GG20, GG25 and GGG50 grates near Al Khobar, Dammam or Jeddah, call Saudigrate. For road and airport drainage gratings, call Go AlQurashi. If you also need steel grating on the same job, Saudigrate, Arabian Gratings or Reliance Steel (RSIC) can supply both.
Choose Riyadh Foundry if you need the Heavy Duty Gray Cast Iron Grate, MC-450 HD, rated 40 ton, from a verified manufacturer. Call +966 11 498 4323.
Choose Al Kharj United Company if you need Tree Grates UKC010, two pieces, 25 ton. Call +966 59 808 0527.
Choose Saudi Cast or Go AlQurashi if you need D400 channel grates for roads, car parks or airports. Call +966 11 448 0107 or +966 53 054 9848.
Two iron grating products are listed on fyind KSA. Riyadh Foundry lists the Heavy Duty Gray Cast Iron Grate, MC-450 HD: a channel grate rated 40 ton, 140 mm deep, with a 450 mm clear opening and 650 mm over base. Al Kharj United lists Tree Grates UKC010: two pieces bolted together, 1,200 mm over base, 600 mm clear opening, 25 mm deep and rated 25 ton. Other suppliers on this page offer more sizes, so send your channel or chamber size when you ask.
| Product | Supplier | Load | Clear opening | Over base | Depth | Notes |
|---|---|---|---|---|---|---|
| Heavy Duty Gray Cast Iron Grate, MC-450 HD | Riyadh Foundry | 40 ton | 450 mm | 650 mm | 140 mm | Iron grating channel |
| Tree Grates UKC010 | Al Kharj United | 25 ton | 600 mm | 1,200 mm | 25 mm | Two pieces bolted together |
Taken from each supplier's fyind product card. The cards show a price of 0, so ask for a quote.
A tree grate is made in two halves so it can be fitted around a trunk that is already in the ground, without lifting the tree. The halves are bolted together, and later they can be unbolted to cut a bigger opening or swap in a grate with a wider centre as the trunk grows. Two lighter pieces are also easier to carry and lay than one heavy casting. Al Kharj United's UKC010 tree grate is made this way. For public streets, ask for anti-theft bolts and a coated finish.
40 ton · Roads · Ports · Loading bays
Short answer: Riyadh Foundry lists Heavy Duty Gray Cast Iron Grate, MC-450 HD, 40 ton on fyind KSA, which is the kind of iron grating used for roads and heavy traffic.
| Supplier | Product they list | Card specifications |
|---|---|---|
| Riyadh Foundry | Heavy Duty Gray Cast Iron Grate, MC-450 HD, 40 ton | Type: iron grating channel · Load 40 ton · Depth 140 mm · Clear opening 450, over base 650 mm |
| Al Kharj United Company | Tree Grates UKC010 25 mm | Capacity 25 ton · Depth 25 mm · Clear opening 600 mm, over base 1,200 mm · Two pieces bolted together |
Choose it if: Choose ductile iron for road gullies, and deep welded steel grating for wide trenches in yards and ports.
Check before you order: Give the supplier the axle or wheel load, the clear span and the traffic type. A 40-ton rating on one product does not mean every size carries the same load. This is general guidance; your engineer should confirm it for the site. You can also explore different grating suppliers and compare types on the FYIND grating suppliers.
Tree grates · Streetscape · Landscaping
Short answer: Al Kharj United Company lists Tree Grates UKC010 25 mm on fyind KSA, which is the kind of iron grating used for streets and landscaping.
| Supplier | Product they list | Card specifications |
|---|---|---|
| Al Kharj United Company | Tree Grates UKC010 25 mm | Capacity 25 ton · Depth 25 mm · Clear opening 600 mm, over base 1,200 mm · Two pieces bolted together |
Choose it if: Choose a cast tree grate rated for vehicles where cars can park over it.
Check before you order: Two-piece tree grates can be opened as the trunk grows. Ask about coating and anti-theft bolts for public areas. This is general guidance; your engineer should confirm it for the site. You can also explore different grating suppliers and compare types on the FYIND grating suppliers.
Trench drains · Floor channels · Pool edges · Car parks
Short answer: Riyadh Foundry lists Heavy Duty Gray Cast Iron Grate, MC-450 HD, 40 ton on fyind KSA, which is the kind of iron grating used for trench drains and channels.
| Supplier | Product they list | Card specifications |
|---|---|---|
| Riyadh Foundry | Heavy Duty Gray Cast Iron Grate, MC-450 HD, 40 ton | Type: iron grating channel · Load 40 ton · Depth 140 mm · Clear opening 450, over base 650 mm |
Choose it if: Choose cast or ductile iron where vehicles cross the drain, and stainless steel where the floor is tiled or hygiene matters.
Check before you order: Match the grating to the channel width and to the heaviest wheel that can cross it. Stainless pass thru gratings suit tiled floors and pool edges; cast iron suits roads and yards. This is general guidance; your engineer should confirm it for the site. You can also explore different grating suppliers and compare types on the FYIND grating suppliers.
Cast and ductile iron handle Saudi heat well, but sand, flash floods and salt air decide how long a grate keeps working. Bare iron rusts on the surface, especially near the coast, so a black bitumen or epoxy coating helps. Blown sand and debris block slots and channels, so plan cleaning. During rare heavy rains, blocked grates cause flooding, so check them before the rainy season. The tips below cover the main site issues and approvals for roads, plants and public areas.
KSA tip – Heat: Iron grates in full sun get very hot, but their strength is not affected. Avoid bare-skin contact in summer.
KSA tip – Sand and flash floods: Blown sand fills slots and channels. Clear grates before winter rains so water can drain.
KSA tip – Coastal air: At Jeddah, Dammam, Al Khobar and Jubail, salt air rusts bare iron faster. Ask for a bitumen or epoxy coating and recoat when it wears.
KSA tip – Approvals: Municipal, airport and Aramco projects may require approved vendors and BS EN 124 certificates. Check before ordering.
KSA tip – Summer midday work ban: Outdoor work is restricted around midday in summer, usually from 15 June to 15 September. Check each year's dates and plan installation for mornings.
Iron grates sit in a cast frame that is bedded in concrete or fixed to the channel edge, so the frame takes the traffic load into the ground. If the frame is loose or badly bedded, the grate rocks, makes noise and eventually cracks. Installation is normally done by your civil contractor. Follow the steps below, and use the frame and locking parts supplied with the grate, so the grate stays flush and secure under traffic. Most foundries can also advise on bedding depth for each load class.
Safety: barrier off open channels and chambers during installation. This is general guidance; a qualified engineer should confirm the load class and bedding.
Iron is the standard for road and yard drainage, but other materials sometimes fit better. Galvanised steel grating suits wide trenches and fabricated sizes, stainless steel suits tiled and hygienic floors, and resin or composite grates suit light pedestrian areas. Compare the load, look and cost before you decide. Reliance Steel (RSIC) and Arabian Gratings supply steel grating if iron is not the right fit, and Saudigrate can quote both iron and steel on one order. Choose iron where vehicles cross small drains and chambers.
| Alternative | Choose it if | Watch out for |
|---|---|---|
| Galvanised steel grating | Wide spans, fabricated sizes | Needs good galvanising |
| Stainless steel grating | Tiled floors, food areas, pools | Higher price |
| Composite or resin grates | Pedestrian-only plazas | Not for vehicles |
Iron grates need little care, but blocked slots and loose frames cause most problems. Clear sand and debris regularly, especially before winter rains, and check that grates sit flat and do not rattle under traffic. Recoat surface rust near the coast. Replace any cracked grate straight away, because a broken grate in a road is a serious hazard. The table lists the common problems, their usual causes and the fix for each. Keep a few spare grates for busy roads and yards.
| Symptom | Likely cause | Fix |
|---|---|---|
| Grate rocks or rattles | Loose frame or worn seating | Re-bed the frame; fit a new grate or locking |
| Grate cracked | Grey iron under heavy traffic, or overload | Replace with ductile iron in the right class |
| Water ponds over the grate | Slots blocked with sand | Clear slots and channel; plan cleaning |
| Surface rust | Coating worn, salt air | Clean and recoat with bitumen or epoxy |
| Grate stolen or lifted | No locking | Fit locking or bolted grates |
Have these answers ready before you call. Giving the load class, size and frame up front gets you an exact quote and avoids grates that do not fit or crack early. Send the channel or chamber drawing with your enquiry, and confirm whether the job needs approved-vendor status or test certificates. The table after the list shows common mistakes and how to avoid them on your order. A complete brief usually gets a firm quote in one reply, which saves days on a busy project.
| Mistake | What happens | Do this instead |
|---|---|---|
| Assuming every size carries 40 ton | Smaller grates may be rated lower | Ask for the class of the exact size |
| Using grey iron on roads | Grates crack under traffic | Use ductile iron D400 |
| Ordering grates without frames | Grates do not seat properly | Order matched grate and frame |
Iron grating is priced per piece or per metre, not per square metre. As a guide, a grey iron channel grate costs about SAR 250–450 per metre, a 420 x 420 mm D400 ductile gully grate about SAR 400–600, and a 600 x 600 mm D400 grate with frame about SAR 1,200–1,800, before 15% VAT. The suppliers do not publish prices and the fyind cards show 0, so send your size, class and quantity for a quote. The full price breakdown is in the price section below.
Yes. Cast iron tree grates protect the soil around street trees from foot traffic while letting water and air reach the roots, and they handle sun, sand and heavy use better than most materials. They suit pavements, plazas, malls, hotel entrances and car parks. Al Kharj United's UKC010 tree grate is rated 25 ton, so it can take occasional vehicles. Choose a coated finish against rust, anti-theft bolts in public areas, and a slot pattern that is safe for heels and wheelchairs.
Grey iron vs ductile iron · Load class · Size and frame · Traffic
Choose in four steps: the iron grade, the load class, the size and frame, and whether vehicles will cross. Getting these right stops grates cracking, rocking or failing under traffic.
Grey iron (GG20 or GG25, now written EN-GJL-200 or EN-GJL-250) is strong in compression, casts well and costs less, but it is brittle and can crack under sudden impact. Ductile iron (GGG50, or EN-GJS-500-7) has round graphite nodules that let it bend slightly before breaking, giving roughly twice the tensile strength. Use grey iron for footpaths, kerb sides and static loads, and ductile iron for roads, yards and anywhere heavy wheels hit the grate. Saudigrate offers all three grades, so you can mix them on one order.
| Grade | Tensile strength | Behaviour | Best for |
|---|---|---|---|
| GG20 (EN-GJL-200) | About 200 MPa | Brittle | Light drainage, footpaths |
| GG25 (EN-GJL-250) | About 250 MPa | Brittle | Channels, kerb sides, static loads |
| GGG50 (EN-GJS-500-7) | About 500 MPa | Bends before breaking | Roads, yards, heavy traffic |
Check the BS EN 124 class, which states the test load the grate must carry. B125 (12.5 t) suits footpaths, C250 (25 t) kerb sides and car parks, D400 (40 t) roads and yards, E600 (60 t) docks and forklift areas, and F900 (90 t) airport aprons. Ask for the class of the exact size you are buying, because a 40-ton rating on one model does not apply to every size. Riyadh Foundry's MC-450 HD is listed at 40 ton, and Saudi Cast lists D400 channel grates.
| Class | Test load | Use |
|---|---|---|
| A15 | 1.5 t | Pedestrians and cyclists |
| B125 | 12.5 t | Footpaths, car parks for cars |
| C250 | 25 t | Kerb sides, car parks |
| D400 | 40 t | Roads, yards, petrol stations |
| E600 | 60 t | Docks, forklift and heavy industrial areas |
| F900 | 90 t | Airport aprons and runways |
Start from the channel or chamber: the clear opening must match the channel width, and the frame must suit the channel edge or chamber wall. Then pick a thickness and depth that match the load class; heavier classes use deeper ribs and thicker frames. Choose slot width for the site: narrow slots (under 13 mm) for areas with heels or bicycles, wider slots for fast water flow. Make sure the grate is locked or bolted into its frame so traffic cannot lift it. Send the channel drawing to Saudi Cast, Riyadh Foundry or Saudigrate.
For roads, petrol stations and yards, use ductile iron GGG50 grates rated at least D400, locked into a ductile frame bedded in concrete. For docks and forklift areas, use E600, and for airport aprons and taxiways, F900. Heavy-duty trench drains in these areas need the same class across the whole channel run. Grey iron is fine for pedestrian areas but can crack under repeated wheel loads. Saudi Cast lists D400 channel grates, Riyadh Foundry lists a 40-ton channel grate and Go AlQurashi supplies road and airport drainage gratings.
As a guide, a grey cast iron channel grate (about 200–300 mm wide, C250) costs about SAR 250–450 per metre, a 420 x 420 mm ductile iron gully grate in D400 about SAR 400–600, and a 600 x 600 mm D400 ductile grate with frame about SAR 1,200–1,800. Prices rise with ductile iron over grey iron, larger and deeper sections, higher load classes (E600 and F900), frames and locking, and coating. Add 15% VAT. Local foundries may quote lower than these references, so ask Riyadh Foundry, Saudi Cast or Saudigrate for a written price.
| Grate | Estimated price before VAT |
|---|---|
| Grey iron channel grate, C250 | SAR 250–450 per metre |
| Ductile iron gully grate 420 x 420 mm, D400 | SAR 400–600 |
| Ductile iron grate 600 x 600 mm, D400, with frame | SAR 1,200–1,800 |
Estimates for Nov 2026 based on current UK retail prices converted to SAR. Saudi foundry prices may differ.
Worked example · Truck loading yard · Riyadh
Here is a typical job laid out step by step, so you can follow the same route on your own site. A contractor is building a warehouse yard in Riyadh where loaded trucks turn, reverse and park all day. Rainwater has to run into a covered channel across the yard, and the grates on top must take heavy wheels without rocking, cracking or lifting. The channel is 450 mm wide inside. This is an illustrative example built from a real product card on FYIND, not a customer story, and the figures are only to show how the choice is made.
| Step | What the buyer does | In this job |
|---|---|---|
| 1. Set the load | Works out the heaviest wheel that will cross the drain | Loaded trucks turning, so a 40-ton rated grate in the D400 range or higher |
| 2. Measure the channel | Records the clear opening and the width the grate sits on | 450 mm clear opening, about 650 mm over the base |
| 3. Match a product | Finds a listed grate that fits both the load and the size | Riyadh Foundry MC-450 HD, 40 ton, 140 mm deep |
| 4. Ask before ordering | Requests the load class, test certificate, frame and delivery date | BS EN 124 class in writing, frame included, lead time to the Riyadh site |
| 5. Fit and check | Beds the frame level in concrete and seats each grate | No rocking, top flush with the yard surface, joints clear of sand |
Before ordering: Check the distance between supports, the channel width and the heaviest wheel load, because these decide the grate depth and class. Your site engineer can confirm the choice suits the yard. Need to find the right supplier? Explore the grating suppliers listed on FYIND.
Both are iron castings, but the carbon inside takes a different shape. In grey cast iron (GG20, GG25) the carbon forms flakes, which make the iron strong in compression but brittle, so it can crack under sudden impact. In ductile iron (GGG50) the carbon forms small balls, so the iron can bend slightly before breaking and has about twice the tensile strength. Cast iron is cheaper and fine for footpaths and channels; ductile iron is the safer choice for roads, yards and heavy traffic.
For heavy-duty trench drains in roads, yards, petrol stations and loading bays, choose ductile iron GGG50 grates rated at least D400 under BS EN 124, locked into a matching frame bedded in concrete. For docks and forklift areas use E600, and for airport aprons use F900. Saudi Cast lists D400 channel grates, Riyadh Foundry lists a 40-ton channel grate, and Go AlQurashi supplies road and airport drainage gratings. Ask for the class of the exact size, with a test certificate, before ordering.
Most iron grating in Saudi Arabia is sold through the foundries and suppliers rather than an online shop, because grates must match the channel size, frame and load class. You can send an enquiry online through the fyind profiles of Riyadh Foundry, Al Kharj United Company and Saudigrate, or by email to Saudi Cast and Go AlQurashi. Al Kharj United Company lists the UKC010 two-piece cast iron tree grate. Cast iron grill grates for barbecues are a different product sold by home and outdoor stores.
FAQ
Grey cast iron grating is cast from grey iron, an iron with flakes of graphite inside that give its grey colour when broken. It is strong in compression, casts into detailed shapes and is cheaper than ductile iron, so it is widely used for channel grates, gully grates and drain covers. Common grades are GG20 and GG25 (EN-GJL-200 and 250). It is more brittle than ductile iron, so use it for footpaths, kerb sides and static loads. Riyadh Foundry and Saudigrate supply grey iron grates.
On fyind KSA, Riyadh Foundry lists the Heavy Duty Gray Cast Iron Grate, MC-450 HD, at 40 ton. It is a channel grate 140 mm deep with a 450 mm clear opening and 650 mm over base. Forty tonnes matches the BS EN 124 D400 test load used for roads and yards. Saudi Cast also lists D400 channel gratings. Ask the supplier which standard the 40-ton rating was tested to, and confirm the rating applies to the exact size you order.
A tree grate is a flat cast iron grid laid around the base of a street tree. It lets people walk over the root area without packing down the soil, while rain and irrigation water and air still reach the roots. It also stops litter and sand piling up around the trunk and gives pavements a neat finish. Tree grates are often made in two pieces so they can be fitted around an existing trunk. Al Kharj United Company lists the UKC010 tree grate on fyind KSA, rated 25 ton for pavements and parking areas.
Al Kharj United Company lists Tree Grates UKC010 on fyind KSA at 1,200 mm over base, with a 600 mm clear opening for the trunk and a depth of 25 mm. It is made in two pieces bolted together and is rated at 25 ton, so it can take occasional vehicles as well as foot traffic. If your tree pit is a different size or the trunk is larger, ask whether the foundry can cast a custom size. Call +966 59 808 0527 or use its fyind profile.
Cast and ductile iron grates are usually supplied with a black bitumen or epoxy coating. It protects against surface rust in storage and in the first years of use, and gives a neat finish. Near the coast in Jeddah, Dammam, Al Khobar and Jubail, salt air rusts bare iron faster, so a good coating matters more. Al Kharj United Company lists black epoxy or bitumen as options on its gully grates. Recoat worn grates during routine maintenance to keep them working longer and looking neat.
Riyadh Foundry and Al Kharj United Company list iron grating products on fyind KSA: the 40-ton MC-450 HD channel grate and the UKC010 two-piece tree grate. Saudigrate also has a fyind profile and supplies GG20, GG25 and GGG50 iron gratings. Saudi Cast, Go AlQurashi, Arabian Gratings and Reliance Steel Industries can be contacted directly. Each supplier on this page has a card with its address, phone, email, opening hours, Google rating and products, plus the questions to ask when you call.
No. The fyind product cards show a price of 0, and none of the suppliers publish price lists, because the price depends on the iron grade, size, load class, frame, coating and quantity. As a guide, a 420 x 420 mm D400 ductile gully grate costs about SAR 400–600 and a 600 x 600 mm D400 grate with frame about SAR 1,200–1,800, before 15% VAT. Send your specification with an enquiry to get an exact written quote, including delivery and VAT.
Use the Send Enquiry button on the supplier's fyind profile, for example Riyadh Foundry, and attach your drawing or sizes. You can also call: Riyadh Foundry on +966 11 498 4323, Al Kharj United Company on +966 59 808 0527, Saudi Cast on +966 11 448 0107, Go AlQurashi on +966 53 054 9848 or Saudigrate on +966 50 196 4303. Include the iron grade, load class, size, frame, coating, quantity and delivery city so the first reply is a usable quote.
Grating types · Hub
Apart from Iron Grating, you can explore other grating categories available from Assaf Industry Company and other suppliers in KSA. Visit the grating hub to compare all 18 grating categories and find suitable options for your requirements.
Find Suppliers for Different Types of Grating
