Pinion Gear Suppliers in Saudi Arabia

Pinion Gear Suppliers in Saudi Arabia

Pinion gears in Saudi Arabia are essential components in industrial machinery and motion control systems.

They are used in petrochemical plants, cement factories, CNC fabrication units, construction cranes, mining conveyors, and automation systems across Riyadh, Dammam, Jubail, Jeddah, and other industrial cities.

Pinion gears play a critical role in transmitting motion and torque within gearboxes, rack and pinion assemblies, and heavy-duty drive systems.

Reliable pinion gear supply ensures smooth machine operation, reduced downtime, and extended equipment life.

Industrial suppliers provide a wide range of products such as spur pinions, helical pinions, bevel pinions, worm pinion sets, and complete rack and pinion systems.

Many suppliers also support bulk procurement, custom manufacturing, and export documentation for large industrial and oil & gas projects.

Pinion gears are among the most widely used yet frequently mis-specified power transmission components in Saudi Arabia.

In CNC machines, crane drives, conveyor systems, and industrial gear assemblies, failures rarely occur because of design alone.

They occur because buyers are not properly guided on module selection, material grade, heat treatment, bore tolerance, and matching rack or gear specifications.

The pinion is the smaller of two mating gears.

It is the driving element, attached to the motor shaft, it turns the larger gear or moves the rack linearly.

When it wears, the entire drive suffers.

When it fails, the machine stops.

Top Pinion Gear Suppliers in Saudi Arabia

For Aramco and SABIC projects requiring local vendor documentation

Alruqee (+966 13 847 0664) holds active Aramco vendor registration — essential for oil and gas project procurement compliance.

Pinion Gear Manufacturer in Saudi Arabia

The manufacturers with the strongest supply record to Saudi Arabia are:

Rack and Pinion Gear Suppliers KSA

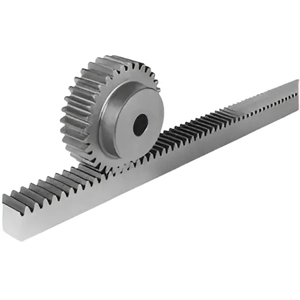

A rack and pinion system requires two matched components:

The rack — the straight linear bar with teeth.

The pinion — the small round gear that meshes with the rack.

Both must be the same module and pressure angle.

They must be designed as a matched pair.

Suppliers for complete rack and pinion gear sets in KSA:

Industrial Gear Suppliers in Saudi Arabia

For the full range of industrial gears, spur, helical, bevel, worm, internal, rack and pinion in Saudi Arabia:

Gear Manufacturing Companies in Saudi Arabia

International gear manufacturers serving Saudi Arabia's industrial market:

Rack and Pinion Suppliers in Saudi Arabia

In-Kingdom suppliers with local stock:

Alruqee Industrial Marketing — +966 13 847 0664 | Al Khobar

Machine Innovation Co. — +966 12 676 1574 | Jeddah

Al Wasat Al Badeel — Prince Mohammed Street, Dammam

Direct export from manufacturer:

Asar Engineering — +91 77384 13474 | India

P R Components — India

Coverage by city:

Dammam: Alruqee, Al Wasat Al Badeel

Al Khobar: Alruqee head office — +966 13 847 0664

Jubail: Alruqee Jubail branch | Al Wasat Al Badeel Jubail branch

Riyadh: Alruqee Riyadh branch

Jeddah: Machine Innovation Co. (+966 12 676 1574) | Alruqee Jeddah branch

Yanbu: Alruqee Yanbu branch

For non-stock or custom rack and pinion: direct export from Asar Engineering (+91 77384 13474) — sea freight to Dammam or Jeddah in 12–18 days.

Helical Gear Manufacturers in Dammam

There are no helical gear manufacturers in Dammam or anywhere in Saudi Arabia.

Helical gears for the Dammam market are imported primarily from India, Japan, and Germany.

For helical gear supply to Dammam:

Precision Pinion Gear Supplier KSA

Precision pinion gears (DIN 5–7 or AGMA 10–13 quality) are used in:

• CNC machine tool drives (laser, plasma, waterjet cutting axes)
• Robotic arm and 7th axis drive systems
• Automation gantries requiring sub-millimeter repeatability
• High-speed packaging machinery
• Precision measurement equipment

Precision grade is defined by tooth profile tolerance, pitch error, and surface finish on tooth flanks.

For CNC machine tool axes: specify minimum DIN 6 quality for the pinion, matched to DIN 6 quality rack.

Below DIN 6, accumulated pitch error over long travels causes positioning inaccuracy.

What is a Pinion Gear and How is it Used in Rack and Pinion Systems?

A pinion is the smaller of two mating gears.

In a gear pair, the pinion drives the larger gear - it is the input element, attached to the motor shaft or drive shaft.

In a rack and pinion system specifically:

The pinion is the round rotating gear.

The rack is the straight linear bar with teeth.

When the motor turns the pinion, the pinion's teeth push against the rack's teeth.

The rack moves in a straight line.

Rotational motion becomes linear motion.

The reverse works too:

push the rack linearly and the pinion rotates.

This is how automotive manual steering works - turning the steering wheel rotates a pinion that moves a rack left and right, turning the wheels.

In industrial Saudi applications:

The pinion is bolted to the output shaft of a servo motor or gearbox.

It meshes with a rack mounted on the machine's linear axis.

As the motor turns the pinion, the machine axis (gantry, table, carriage) travels in a straight line.

The pinion's module (tooth size) and number of teeth determine how far the machine travels for each revolution of the motor.

Travel per revolution = π × module × number of teeth.

Example:

Module 4 pinion with 20 teeth → 4 × π × 20 = 251.3mm per revolution.

What are the Different Types of Pinion Gears Available in Saudi Arabia?

Spur pinion (straight tooth)

Teeth parallel to the gear axis.

Simplest design. Most widely stocked.

Generates noise at high speed - teeth engage and disengage abruptly.

Used for: general industrial drives, low-to-medium speed applications.

Helical pinion

Teeth cut at an angle (helix angle, typically 15°–25° standard, up to 45° for high-performance).

Multiple teeth in contact simultaneously → smoother, quieter, higher load capacity.

Generates axial thrust - the shaft bearings must handle this force.

Used for: CNC machine axes, high-speed automation, precision gantries, all applications above 1 m/s.

Bevel pinion

Conical tooth form. Transmits power between shafts at an angle - usually 90°.

Used in: right-angle gearboxes, differential drives, crane slewing drives.

Worm pinion

Screw-form gear that meshes with a worm wheel.

High reduction ratio in a compact space.

Self-locking in some configurations (cannot be back-driven).

Used in: valve actuators, lifts, conveyor speed reducers.

Integrated pinion shaft

Pinion teeth cut directly onto the shaft - one machined piece, no separate gear and shaft.

Eliminates the key joint between shaft and gear.

Used in high-speed precision applications where joint fretting is not acceptable.

Rack-and-pinion paired set

Pinion supplied matched with its rack as a confirmed pair.

Ensures correct module, pressure angle, and helix angle match between the two components.

Available from Asar Engineering (+91 77384 13474).

Which Suppliers Offer Helical Pinion Gears in Dammam and Other Cities in KSA?

Dammam / Eastern Province:

Alruqee Industrial Marketing — +966 13 847 0664 | Al Khobar

Handles helical gear procurement for Eastern Province industrial customers.

Contact for current stock availability and lead time.

Al Wasat Al Badeel — Prince Mohammed Street, Dammam

Industrial hardware and power transmission products.

Jeddah / Western Region:

Machine Innovation Co. — +966 12 676 1574

SMC helical rack and pinion actuator units — Japan-manufactured, in Jeddah stock.

Nationwide (all cities):

Alruqee (+966 13 847 0664) — multi-city KSA coverage with 12+ branches.

Import direct from factory (any Saudi city):

Asar Engineering — +91 77384 13474

Helical pinion gears in all modules, any helix angle, all materials.

Sea freight to Dammam: 12–18 days. Air freight available for urgent orders.

What is the Difference Between Straight and Helical Pinion Gears?

Straight (spur) pinion:

Teeth are parallel to the shaft axis.

Simple to manufacture and align.

Lower cost than equivalent helical pinion.

Higher noise — teeth engage and disengage suddenly as the pinion rotates.

Lower load capacity per tooth - contact is a line across the full tooth width simultaneously.

Best for: slow-to-moderate speed drives, heavy loads where noise is not critical, general industrial use.

Helical pinion:

Teeth are cut at a helix angle to the shaft axis.

More teeth in contact at any instant → gradual engagement and disengagement of each tooth.

Smoother, quieter operation at all speeds.

Higher load capacity per module - load shared across multiple teeth simultaneously.

Generates axial thrust force - requires thrust-rated bearings on the shaft.

Higher manufacturing complexity and cost than spur pinion of the same module.

Best for: high-speed CNC machine axes, precision automation, all applications above 1 m/s, noise-sensitive environments.

Which to specify in Saudi Arabia's industrial applications:

CNC laser or plasma cutting machine axes: helical pinion - minimum DIN 6 grade.

Heavy industrial conveyor drive (slow, high torque): straight spur pinion - adequate and simpler.

Crane slewing drive: typically helical for smooth load movement and low shock.

Gearbox internal drive stages: helical for all modern industrial gearboxes.

Are Custom Pinion Gears Available from Manufacturers in Saudi Arabia?

Asar Engineering (+91 77384 13474) is the primary manufacturer exporting custom pinion gears to KSA.

Custom options available:

Any module from 0.5 to 50.

Any number of teeth.

Any bore diameter with custom keyway.

Spur, helical (any helix angle), bevel, worm, or integrated shaft pinion.

All materials: C45, EN8, 42CrMo, SS304, SS316, aluminum, engineering plastics.

Heat treatment: induction hardened, carburized and hardened, ground precision.

Lead time from factory: 3–6 weeks manufacturing + 12–18 days sea freight to Saudi Arabia.

Air freight available for urgent requirements — 3–5 days transit.

What Materials are Used in Manufacturing Industrial Pinion Gears?

C45 / EN8 carbon steel:

Standard material for general industrial pinion gears.

Good machinability. Can be induction hardened.

Suitable for moderate loads and standard operating conditions.

42CrMo alloy steel:

High-strength alloy steel for heavy-duty pinions.

Significantly higher fatigue strength than C45.

Used in: crane drives, mining equipment, heavy conveyor pinions.

Can be through-hardened or case-hardened for maximum tooth life.

Case-hardened alloy steel (20CrMnTi, 18CrNiMo7-6):

Carburized and hardened case over tough core.

HRC 58–62 tooth surface.

Maximum wear resistance for high-cycle precision applications.

Used in: CNC machine tools, high-precision automation, wind turbine gearboxes.

Stainless steel — SS304:

General corrosion resistant. Wet environments, coastal applications.

Lower hardness than carbon steel - use larger module to compensate.

Stainless steel — SS316:

Food-contact, pharmaceutical, marine, aggressive chemical applications.

SFDA-compliant for Saudi food processing equipment.

Engineering plastics (nylon PA66, acetal POM, UHMWPE):

Used for: light-duty drives, low noise applications, food and pharmaceutical machinery, applications where lubrication is not possible.

Lighter than steel. Self-lubricating in some grades.

Bronze / brass:

Used in: worm gear pairs (bronze worm wheel mating with steel worm pinion).

Low friction. Self-lubricating tendency.

How Do Choose the Right Pinion Gear for Heavy-Duty Machinery?

Step 1 — Define the power and torque.

What is the motor power (kW) and shaft speed (RPM)?

Torque at the pinion shaft = (Power × 9550) ÷ RPM (in N·m).

The pinion must handle this torque without tooth root bending failure.

Step 2 — Select the module.

Larger module = bigger teeth = higher load per tooth.

For heavy-duty: module 8, 10, 12, 16, 20 are typical.

Rule of thumb for starting selection: module ≈ (Torque ÷ 1000)^(1/3) × 2 — adjust based on tooth face width.

Step 3 — Choose tooth form.

Slow heavy conveyor drives (below 1 m/s): straight spur pinion.

High-speed drives (above 1 m/s), crane slewing, CNC: helical pinion.

Step 4 — Specify material and heat treatment.

Standard industrial (C45, induction hardened, HRC 45–55): adequate for most Saudi industrial applications.

Maximum life in high-cycle or abrasive conditions (42CrMo, carburized, HRC 58–62): specify for cement, mining, and high-cycle petrochemical drives.

Step 5 — Specify bore and keyway.

Bore must match shaft diameter precisely.

Keyway must match shaft key — provide both width and depth.

Step 6 — Define the matching gear or rack.

A pinion does not work alone. Specify the mating gear (rack, ring gear, or spur/helical gear) at the same time — same module, same pressure angle, same helix angle for helical pairs.

Contact Asar Engineering (+91 77384 13474) or Alruqee (+966 13 847 0664) with these parameters for a specific heavy-duty pinion recommendation and quotation.

Who are the Top Pinion Gear Suppliers in Saudi Arabia?

Best for in-Kingdom supply across all Saudi cities:

Alruqee Industrial Marketing — +966 13 847 0664 | Al Khobar

Aramco-registered, multi-city, widest geographic coverage in KSA.

Best for precision automation and SMC brand pinion actuators:

Machine Innovation Co. — +966 12 676 1574 | Jeddah

Best for direct factory import — full range, all modules, custom:

Asar Engineering — +91 77384 13474 | India, direct KSA export

Which Companies are Leading Rack and Pinion Gear Manufacturers in Saudi Arabia?

Asar Engineering Pvt. Ltd. (India)

+91 77384 13474

The most comprehensive single-source manufacturer for Saudi Arabia — covering module 0.5 to 50, straight and helical, all materials, custom specification.

Documented export history to Saudi Arabia's industrial sector.

P R Components Pvt. Ltd. (India)

Complete rack and pinion drive packages — rack + pinion + matched gearbox in one supply.

SMC Corporation (Japan) — represented by Machine Innovation Co., Jeddah

+966 12 676 1574

Precision rack and pinion actuator units. In-Kingdom stock in Jeddah.

KHK Gears (Japan)

JIS-standard precision spur and helical gears including pinion gears.

Available through Japanese industrial product importers.

Where Can Find Industrial Gear Suppliers in Saudi Arabia?

Al Khobar / Dammam / Eastern Province:

Alruqee Industrial Marketing — +966 13 847 0664 | P.O. Box 3657, Al Khobar 31952

Al Wasat Al Badeel — Prince Mohammed Street, Dammam

Jubail:

Alruqee Jubail branch — contact head office: +966 13 847 0664

Al Wasat Al Badeel Jubail branch

Jeddah / Western Region:

Machine Innovation Co. — +966 12 676 1574 | P.O. Box 108484, Jeddah

Alruqee Jeddah branch — contact head office: +966 13 847 0664

Riyadh:

Alruqee Riyadh branch — contact head office: +966 13 847 0664

Yanbu:

Alruqee Yanbu branch — contact head office: +966 13 847 0664

All other cities (Qassim, Hail, Tabuk, Jazan, Ras Al Khair):

Alruqee — +966 13 847 0664 | 12+ branch locations across Saudi Arabia

Are there Rack and Pinion Suppliers in Saudi Arabia Offering Bulk Supply?

Yes. Bulk rack and pinion supply for Saudi Arabia is handled by:

Alruqee Industrial Marketing — +966 13 847 0664

Aramco-registered vendor. Handles bulk industrial procurement.

Multi-branch dispatch for phased project delivery across KSA locations.

Asar Engineering — +91 77384 13474

Factory pricing on bulk orders of 10+ matched rack and pinion sets.

Full export documentation, ISO compliance, and material certificates.

Sea freight to Dammam: 12–18 days.

For bulk orders, provide:

• Complete BOM: module, tooth form, rack length, pinion teeth count, bore, material, quantity per line item
• Delivery schedule: are all items needed together or in phases?
• Project documentation requirements: material certificates, dimensional reports, ISO compliance?

Which Gear Manufacturing Companies in Saudi Arabia Provide Precision Pinion Gears?

Machine Innovation Co. — Jeddah (+966 12 676 1574)

SMC Japan precision rack and pinion actuator units with ground precision pinion gears. In-Kingdom stock.

Fastest supply route for precision pinion components in Saudi Arabia.

Asar Engineering — +91 77384 13474

Manufactures precision ground pinion gears to DIN 3962 tolerance grades.

Available with ground tooth profiles, ground bore, and full dimensional inspection reports.

Lead time: 3–5 weeks from specification + 12–18 days sea freight to KSA.

Who Manufactures Custom Rack and Pinion Gears Near Me in Saudi Arabia?

Asar Engineering (+91 77384 13474) is the primary manufacturer for this — they serve customers across Riyadh, Jeddah, Dammam, Jubail, and Yanbu with direct factory export.

The effective turnaround from "send us your specification" to "delivered to your Saudi site" is:

Standard custom sizes: 3–4 weeks manufacturing + 2–3 weeks sea freight = 5–7 weeks total.

Urgent custom sizes: 3–4 weeks manufacturing + 3–5 days air freight = 4–5 weeks total.

For the closest in-Kingdom representative to discuss your requirements and coordinate the order:

Alruqee (+966 13 847 0664) in your nearest city handles local coordination.

What is the Price of Pinion Gears in Saudi Arabia?

Pinion gear pricing depends on: module, number of teeth, material, precision grade, and heat treatment.

Standard spur pinion (C45 carbon steel, milled, DIN 8–9, per piece):

Small pinion (Module 2–4, 15–20 teeth): SAR 80 – 350

Medium pinion (Module 4–8, 15–25 teeth): SAR 200 – 800

Large pinion (Module 10–16, 20+ teeth): SAR 600 – 3,000+

Helical pinion (add 20–40% over equivalent spur):

Small helical (M2–4): SAR 100 – 500

Medium helical (M4–8): SAR 250 – 1,100

Large helical (M10–16): SAR 750 – 4,000+

Induction hardened pinion (add 30–50% over milled equivalent):

Milled + hardened (HRC 45–55): SAR 120 – 2,000+ depending on size.

Ground precision pinion (DIN 5–6, add 100–200% over milled):

Precision small pinion (M2–4, ground): SAR 300 – 1,500

Precision medium pinion (M4–8, ground): SAR 800 – 3,500

Stainless steel pinion (SS304 or SS316, any module):

2–4× the equivalent carbon steel price.

Import and customs cost:

Sea freight from India to Saudi Arabia adds approximately SAR 200–500 per shipment depending on weight and port.

Saudi customs duty: typically 5–15% of declared CIF value — confirm with your customs broker.

For an accurate price on your specific module, tooth count, and material:

Asar Engineering — +91 77384 13474

Alruqee Al Khobar — +966 13 847 0664

Where Can Buy Rack and Pinion Gears for Industrial Use in KSA?

Jeddah — in-stock, fastest local supply:

Machine Innovation Co. — +966 12 676 1574 | P.O. Box 108484, Jeddah

SMC precision rack and pinion units. In-Kingdom stock.

Al Khobar / Dammam / Jubail / Riyadh / Yanbu and other cities:

Alruqee Industrial Marketing — +966 13 847 0664

Multi-city branches. One call for nationwide KSA supply.

For import of specific modules, custom sizes, or large quantities:

Asar Engineering — +91 77384 13474

Sea freight to Dammam or Jeddah: 12–18 days.

Air freight for urgent orders: 3–5 days.

For small and light-duty rack and pinion (Module 1, 2, 3):

Amazon Saudi Arabia stocks small-module standard rack and pinion sets for immediate delivery across the Kingdom — suitable for light machinery, DIY CNC, and small automation projects.

Do Pinion Gear Suppliers in Saudi Arabia Provide Quotation and Fast Delivery?

For quotation and same-day response:

Alruqee Industrial Marketing — +966 13 847 0664 | Al Khobar

Call directly with your specification. Quote provided same day for stock items.

Machine Innovation Co. — +966 12 676 1574 | Jeddah

SMC product quotations issued same day. In-stock items dispatched within 1–3 working days.

For factory-direct quotation within 3–5 working days:

Asar Engineering — +91 77384 13474

Provide module, tooth form, number of teeth, bore, material, and quantity.

Written quotation returned within 3–5 working days.

Delivery times:

In-Kingdom stock items: 1–5 working days to your Saudi location.

Sea freight from India: 12–18 days after dispatch.

Air freight from India (urgent): 3–5 days after dispatch — confirm cost with supplier before specifying.

What to prepare before requesting a quotation:

• Module number (e.g. M2, M4, M6, M10)
• Tooth form: spur or helical? If helical, helix angle?
• Number of teeth
• Bore diameter and keyway dimensions
• Material requirement
• Heat treatment: unhardened, induction hardened, ground precision?
• Quantity required
• Delivery location in Saudi Arabia
• Required delivery date

Order Custom-Made Pinion Gears for Specific Machinery Applications?

Yes. Custom pinion gears can be ordered from Asar Engineering (+91 77384 13474) and manufactured specifically for your machinery.

What can be customized:

Any module from 0.5 to 50 — not restricted to catalog modules.

Any number of teeth.

Any bore diameter — finish-machined to your exact shaft size.

Any keyway dimensions — to your drawing or measurement.

Spur, helical (any helix angle), bevel, worm, or integrated shaft design.

Any material: carbon steel, alloy steel, stainless, aluminum, or engineering plastic.

Any heat treatment: milled, induction hardened, carburized, ground after hardening.

Integrated flange, split design, or any non-standard hub configuration.

What information is needed to start:

Machinery type and application (conveyor, crane, CNC machine, gate actuator, etc.)

Motor power and shaft speed at the pinion

Bore diameter and keyway size

Mating gear details (rack module and length, or gear module and diameter)

Material preference

Required precision grade

Quantity

Delivery timeline

Typical lead time for custom pinion gears exported to Saudi Arabia:

Simple custom spur pinion (standard material, milled): 2–3 weeks manufacturing + 12–18 days sea freight.

Complex custom (helical, ground precision, special material): 4–6 weeks manufacturing + 12–18 days sea freight.

Urgent custom with air freight: manufacturing time same + 3–5 days air freight.

Contact Asar Engineering (+91 77384 13474) with your application details to receive a quotation within 3–5 working days.

Top Pinion Gear Suppliers in Saudi Arabia
