Bevel Gear Suppliers in Saudi Arabia | Spiral & Straight Bevel Gear Systems for Industrial Transmission

Industrial Bevel Gear Suppliers for Heavy Duty Gear Drive Systems

Heavy-duty bevel gear drives in Saudi Arabia cover:

• Cement kiln and ball mill angular drives
• Rolling mill bevel stage gearboxes
• Industrial crane slewing and travel drives with angular power transmission
• Marine main and auxiliary bevel reduction stages
• Large pump and compressor right-angle drives in petrochemical plants

For heavy-duty bevel gear supply — large diameter, high torque, continuous duty — the specification must include:

Module 8 and above for high-torque drives.

42CrMo or 18CrNiMo7-6 alloy steel — not standard C45.

Case carburized and hardened (HRC 58–62) for maximum surface life.

AGMA 2003 or DIN 3965 quality grade DIN 6 minimum — ground after hardening.

Matched gear and pinion from the same manufacturing batch.

Suppliers:

Bonfiglioli — Dammam (P.O. Box 9998) — integrated heavy-duty bevel helical gearboxes.

Asar Engineering — +91 77384 13474 — custom heavy-duty bevel gear pairs in all specifications.

Alruqee — +966 13 847 0664 — project procurement coordination for Aramco and SABIC supply.

Custom Bevel Gear Manufacturer in Saudi Arabia for Precision Engineered Solutions

Custom bevel gears are needed when:

• OEM replacement bevel gear is no longer available from the original machine manufacturer
• Non-standard cone angle — the shaft intersection angle is not the standard 90°
• Non-standard module, outside diameter, or face angle
• Special material specification (stainless steel for food or marine, duplex alloy for aggressive service)
• Split or segmented construction for large diameter that cannot be transported in one piece
• Upgraded specification required — replacing an undersized standard gear with a correctly rated custom gear

Asar Engineering — +91 77384 13474

Full custom bevel gear manufacturing service:

Straight bevel, spiral bevel, zerol bevel, miter gear (90° shaft angle, equal number of teeth).

Any module: 1 to 30.

Any shaft angle: 45°, 60°, 90°, or any angle to drawing.

Materials: C45, EN8, 42CrMo, 18CrNiMo7-6, SS304, SS316.

Heat treatment: milled, induction hardened, carburized and case hardened, ground after hardening.

Precision grade: DIN 9 (milled), DIN 7 (ground), DIN 5 (high precision).

Lead time: 4–8 weeks from confirmed drawing approval.

Heavy Duty Spiral Bevel Gear for Industrial Power Transmission

Heavy-duty spiral bevel gears in Saudi industrial power transmission are specified for applications where all three conditions are present: high torque, angular shaft transmission, and continuous or high-cycle operation.

What determines "heavy duty" in bevel gear terms:

Module 8 to 30 (large tooth size for high load per tooth).

Face width typically 0.3 to 0.5 × mean cone distance (wider face = more load capacity).

Material: 42CrMo or 18CrNiMo7-6 — not C45 for heavy continuous loads.

Case carburized and hardened: HRC 58–62 case, core HRC 30–38 for toughness.

Quality grade: DIN 6 minimum — teeth ground after hardening for accuracy under load.

Why spiral bevel for heavy duty:

Higher contact ratio (multiple teeth engaged simultaneously) reduces the peak load on any single tooth.

Gradual tooth engagement reduces shock load — important for cement kiln drives and rolling mill drives where load fluctuations are significant.

Higher efficiency (typically 97–99% per stage) compared to worm gear alternatives.

Asar Engineering (+91 77384 13474) manufactures heavy-duty spiral bevel gears up to 1,500mm cone diameter.

Straight & Spiral Bevel Gear Solutions for Mechanical Transmission Systems

Saudi Arabia's mechanical transmission systems use both straight and spiral bevel gears — the correct type depends on the speed and load conditions.

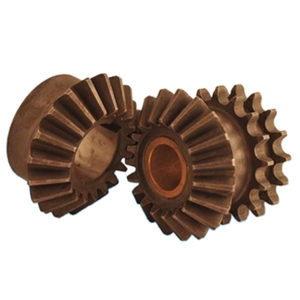

Straight bevel gear:

Teeth are straight, radiating from the cone apex.

Simple to manufacture.

Lower cost.

Lower contact ratio than spiral — only one tooth pair in contact at a time.

More noise and vibration at speed above 5 m/s pitch line velocity.

Generates axial and separating forces — thrust bearings required on both shafts.

Correct for: slow-to-moderate speed drives, light-to-medium loads, intermittent duty.

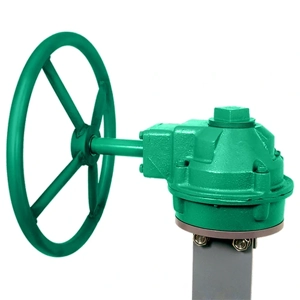

Common in: quarry and mining auxiliary drives, valve actuators, hand-operated mechanisms, low-speed industrial auxiliary drives.

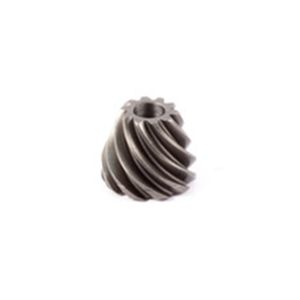

Spiral bevel gear:

Teeth are curved (helical arc, Gleason tooth form).

Higher contact ratio — smoother, quieter, higher load capacity.

More complex to manufacture.

Higher cost.

Generates axial and radial forces — thrust bearings required, but smoother force profile.

Correct for: all high-speed drives, high-torque continuous-duty drives, precision applications.

Common in: cement plant VRM gearboxes, rolling mill main drives, marine propulsion stages, precision right-angle drives in industrial automation.

The rule of thumb for Saudi industrial specification:

Pitch line velocity above 3 m/s: specify spiral bevel.

Below 3 m/s with moderate load: straight bevel is adequate and lower cost.

Bevel Gearboxes Manufacturer, Supplier & Stockist in Saudi Arabia

In-Kingdom bevel gearbox supply:

Import of custom bevel gearboxes:

Asar Engineering — +91 77384 13474 | custom bevel gearboxes, sea freight to KSA in 12–18 days.

P R Components — India | complete bevel gearbox packages for KSA project export.

Bonfiglioli Bevel Gearbox Supplier & Distributor in Saudi Arabia

Bonfiglioli has a confirmed registered presence in Saudi Arabia:

Bonfiglioli is an Italian manufacturer founded in Bologna in 1956 with manufacturing in Italy, Germany, India, China, and the US.

They serve Saudi Arabia directly from their Dammam presence across the following sectors: cement, food and beverage, industrial automation, intralogistics and logistics, material handling, mining, packaging, recycling, and textiles.

Bonfiglioli bevel gearbox products relevant to Saudi Arabia:

A Series Helical-Bevel Gearmotors:

Right-angle helical-bevel configuration.

Compact, modular, quiet operation.

Used in conveyors, material handling, food processing, and industrial automation.

Available in wide torque range.

Suitable for VFD operation.

HDO Series Bevel Helical Industrial Gearboxes:

Flexible, compact bevel helical design with high thermal power capability.

Used in heavy industrial applications in cement, mining, and processing.

300M / 3H Series Planetary-Bevel Heavy Duty:

Combines planetary gear torque density with helical-bevel stages for enhanced cooling and high-speed operation.

Suitable for extreme heavy-duty industrial applications.

For Bonfiglioli bevel gearbox quotation, specifications, and availability in Saudi Arabia:

Contact Bonfiglioli Saudi Arabia directly through their Dammam office (P.O. Box 9998, Alkhaldiya North District 31423, Dammam).

Bulk Bevel Gear Supplier for Industrial Projects & OEM Requirements

Bulk bevel gear supply to Saudi Arabia arises from:

• Large facility builds requiring multiple identical bevel gear pairs (new cement plant, processing complex)
• OEM manufacturers building equipment in Saudi Arabia who need standardized bevel gear components
• Annual maintenance contracts requiring stocked spare bevel gear pairs for critical drives

For bulk supply:

Bonfiglioli Saudi Arabia (Dammam, P.O. Box 9998)

Standard Bonfiglioli bevel gearbox models can be bulk-ordered directly from their Saudi office.

Asar Engineering — +91 77384 13474

Factory pricing on bulk orders of 10+ matched bevel gear pairs.

Full batch traceability — matched pairs from the same production batch.

Complete documentation: material certificates, heat treatment records, dimensional inspection reports.

Alruqee Industrial Marketing — +966 13 847 0664

Multi-city KSA dispatch capability.

Aramco-registered for project-compliant procurement.

For bulk project quotation:

Submit complete BOM: gear type, module, teeth count, cone angle, spiral angle, material, precision grade, and quantity per line item.

Include project delivery schedule.

Bevel Gear Price in Saudi Arabia

Bevel gear pricing is driven by type (straight vs. spiral), size, material, precision grade, and heat treatment.

Indicative price ranges (all prices are CIF Saudi Arabia estimates, including sea freight):

Small straight bevel gear pair (Module 3–6, 100–200mm cone diameter, C45 milled):

SAR 500 – 3,000 per matched pair

Medium spiral bevel gear pair (Module 6–10, 200–500mm cone diameter, 42CrMo, carburized DIN 7):

SAR 5,000 – 35,000 per matched pair

Large spiral bevel gear pair (Module 10–20, 500mm–1,000mm cone diameter, 18CrNiMo7-6, case hardened DIN 6):

SAR 35,000 – 200,000+ per matched pair

Bonfiglioli bevel helical gearbox (standard catalog units):

Small units (A Series, up to 5 kW): SAR 1,500 – 6,000 per unit

Medium units (A Series / HDO Series, 5–50 kW): SAR 5,000 – 25,000 per unit

Heavy industrial units (HDO Series, above 50 kW): SAR 20,000 – 100,000+ per unit

What drives bevel gear price:

Module size — larger module = more raw material per tooth pair = higher cost exponentially.

Spiral vs. straight — spiral bevel costs 50–150% more than equivalent straight bevel due to complex cutting geometry.

Material — 18CrNiMo7-6 case-hardened alloy costs significantly more than C45 milled steel.

Precision grade — DIN 6 ground bevel gears cost 2–4× DIN 8 milled equivalent.

Cone diameter — price scales non-linearly with diameter above 300mm.

Cone angle — non-standard shaft angles require additional setup and machining time.

For accurate pricing on your specific bevel gear:

Bonfiglioli Saudi Arabia — Dammam (P.O. Box 9998) for standard gearbox units.

Asar Engineering — +91 77384 13474 for custom or replacement gear pairs.

Alruqee Al Khobar — +966 13 847 0664 for in-Kingdom project procurement pricing.

Buy Bevel Gear in Saudi Arabia

For standard bevel gearbox units — in-Kingdom purchase:

Bonfiglioli Saudi Arabia — Dammam, Alkhaldiya North District (P.O. Box 9998, 31423)

Standard A Series, HDO Series, and 300M Series bevel gearboxes available from Saudi Arabia office.

Alruqee Industrial Marketing — +966 13 847 0664 | Al Khobar

Industrial drive components including bevel gear products, Aramco-registered supply.

Machine Innovation Co. — +966 12 676 1574 | Jeddah

Compact right-angle drives and precision bevel gear components for western region customers.

For custom or replacement bevel gears — import from factory:

Asar Engineering — +91 77384 13474

Sea freight to Dammam or Jeddah: 12–18 days after dispatch.

Manufacturing lead time: 4–8 weeks for custom bevel gears.

Air freight available for urgent requirements — 3–5 days transit.

For small and light-duty bevel gears (Module 1–3):

Amazon Saudi Arabia stocks small bevel gear sets for light machinery and maintenance applications — immediate delivery across the Kingdom.

Bevel Gear Quotation for Industrial Applications

To get an accurate bevel gear quotation, prepare the following:

Technical specification:

Gear type: straight bevel, spiral bevel, zerol bevel, or miter?

Module (e.g. M4, M6, M10, M16)

Shaft angle (e.g. 90°, 45°, or other)

Number of teeth: gear and pinion

Spiral angle (for spiral bevel — typically 25°–35°)

Pressure angle (standard 20° for most industrial bevel gears)

Face width

Outside diameter (back cone diameter)

Bore and keyway dimensions (or shaft diameter if pinion shaft integration required)

Material: C45, 42CrMo, 18CrNiMo7-6, SS304, SS316, or other

Heat treatment: milled, induction hardened, carburized, or through-hardened

Precision grade: DIN 9 (milled), DIN 7 (ground), DIN 6 (precision ground)

Quantity

Project information:

Application and industry (cement, marine, rolling mill, pump drive, etc.)

Delivery location in Saudi Arabia (port: Dammam or Jeddah)

Required delivery date

Documentation requirements (material certificate, inspection report, class society approval)

Contact for quotation:

Bonfiglioli Saudi Arabia — Dammam (P.O. Box 9998) for standard gearbox units

Asar Engineering — +91 77384 13474 (factory direct, 5 working days response)

Alruqee — +966 13 847 0664 (KSA project coordination)

Machine Innovation Co. — +966 12 676 1574 (Jeddah, western region)

International manufacturers serving Saudi Arabia's industrial transmission gear market:

Italy: Bonfiglioli (direct Saudi office, Dammam) — integrated bevel gearboxes and gearmotors across a full industrial range.

Germany: Flender (Siemens) — large industrial gearboxes for cement, mining, and heavy industry. Available through GCC distributors.

India: Asar Engineering (+91 77384 13474), P R Components — volume manufacturing, custom specification, competitive pricing, direct KSA export.

Japan: KHK Gears, Tsubaki — precision bevel and spur gears. Available through precision industrial importers.

For the widest in-Kingdom reach for industrial transmission gear procurement:

Alruqee (+966 13 847 0664) — 12+ city branches, Aramco-registered.

Bonfiglioli Saudi Arabia — Dammam — for Bonfiglioli integrated drive products.

How Long Do Bevel Gears Last in Industrial Applications?

Bevel gear service life depends on specification, installation, lubrication, and operating conditions.

Correctly specified and maintained bevel gears in Saudi industrial applications:

Light-to-medium duty (conveyor drives, valve actuators, auxiliary drives): 10–20 years service life.

Heavy duty continuous (cement VRM bevel stage, marine propulsion): 8–15 years between major overhaul.

Precision drives (machine tool, automation): 5–15 years depending on cycle count and lubrication quality.

What reduces bevel gear life in Saudi Arabia:

Incorrect specification: undersized module or wrong material — fails in months.

Incorrect lubrication: wrong oil viscosity for Saudi ambient temperature (oil too thin in 50°C ambient = reduced film thickness = surface pitting).

Misalignment: incorrect tooth contact pattern on installation — edge loading accelerates wear dramatically.

Contamination: water or particles in the gearbox oil destroy the tooth surface film.

Overloading: operating consistently above rated load degrades surface life exponentially.

The most critical factor for bevel gear life: correct tooth contact pattern on installation.

This is checked by marking the gear teeth with engineer's blue and observing the contact patch when the gear pair is rotated by hand.

A central contact pattern = correct bearing and shim adjustment.

An edge contact pattern = immediate correction required before operating at load.

Top Bevel Gear Suppliers in Saudi Arabia

Bonfiglioli Saudi Arabia — Dammam

P.O. Box 9998, Alkhaldiya North District 31423, Dammam | Also: P.O. Box 995, Dammam 31421

Direct manufacturer presence in Saudi Arabia. Standard bevel gearbox range in stock.

Alruqee Industrial Marketing — +966 13 847 0664

Al Khobar + 11 cities across KSA. Aramco-registered since 1976. Multi-city industrial supply.

Machine Innovation Co. — +966 12 676 1574 | Jeddah

SMC-authorized distributor. Precision drives and right-angle bevel gear products for western region.

Asar Engineering — +91 77384 13474 | India

Custom and replacement bevel gears. Full range, all materials. Direct KSA export.

Bevel Gear Suppliers in Saudi Arabia

For bevel gear supply across Saudi Arabia:

Dammam / Eastern Province: Bonfiglioli Saudi Arabia (P.O. Box 9998) | Alruqee (+966 13 847 0664)

Jubail: Alruqee Jubail branch (+966 13 847 0664)

Riyadh: Alruqee Riyadh branch (+966 13 847 0664)

Jeddah: Machine Innovation Co. (+966 12 676 1574) | Alruqee Jeddah branch

Yanbu: Alruqee Yanbu branch (+966 13 847 0664)

Import direct: Asar Engineering (+91 77384 13474) | P R Components — India

Bevel Gear Manufacturers, Exporters & Suppliers in Saudi Arabia

Direct exporters to Saudi Arabia:

Asar Engineering — +91 77384 13474 | India — custom and standard bevel gears.

P R Components — India — complete bevel gearbox systems.

In-Kingdom supplier with local stock:

Bonfiglioli Saudi Arabia — Dammam (P.O. Box 9998) — integrated bevel gearboxes.

Alruqee — +966 13 847 0664 — industrial supply, Aramco-registered.

Spiral Bevel Gear Manufacturers in Saudi Arabia

No spiral bevel gear manufacturer operates in Saudi Arabia.

Spiral bevel gears are manufactured internationally — primarily using Gleason spiral bevel cutting machines — and exported to Saudi Arabia.

Primary spiral bevel gear manufacturers serving Saudi Arabia:

Asar Engineering — +91 77384 13474 | India — Gleason spiral bevel, all modules, custom specification.

P R Components — India — spiral bevel gear pairs and gearboxes for KSA.

Bonfiglioli (Italy, Dammam office) — integrated bevel helical gearboxes with spiral bevel internal stages.

Bevel Gearbox Manufacturer in Saudi Arabia

No bevel gearbox manufacturer operates in Saudi Arabia.

In-Kingdom bevel gearbox supply:

Bonfiglioli Saudi Arabia — Dammam, P.O. Box 9998 — standard bevel gearbox catalog range.

Alruqee — +966 13 847 0664 — industrial gearbox procurement.

Custom bevel gearbox export to Saudi Arabia:

P R Components — India — single and multi-stage bevel gearboxes to project specification.

Asar Engineering — +91 77384 13474 — bevel gear pairs for housing integration.

Gearboxes Manufacturer, Supplier & Stockist in Saudi Arabia

In-Kingdom gearbox stockists:

Bonfiglioli Saudi Arabia — Dammam (P.O. Box 9998) — Bonfiglioli gearbox range in stock.

Alruqee Industrial Marketing — +966 13 847 0664 — industrial gearbox supply across all KSA cities.

For custom and heavy-duty gearbox import:

P R Components — India | Asar Engineering — +91 77384 13474

For standard brand gearboxes (SEW-Eurodrive, Flender, Rexnord, Nord):

Available through their authorized GCC distributors who supply Saudi Arabia.

Industrial Transmission Gear Manufacturers in Saudi Arabia

There are no industrial transmission gear manufacturers in Saudi Arabia.

All industrial gears — bevel, helical, spur, herringbone, worm, planetary — are manufactured internationally.

Key manufacturers serving Saudi Arabia:

Bonfiglioli (Italy) — direct Dammam office (P.O. Box 9998) for integrated bevel gearboxes.

Asar Engineering (India) — +91 77384 13474 — full gear type range, custom specification, direct KSA export.

P R Components (India) — complete gearbox packages for KSA industrial projects.

In-Kingdom procurement:

Alruqee (+966 13 847 0664) — nationwide, Aramco-registered, 12+ Saudi cities.

What is a Bevel Gear? And Product Range

A bevel gear is a cone-shaped gear with teeth cut along the cone surface.

When two bevel gears mesh together, they transmit power between shafts that intersect — unlike spur or helical gears which only transmit power between parallel shafts.

The most common shaft angle is 90 degrees (right angle). But bevel gears can be designed for any shaft angle.

The cone geometry is what enables this angular power transmission — the teeth are cut on the surface of an imaginary cone, and two cones of the correct geometry can mesh at virtually any angle.

The full product range of bevel gears:

Straight bevel gear:

Straight teeth radiating from the cone apex. Simple. Cost-effective. Used at low speed.

Spiral bevel gear:

Curved teeth (Gleason spiral). Smoother, quieter, higher load capacity. Used at high speed and high torque.

Zerol bevel gear:

A special type of spiral bevel with zero spiral angle — the teeth curve like spiral bevel but with a zero net helix angle. Quieter than straight bevel but without the strong axial thrust of spiral bevel. Used where axial thrust control is important and speed is moderate.

Miter gear:

A specific case of bevel gear where the shaft angle is exactly 90° and both gears have the same number of teeth — gear ratio is exactly 1:1. Used to change shaft direction without changing speed.

Hypoid bevel gear:

Teeth on a hypoid surface — the gear axes do not intersect but are offset. Used in automotive rear axle differentials. Not common in Saudi industrial machinery but relevant for vehicle and mobile equipment drives.

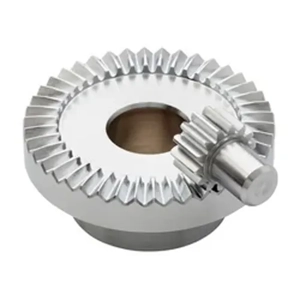

Crown and face gear:

Specialized bevel gear types for specific angular transmission geometries — niche applications.

Bevel gearbox (integrated bevel unit):

Bevel gear pair housed in a sealed cast iron or fabricated steel housing with bearings, seals, oil bath lubrication, and input/output shafts — complete ready-to-install drive unit.

Helical-bevel gearbox (compound unit):

Combines a bevel stage (for angular transmission) with one or more helical stages (for speed reduction) in a single compact housing. The most common configuration for industrial right-angle gearboxes — typified by Bonfiglioli's A Series and HDO Series.

Module range available for Saudi Arabia:

Small precision bevel gears: Module 1 to 4 (instrumentation, automation, light machinery).

Industrial bevel gears: Module 4 to 16 (general industrial drives).

Heavy industrial bevel gears: Module 16 to 30 (cement VRM, rolling mill, marine).

Asar Engineering (+91 77384 13474) manufactures across the full range — Module 1 to 30.

Quick Reference — Bevel Gear Suppliers in Saudi Arabia
