Welding Cable Suppliers in Saudi Arabia

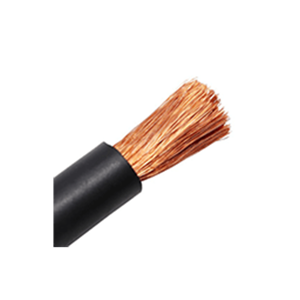

Finely stranded flexible copper conductor with a single rubber or PVC jacket. Suitable for indoor workshop use and short cable runs where mechanical protection is adequate.

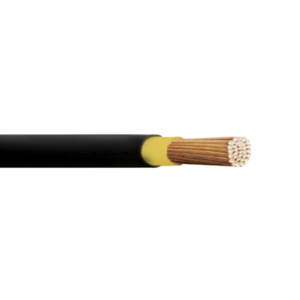

Two-layer insulation construction for outdoor, ground-contact, and petrochemical site conditions. Required on ARAMCO, SABIC, and Royal Commission Jubail projects.

Heat and Oil and Flame Retardant grade. Used in oil refinery shutdowns, structural fabrication, and heavy pipeline welding where ambient temperatures exceed standard cable ratings.

Ultra-flexible construction designed for continuous movement in robotic, semi-automated, and high-cycle manual welding. Maintains flexibility in cold and heat.

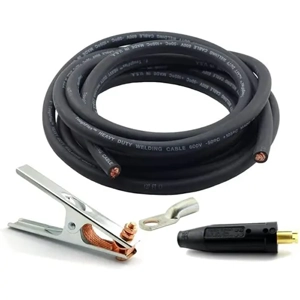

Pre-assembled electrode holder leads and earth return cables for MMA, MIG, and TIG machines. Available in standard lengths from 3m to 50m or cut to specification.

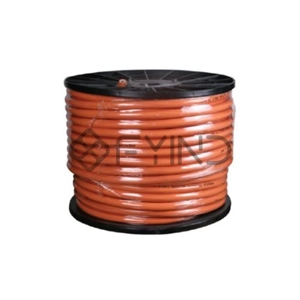

Available in 100m, 200m, and custom drum lengths for large site requirements. Reduces connector joints and minimizes resistance drop over long cable runs.

Pipeline welding, shutdown maintenance, vessel fabrication at ARAMCO, SABIC, and SABIC affiliates. Double insulated and HOFR-grade cables required for classified zone compliance.

Structural steel fabrication, rebar tack welding, and MEP installations on Riyadh, Jeddah, and NEOM mega-projects. MMA and MIG processes dominate; 35mm² and 50mm² cables are the standard specification.

Fixed workshop installations for structural, pressure vessel, and general fabrication. Indoor conditions allow single insulated cable but longer runs and continuous-duty cycles require correctly sized cross-sections.

High-current, continuous-duty applications in steel rolling mills, heavy equipment repair, and industrial maintenance. Large cross-section cables (70mm², 95mm²) with reinforced insulation are typical requirements.

Marine and offshore fabrication at Dammam and Jubail port facilities. Salt-air and moisture resistance is a primary selection factor; rubber insulated and HOFR cables are specified.

Preventive and breakdown maintenance programs at utilities, desalination plants, and industrial facilities. Flexible cable assemblies with quick-connect fittings are common procurement items for maintenance stores.

Your welding machine's manual states its maximum output current. The cable must be rated to handle at least that figure. A cable running near its current limit will overheat, harden, and eventually fail at the insulation.

Resistance increases with length. A 35mm² cable suitable for a 20m run from machine to work point may overheat at 60m on the same machine. Size up one cross-section when the total electrode plus return cable run exceeds 30 metres.

For outdoor use, ground contact, or ARAMCO and SABIC sites, specify double insulated copper welding cable. Single insulated cable degrades quickly when dragged on hot ground or exposed to abrasion and UV in Saudi site conditions.

Joining short cable runs with connectors adds resistance and creates potential failure points. Source the full cable length needed in a single drum cut where possible, especially for fixed installations or high-cycle welding operations.

Some imported cable uses lower copper content or aluminium-copper mixes. Pure copper has a specific weight per metre. If a drum is noticeably light for its stated size, request conductor cross-section verification from the supplier.

Good welding cable insulation remains flexible at site temperatures and does not crack when bent sharply. Cracked insulation exposes live copper on the electrode lead, creating a serious shock hazard on site.

The printed size on the cable jacket should match the actual copper cross-section. Discrepancies between stated and actual conductor area are a quality failure and mean the cable will not meet the current rating implied by its markings.

For ARAMCO, SABIC, and Royal Commission Jubail projects, the procurement team will require mill certificates, test reports, or compliance documentation. Confirm the supplier can provide these before committing to a purchase.

ESAB welding cable is available from authorized distributors in Saudi Arabia including ITW Welding KSA and selected Eastern Province and Riyadh-based industrial suppliers. When specifying ESAB HOFR cable for a project, confirm the product documentation (test reports, insulation grade certification) is available to satisfy ARAMCO or SABIC approved vendor requirements before placing a purchase order.

Lincoln Electric cable kits and lead assemblies are available through Abahsain Welding Division in Al Khobar. For bulk project procurement or multi-unit machine installations, contact the distributor directly with the part numbers above to confirm current stock and delivery lead time. Lincoln Electric also offers flexible cable in standard cross-sections (16mm² through 95mm²) for custom-length electrode and return leads.

For most Saudi industrial sites, double insulated copper welding cable in 35mm² or 50mm² is the preferred specification. Double insulation handles the heat, abrasion, and UV exposure typical of outdoor sites. For ARAMCO and SABIC projects, check the project specification for insulation grade and certifications required — HOFR grade is often mandated for classified zones.

For heavy-duty welding in the range of 300A to 500A, 50mm² to 70mm² copper welding cable is the standard selection. For very high current applications above 500A or with cable runs exceeding 40 metres, 70mm² to 95mm² should be used. Always match the cable to the machine's rated output and the actual run length from machine to work point.

Most major suppliers based in Dammam, Al Khobar, and Jubail serve the Eastern Province and can arrange delivery to Riyadh, Jeddah, Yanbu, and other industrial areas. Riyadh-based suppliers typically cover central and northern regions. For large project requirements, it is worth confirming the supplier's delivery terms and lead time before placing a purchase order, as drum stock may need to be brought in from a central warehouse.

The main insulation types available are rubber (EPDM or neoprene), PVC, and HOFR (Heat, Oil, and Flame Retardant). Rubber insulation is the standard for most welding cable applications due to its flexibility and resistance to heat and abrasion. HOFR is specified where flame retardancy or resistance to oil and chemical exposure is required. PVC insulated welding cable is generally lower cost and used in lighter indoor applications.

Yes. Flexible copper welding cable (IEC 60228 Class 5 and Class 6) is stocked by most industrial welding cable suppliers in Saudi Arabia. Class 6 ultra-flexible cable is used for robotic welding, semi-automated welding, and high-movement manual applications where standard flexible cable would fatigue prematurely. Specify the flexibility class when requesting a quotation for these applications.

Single insulated welding cable has one rubber or PVC outer jacket over the copper conductor. Double insulated cable has two separate insulation layers. Double insulated cable provides greater protection against abrasion, cuts, and electrical faults when the outer jacket is damaged. For outdoor work, ground contact, or ARAMCO and SABIC projects, double insulated cable is the required specification and represents better long-term value despite the slightly higher purchase cost.

Copper welding cable is priced directly against the global copper commodity price (LME copper). When copper prices rise or fall on the London Metal Exchange, welding cable prices in KSA move accordingly, typically with a short lag. Prices can shift 10% to 20% within a quarter during volatile copper markets. For large project budgets, always request a formal quotation with a confirmed validity period and factor in a contingency if procurement is delayed.

Lincoln Electric and ESAB are the most commonly specified brands on Saudi oil & gas and petrochemical projects. Hobart (ITW Welding) and Prysmian Group are also well-represented. For projects where approved vendor lists apply, check with your procurement team before selecting a brand, as ARAMCO and SABIC projects may restrict cable supply to pre-qualified manufacturers.
