What exactly is a shutter motor?
It's the electric mechanism that rolls metal or aluminum shutters up and down automatically. Instead of manually cranking heavy shutters open every morning and closed every evening, you press a button or flip a switch. For shop owners, warehouse managers, and anyone with security shutters, it's the difference between back-breaking daily work and effortless operation. The motors available range from small 100kg units for residential windows to industrial 1000kg+ motors for warehouse loading bays.
Types of Shutter Motors You'll Find in Saudi Arabia
Tubular Motors are the most common type you'll see. The entire motor fits inside the tube that your shutter rolls onto. Clean look, protected from weather and dust, perfect for Saudi Arabia's sandy conditions. Sizes range from 35mm diameter tubes (for small windows) up to 90mm+ for commercial doors. Most shop shutters use 60mm or 80mm tubular motors.
External Motors mount outside the shutter tube and connect via a chain or belt drive. You see these more on older installations or very large industrial shutters. They're easier to service because you can reach the motor without dismantling the shutter, but they're exposed to dust and weather.
Central Motors are specialized systems for controlling multiple shutters from one motor. Common in mall storefronts where 3-4 shutters need to operate together. More expensive but convenient for coordinated operation.
Jielong 800kg Rolling Shutter Motor (Silver)
A heavy-duty side-mounted shutter motor designed for large steel shutters up to 800 kg lifting capacity. Commonly used in warehouses, logistics units, factories, and wide commercial shopfronts. Operates on 220–240V single phase power, delivering strong starting torque for heavy roll-up doors.
Features typically include mechanical limit switch adjustment, manual chain override, thermal overload protection, and metal gear transmission for durability in Saudi Arabia’s dusty and high-temperature environments. Ideal for shutters with frequent daily operation cycles.
Assaf Roller Shutter Motor
A mid-range rolling shutter motor suitable for shop shutters and small commercial units. Available in 300kg, 400kg, and 600kg capacity options, depending on shutter width and material weight.
Includes built-in brake system, limit switch control, and emergency manual operation chain. Designed for regular open-close cycles in retail stores, supermarkets, and street shops. Balanced option between cost and performance.
Standard Shutter Motors (General Category)
Covers both tubular motors (installed inside the shutter shaft) and external side motors (chain-driven systems). Capacity range typically spans 150kg to 1000kg+, depending on shutter dimensions and slat material (aluminum or galvanized steel).
Most operate on single-phase 220V supply, making them compatible with standard Saudi commercial electrical systems. These motors support manual override systems and can be upgraded with remote control modules.

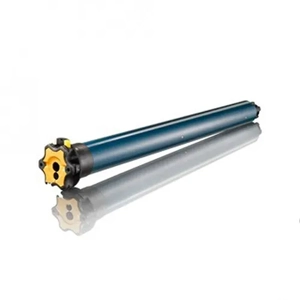

French Somfy Motor for Shutters
A premium European tubular motor system, known for smooth torque delivery and low noise operation. Commonly used in villas, malls, offices, and high-end commercial projects.
Features include thermal overload protection, precision electronic limit setting, smart home compatibility, and extended operational lifespan (often 10+ years with maintenance). Best suited for customers prioritizing quiet operation and long-term reliability.
LT50 Motorization for Roller Shutters
A compact 50mm diameter tubular motor, ideal for medium-weight shutters and smaller commercial doors. Installed inside the rolling tube for a clean appearance and better dust protection.
Offers stable torque output, internal brake mechanism, adjustable limit control, and compatibility with remote or smart automation systems. Frequently used in residential garages and light commercial shutters.
Weight Capacity of Shutter Motor
Shutter motors are rated by how much weight they can lift, measured in kilograms or Newton-meters of torque. Here's the practical breakdown:
- 100-150 kg capacity: Small residential windows, small shop windows (2-3 meters wide)
- 200-300 kg capacity: Standard shop shutters, residential garages, medium storefronts (3-5 meters)
- 400-600 kg capacity: Large commercial shutters, warehouse personnel doors, wide storefronts (5-8 meters)
- 800-1000+ kg capacity: Industrial warehouse doors, loading bay shutters, extra-large or heavily-built security shutters
Get this wrong and you'll either have a motor that struggles and burns out quickly, or one that's unnecessarily expensive. Any supplier worth their salt will help you calculate the weight before recommending a motor.
Speed Considerations
Most shutter motors operate at 12-17 RPM (revolutions per minute). Faster isn't always better—very fast operation can stress the shutter mechanism. For commercial applications where you're opening and closing frequently, a slightly faster motor (15-17 RPM) saves time. For residential use, standard speed (12-14 RPM) is perfectly fine and usually quieter.
Complete List of Top Shutter Motor Suppliers in Saudi Arabia
1. Al Hamd Rolling Shutters & Motors
What they supply: Tubular shutter motors, rolling shutter motors, commercial shutter automation
Location: Industrial Area, Exit 18, Riyadh 11564
Phone: +966 11 265 8800
Coverage: Central Region (Riyadh, Qassim, Hail)
Best for: Shop owners, commercial storefronts, medium-sized industrial applications
Al Hamd has been around for over 15 years and knows the Saudi market inside out. They stock a wide range of motor capacities and actually keep spare parts in inventory—important when you need a quick repair. Their technicians have seen every type of shutter installation imaginable, which means they're good at troubleshooting unusual situations. Pricing is competitive and they're honest about what capacity you actually need rather than overselling.
2. Jeddah Shutter Solutions
What they supply: Electric shutter motors, roller shutter automation, motor repairs
Location: Al Rawdah District, Jeddah 23435
Phone: +966 12 667 3400
Coverage: Western Region (Jeddah, Makkah, Taif)
Best for: Retail shops, residential villas, small to medium commercial
Located in Jeddah's commercial district, they're particularly strong on retail and small commercial installations. They understand the challenges of coastal installations—the salt air and humidity in Jeddah requires motors with better corrosion resistance than inland areas. Their service response time is good, usually same-day for emergency calls within Jeddah. They also handle residential villa shutter automation, which not all commercial-focused suppliers do.
3. Eastern Province Motors & Automation
What they supply: Industrial shutter motors, heavy-duty rolling shutter systems, warehouse automation
Location: 2nd Industrial City, Dammam 32248
Phone: +966 13 847 2200
Coverage: Eastern Province (Dammam, Khobar, Dhahran, Jubail)
Best for: Industrial warehouses, factories, logistics facilities, heavy-duty commercial
If you need serious industrial-grade motors for large warehouse shutters or loading bays, this is where to start. They regularly install 800kg+ capacity motors and understand the demands of 24/7 industrial operations. Their motors are rated for high-cycle usage (hundreds of operations per day), which retail motors can't handle. They also coordinate with industrial door suppliers for complete shutter systems.
4. Saudi Shutter Motor Trading
What they supply: Somfy motors, European brand motors, high-end residential and commercial
Location: Olaya District, King Fahd Road, Riyadh 12211
Phone: +966 11 293 5600
Coverage: Nationwide for premium installations
Best for: Luxury residential, high-end commercial, customers wanting European brands
They specialize in premium European brands, particularly French Somfy motors which are considered top-tier. If you're building or renovating a luxury villa, high-end boutique, or upscale commercial space and want the best quality regardless of price, talk to Saudi Shutter Motor Trading. Their motors are quieter, smoother, and come with longer warranties than budget options. You'll pay 40-60% more than Chinese alternatives, but the reliability and longevity justify it for many customers.
5. Gulf Industrial Shutters
What they supply: Heavy-duty shutter motors, industrial roller shutters, fireproof shutter systems
Location: King Abdullah Economic City (KAEC), Jeddah 23964
Phone: +966 12 606 9100
Coverage: Western and Central regions
Best for: Industrial facilities, petrochemical plants, warehouses, specialized applications
Gulf Industrial focuses exclusively on industrial and specialized commercial applications. They handle challenging environments—motors for outdoor shutters in petrochemical facilities, high-temperature applications, and shutters that need to operate in dusty mining or cement production environments. If your application is industrial and demanding, they have the engineering expertise to specify the right solution.
6. Riyadh Rolling Shutter Specialists
What they supply: Rolling shutter motors, shop shutter automation, maintenance and repair
Location: Al Suwaidi District, Riyadh 12794
Phone: +966 11 478 3300
Coverage: Riyadh and surrounding areas
Best for: Shop owners, small businesses, quick installation and repair
This is a local Riyadh operation that focuses on serving small business owners—the electronics shop, the small grocery, the phone repair kiosk. They understand that for these businesses, every day the shutter doesn't work is lost revenue. Their pricing is straightforward, installation is usually within 48 hours of ordering, and they don't push unnecessary upgrades. Good choice if you want a local company that you can call directly when you need help.
7. Automatic Shutter Systems KSA
What they supply: Tubular motors, external motors, smart shutter controls
Location: Al Khobar Corniche Road, Al Khobar 34441
Phone: +966 13 882 7400
Coverage: Eastern Province
Best for: Mixed residential and commercial, smart home integration
Automatic Shutter Systems has embraced modern technology. They offer motors with WiFi control, smartphone apps, and integration with smart home systems. If you want to control your shop shutters from your phone or automate them to open/close on a schedule, they have the solutions. They also handle standard installations for customers who don't need smart features.
8. Kingdom Shutter Motors & Parts
What they supply: Motors, spare parts, repair components, DIY kits
Location: Industrial Road, Al Kharj 16278
Phone: +966 11 544 2800
Coverage: Central Region with parts shipping nationwide
Best for: Replacement motors, repair parts, technically-capable customers
Kingdom Shutter Motors runs more like a parts supplier than a full-service installer. They stock motors, control units, limit switches, remotes, and every conceivable spare part. If you're a maintenance person for a company with multiple locations, a contractor who installs shutters, or a technically-capable business owner who can do their own installation, they offer good pricing and immediate availability. They do offer installation services but their strength is really in parts supply.
9. Premium Shutter Automation
What they supply: High-end shutter motors, architectural shutter systems, custom automation
Location: Diplomatic Quarter, Riyadh 12512
Phone: +966 11 488 7200
Coverage: Serving premium market nationwide
Best for: Luxury villas, architectural applications, high-end commercial
Premium Shutter Automation caters to the upper end of the market. They work with architects and designers on luxury villa projects where the shutter system needs to be virtually invisible and whisper-quiet. Their motors are all European brands (Somfy, Nice, Simu), installations are white-glove service, and they handle unusual requirements like curved shutters or integrated home automation. Expensive, but flawless execution.
10. Al-Rashid Motors & Industrial Equipment
What they supply: Industrial motors, shutter automation, conveyor systems, warehouse equipment
Location: Second Industrial City, Dammam 32274
Phone: +966 13 856 3900
Coverage: Eastern Province, industrial clients nationwide
Best for: Large industrial projects, integrated warehouse automation
Al-Rashid is a broader industrial equipment supplier that includes shutter motors as part of their warehouse and factory automation offerings. If you're setting up or upgrading a warehouse facility and need not just shutter motors but also conveyors, loading dock equipment, and other industrial automation, they can handle everything as a coordinated project. They have project management capabilities that smaller specialized suppliers don't offer.
Specialized Applications
Outdoor Shutters (Patios, Restaurants): These face direct weather exposure—sun, rain, sand storms. Motors need higher IP ratings (dust and water protection). Coastal areas like Jeddah need corrosion-resistant options. Jeddah Shutter Solutions (+966 12 667 3400) has experience with coastal installations.
Temperature-Sensitive Environments: Kitchens, food processing areas, and some industrial applications involve high or low temperatures. Standard motors are rated to 40-50°C, but specialized motors can handle higher ranges. Confirm temperature requirements with suppliers.
High-Security Applications: Banks, jewelry stores, pharmacies, and valuable goods warehouses sometimes use reinforced security shutters that are significantly heavier than standard shutters. May need custom motor solutions and multiple motors for very large openings.
Shutter Motor Price Guide :
| Motor Capacity | Typical Application | Motor Only (SAR) | Installation Included (SAR) | Premium Brands (SAR) |
|---|---|---|---|---|
| 100-150 kg | Small windows, residential security shutters | 600-900 | 1,000-1,500 | 1,500-2,200 |
| 200-300 kg | Shop fronts (3-4m), residential garages | 1,000-1,500 | 1,600-2,500 | 2,400-3,800 |
| 400-600 kg | Large storefronts (5-8m), commercial | 1,800-2,800 | 2,800-4,200 | 4,200-6,500 |
| 800-1000 kg | Industrial doors, loading bays | 3,200-5,000 | 4,500-7,000 | 6,500-10,000 |
| 1000+ kg | Heavy industrial, specialized applications | 5,000-8,000 | 7,000-12,000 | 12,000-18,000 |
How long it will take to install shutter motor :
Step 1: Motor Selection and Preparation - The supplier confirms motor capacity matches your shutter weight. They'll bring the motor, control unit, remote controls, and any necessary mounting hardware.
Step 2: Shutter Removal or Access - For tubular motors, sometimes the existing manual operating mechanism needs to be removed. The motor fits inside the shutter tube, so the end plates of the shutter may need to be temporarily removed.
Step 3: Motor Installation - The motor mounts inside the shutter tube (for tubular motors) or beside the shutter (for external motors). It connects to the shutter shaft and secures to the wall or mounting brackets.
Step 4: Electrical Connection - Wiring runs from the motor to the control switch and power supply. If you're adding remote control, the receiver installs near the motor. Most installations are hardwired to a wall switch; wireless switches are also available.
Step 5: Limit Switch Programming - This is crucial—the motor needs to know where "fully open" and "fully closed" positions are. The installer programs these limit points so the motor stops automatically. Incorrect limits cause the motor to strain or the shutter to slam, reducing lifespan.
Step 6: Testing and Adjustments - The installer tests full up and down operation multiple times, checking for smooth operation, proper stopping points, and that manual override works. They'll also test obstacle detection if equipped.
Step 7: Customer Handover - Before leaving, the installer should demonstrate operation, explain the manual override procedure, and leave you with any remotes, manuals, and warranty cards.
Installation Timeframes
Simple residential or small commercial: 2-4 hours for a single shutter with existing electrical nearby and straightforward access.
Medium commercial with electrical work: 4-8 hours if new electrical circuits need to be run or multiple shutters are being automated.
Large industrial or complex installations: 1-3 days depending on size, number of shutters, and any structural work needed.
Most suppliers aim to complete residential and small commercial jobs in a single visit. Riyadh Rolling Shutter Specialists (+966 11 478 3300) and Jeddah Shutter Solutions (+966 12 667 3400) typically schedule and complete small commercial installations within 48 hours of order confirmation.
How to Maintenance Shutter Motor
Listen for unusual sounds: A healthy motor hums smoothly. Grinding, squealing, or rattling indicates problems developing. Catching issues early prevents expensive failures.
Watch the operation: The shutter should roll up and down smoothly at consistent speed. If it slows down, speeds up, or struggles, something is wrong could be motor, could be the shutter mechanism.
Check manual override: Once a month, test that you can disengage the motor and manually operate the shutter. You don't want to discover during a power cut that the manual release is stuck or broken.
Inspect the shutter curtain: Look for damaged slats, bent sections, or anything binding in the tracks. These issues stress the motor unnecessarily.
Clean the shutter tracks: Dust and sand accumulate in the guide tracks, especially in Saudi Arabia. Use a dry brush or vacuum to remove debris. Don't use water unless you dry everything thoroughly moisture plus dust creates grinding paste.
Lubricate moving parts: Apply silicone-based lubricant (not oil or grease) to the shutter slats' connection points and the guide rails. Don't lubricate the motor itself unless the manual specifically instructs it.
Check electrical connections: If you're comfortable with electrical work, verify that all wire connections are tight and there's no corrosion. Loose connections cause motors to work harder and fail prematurely.
Test obstacle detection: If your motor has this feature, test it by placing an object in the shutter's path. The motor should stop and reverse immediately. This is a critical safety feature.
Common Problems and Solutions of shutter motor
Motor runs but shutter doesn't move: The motor has disengaged from the shutter shaft, or the shutter is binding in its tracks. Check for obstructions first. If clear, the coupling between motor and shutter may have failed needs professional repair.
Shutter stops mid-way: Usually a limit switch issue or motor overheating protection kicking in. If it happens during extreme heat, the motor may be undersized for the shutter weight. If it's random, limit switches need adjustment.
Remote control doesn't work: Battery is the first suspect. If fresh battery doesn't help, the receiver may have failed or there's signal interference. Try standing closer to the shutter if it works up close but not from distance, the receiver antenna may be damaged.
Motor makes noise but moves slowly: This indicates the motor is struggling either it's undersized for the shutter, or something is creating excessive resistance (dirty tracks, damaged shutter, misaligned guides). Don't ignore this the motor is working too hard and will fail soon.
Motor won't start at all: Check electrical power first circuit breaker, wiring connections. If power is confirmed, the motor itself has likely failed. Motors don't usually repair well replacement is typical.
Choosing the Right Supplier for Your Situation
For Small Shop Owners in Major Cities
Riyadh: Call Riyadh Rolling Shutter Specialists (+966 11 478 3300) first—they focus on exactly your needs and provide quick service. Alternative: Al Hamd Rolling Shutters (+966 11 265 8800) for slightly more options.
Jeddah: Jeddah Shutter Solutions (+966 12 667 3400) understands retail and commercial shop applications well and knows the local market.
Dammam/Khobar/Eastern Province: Automatic Shutter Systems KSA (+966 13 882 7400) handles both traditional and smart installations for commercial clients.
For Industrial and Warehouse Facilities
Eastern Province (industrial hub): Eastern Province Motors & Automation (+966 13 847 2200) and Al-Rashid Motors (+966 13 856 3900) both specialize in industrial applications and understand high-cycle, heavy-duty requirements.
Western Region: Gulf Industrial Shutters (+966 12 606 9100) handles demanding industrial environments including specialized applications.
Nationwide industrial projects: Al-Rashid Motors (+966 13 856 3900) has the project management capability for multi-location industrial installations.
For Residential Applications
Luxury villas and high-end residential: Premium Shutter Automation (+966 11 488 7200) or Saudi Shutter Motor Trading (+966 11 293 5600) for top-quality European motors and white-glove installation.
Standard residential needs: Most suppliers handle residential, but Jeddah Shutter Solutions (+966 12 667 3400) in Jeddah and Al Hamd Rolling Shutters (+966 11 265 8800) in Riyadh specifically mention residential experience.
For Smart/Automated Solutions
If smartphone control, automation, or smart building integration is important, contact Automatic Shutter Systems KSA (+966 13 882 7400) or Premium Shutter Automation (+966 11 488 7200)—both emphasize modern control solutions.
Frequently Asked Questions
How long does a shutter motor last in Saudi Arabia?
Typically 7–12 years with proper maintenance. Heat, dust, and heavy daily use reduce lifespan. Correct motor sizing and annual servicing help extend durability.
What’s the difference between a 250kg and 400kg motor?
Higher-capacity motors have stronger internal parts and run cooler. The ideal motor should be rated 20–30% above your shutter weight. Undersized motors fail quickly.
Can I add a motor to my existing manual shutter?
Yes, most manual shutters can be motorized if they are in good condition. Installation usually takes 3–5 hours and costs much less than full shutter replacement.
What happens during power outages?
All motors should have a manual override system. Optional battery backup allows limited operation during power cuts.
Is electricity usage high?
No. Shutter motors consume very little electricity. Monthly running cost is usually minimal, even for commercial use.
European vs Chinese shutter motors — which is better?
European brands offer longer lifespan and quieter operation. Chinese motors are more affordable but vary in quality. Choice depends on budget and usage level.
How often should shutter motors be serviced?
At least once per year. In dusty or high-use environments, service every 6 months is recommended.
Can shutter motors connect to smartphone apps?
Yes. Many modern motors support WiFi control, scheduling, and smart home integration.
Tubular vs external motors — what’s the difference?
Tubular motors are hidden inside the shutter tube and better protected. External motors are easier to access but more exposed to dust and heat.
How do I calculate motor capacity?
Motor size depends on shutter width, height, and material weight. Always choose a motor rated above the actual shutter weight.
