Supplier	Location	Main Scaffolding Beams	Best For	Phone	Price Range
9Degrees	Saudi Arabia – Nationwide Supply	Steel ladder beams, H20 formwork beams, aluminium beams	Formwork projects & general access bridging	012 423 3397 Ext:101	SAR 180–950 / piece
ALTRAD SPAR CO LTD	Al Jubail / Dammam	Galvanized steel ladder beams (SP-LB Series), heavy-duty bridging beams	Large industrial projects, EPC & shutdown works	+966 13 361 9096 +966 13 362 7320	SAR 350–1,450 / piece
Ascend Access Global Scaffolding Company	Jeddah	Aluminium S-150/T-150 beams, X-beams, lattice/unit beams, steel decking beams	Aluminium formwork & mobile tower scaffolding	+966 50 265 0111	SAR 220–1,100 / piece or set
Al Sandan New Factory for Steel Industries	Riyadh	Heavy-duty deep X-beams, steel scaffold beams, beam brackets	Heavy-duty & long-span steel scaffold platforms	+966 50 051 9128	SAR 400–1,600 / piece

9Degrees — Scaffolding Ladder Beam & H20 Formwork Beam Supplier in KSA

SAUDI ARABIA-WIDE SUPPLY · Ladder beam & formwork specialist · Multiple depth & length options · Bulk order capability

Phone: 012 423 3397 Ext:101  |  Email: info@9degrees-ksa.com

Products They Offer

• Scaffolding Ladder Beam (48.3mm OD Steel Tube) — Material: 48.3mm OD Scaffold Tube | Depth: 305mm Standard (228–400mm Range) | Vertical Support Spacing (Rungs): 305mm | Length: 2m–6.4m | Suitable For: Bridging Gaps & Openings, Cantilevered Supports, Loading Bay Platforms
• H20 Beam Formwork System (H20 Top Beam) — Height: 200mm | Width: 80mm | Length: Up to 6000mm | Material: Laminated Timber Flange with Plywood Web, Shock-Absorber End Caps | Suitable For: Wall, Table, Slab & Column Formwork
• Aluminum Beam — Material: Aluminium Alloy | Height Class: 150mm | Corrosion Resistance: Naturally Corrosion-Resistant Aluminium | Suitable For: Lightweight Formwork Decking & Platform Support

Price Range

SAR 250–650 / piece (Ladder Beam)  |  SAR 180–480 / piece (H20 Top Beam)  |  SAR 300–950 / piece (Aluminum Beam)

Why Choose 9Degrees

• Brands Available: 9Degrees own-supplied steel ladder beams, H20 timber formwork beams and aluminium beams.
• Delivery: Nationwide dispatch across Saudi Arabia for both project and bulk orders.
• Supply Capability: Multiple beam depths, rung spacings and lengths stocked for quick project matching.
• Technical Support: Guidance on beam depth, span and load class selection for scaffolding and formwork projects.
• Scaffolding Products: Ladder beams, H20 formwork beams, aluminium beams, cuplock and coupler systems, LVL boards.
• Industries Served: General Construction, Formwork Contracting and Facility Maintenance.
• Value-Added Services: Bulk pricing, product guidance and nationwide delivery coordination.

ALTRAD SPAR CO LTD — Scaffolding Beam Manufacturer in Saudi Arabia

AL JUBAIL & DAMMAM · Galvanized steel beam manufacturer · Aramco GI 8.001 / SABIC / BS EN 12811 compliant · Bulk export capability

Phone: +966 13 361 9096 / +966 13 362 7320  |  Email: info@arabianspar.com  |  Address: King Abdullah Road, Behind KPS 33, P.O. Box 1396, Al Jubail 31951, KSA

Products They Offer

• Ladder Beam SP-LB-3000 / SP-LB-4000 — Material: S355 EN 10219 Structural Steel, Hot-Dip Galvanized ≥ 85µm | Depth: 305mm | Tube: 48.3 × 3.2mm OD | Length: 3.0–4.0 m | Weight: 17.8–22.3 kg | Safe Load: 3.0 kN/m²
• Ladder Beam SP-LB-5000 / SP-LB-6000 (Deep Lattice Beam) — Material: S355 EN 10219 Structural Steel, Hot-Dip Galvanized ≥ 85µm | Depth: 450mm | Tube: 48.3 × 4.0mm OD | Length: 5.0–6.0 m | Weight: 27.6–33.8 kg | Safe Load: 3.0 kN/m²
• Heavy Duty Steel Scaffold Beam (Bridging & Shoring Beam) — Material: S355 Structural Steel, ISO 1461 Galvanized Finish | Beam Bending Strength: 7.2 kN·m | Deflection Limit: ≤ L/50 | Suitable For: Cantilever & Suspended Scaffold Bridging, Industrial Shoring

Price Range

SAR 350–750 / piece (SP-LB-3000/4000)  |  SAR 650–1,450 / piece (SP-LB-5000/6000 Deep Beam)  |  SAR 500–1,200 / piece (Heavy Duty Shoring Beam)

Why Choose ALTRAD SPAR CO LTD

• Brands Available: ALTRAD SPAR own-manufactured galvanized steel ladder beams (SP-LB Series).
• Delivery: Manufacturing base in Al Jubail with distribution across the Eastern Province and nationwide.
• Supply Capability: Large-volume manufacturing for EPC contractors, industrial projects and export orders.
• Technical Support: Guidance on beam depth, span, safe load and connection compatibility with Cuplock and Ringlock systems.
• Scaffolding Products: Ladder beams, steel ladders, standards, transoms, braces and adjustable props.
• Industries Served: Oil & Gas, Petrochemical, Construction and Industrial Maintenance.
• Value-Added Services: Bulk pricing, factory load-testing (TÜV/SGS certified) and nationwide delivery.

Ascend Access Global Scaffolding Company — Aluminium & Lattice Beam Supplier in Jeddah

JEDDAH & WESTERN REGION · Aluminium & steel beam range · Modon Industrial Area facility · Made-in-KSA manufacturing

Phone: +966 50 265 0111  |  Address: Modon Industrial Area 3, Jeddah, KSA

Products They Offer

• Steel Decking Beam (Ascend Brand) — Material: 2–2.5mm Lightweight Steel Box Section, Reinforced with Steel Rod Lattice | Support: Adjustable Props & Standard Verticals | Suitable For: Temporary Scaffold Deck Spans
• Aluminium Beam S-150 — Material: Aluminium Alloy 6061/6082-T6 | Height: 150mm | Top/Bottom Side: 75mm | Weight (With Timber Insert): 3.81–4.01 kg/m | Moment of Resistance: 6.80 kN·m | Suitable For: Standard Slab/Wall Formwork Spans up to 1.8m
• Aluminium Beam T-150 — Material: Aluminium Alloy, Twin-Web Profile | Height: 150mm | Weight (With Timber Insert): 5.84 kg/m | Moment of Resistance: 13.0 kN·m | Suitable For: Heavier-Load & Wider-Span Formwork
• Aluminium X-Beam & S/T-Profile Beam — Material: Aluminium Alloy | Type: X-Profile & S/T-Profile Beam | Suitable For: Aluminium Mobile Scaffold Towers & Lightweight Platforms
• Aluminium Lattice/Unit Beam (Up to 8.1m) — Material: Aluminium Alloy Lattice Frame | Length: Up to 8.1m | Depth: 450–750mm (Deeper Frameworks) | Suitable For: Long-Span Bridging & Wide Platform Decks

Price Range

SAR 280–620 / piece (Steel Decking Beam)  |  SAR 220–480 / piece (Aluminium S-150)  |  SAR 320–680 / piece (Aluminium T-150)  |  SAR 260–550 / piece (X-Beam/S-T Profile)  |  SAR 650–1,100 / piece (8.1m Lattice/Unit Beam)

Why Choose Ascend Access Global Scaffolding Company

• Brands Available: Ascend’s own Made-in-KSA aluminium and steel scaffolding beam range (S-150, T-150, X-Beam, Decking Beam).
• Delivery: Manufacturing/stocking facility in Jeddah’s Modon Industrial Area with Western Region coverage.
• Supply Capability: Lightweight aluminium beams and steel decking beams for both purchase and rental.
• Technical Support: Guidance on beam profile (S-150 vs T-150), span and load class selection for formwork and towers.
• Scaffolding Products: Decking beams, aluminium beams, X-beams, lattice/unit beams, cuplock system components and towers.
• Industries Served: Construction, Events & Staging, Facility Maintenance and Mobile Access Rental.
• Value-Added Services: Buy-or-rent flexibility, bulk pricing and Jeddah-based dispatch.

Al Sandan New Factory for Steel Industries — Heavy-Duty Scaffold Beam Manufacturer in Riyadh

RIYADH & CENTRAL REGION · Since 1995 · ISO 9001 certified manufacturer · 500+ scaffolding & formwork products

Phone: +966 50 051 9128  |  Address: Al Mashael, Riyadh, KSA

Products They Offer

• Heavy Duty 1300mm Deep Scaffold X Beam — Material: High-Tensile Steel | Depth: 1300mm | Type: X-Braced Deep-Frame Beam | Suitable For: Heavy-Duty Long-Span Platforms & Bridging Over Openings
• Scaffolding Beam (4.1m / 6.1m / 8.1m) — Material: Steel | Length Options: 4.1m, 6.1m, 8.1m | Suitable For: General Scaffold Deck Bridging & Platform Support
• Heavy Duty Steel Scaffold Beam (Model A18060) — Model: A18060 | Material: High-Tensile Steel | Corrosion Resistance: Galvanized/Painted Finish | Suitable For: Heavy Industrial Platform Decking
• Cuplock, Kwikstage & Ringlock Beam Brackets — Material: Steel | Type: Multi-System Beam End Brackets | Suitable For: Connecting Beams to Cuplock, Kwikstage & Ringlock Standards

Price Range

SAR 900–1,600 / piece (1300mm Deep X Beam)  |  SAR 400–950 / piece (4.1–8.1m Scaffolding Beam)  |  SAR 600–1,300 / piece (A18060 Heavy Duty Beam)  |  SAR 60–180 / bracket set

Why Choose Al Sandan New Factory for Steel Industries

• Brands Available: Al Sandan’s own-manufactured steel scaffolding beams and beam brackets, in production since 1995.
• Delivery: Riyadh manufacturing base with coverage across the Central Region and Gulf/African export markets.
• Supply Capability: Deep-frame beams up to 1300mm and multiple standard lengths for heavy-duty and general platforms.
• Technical Support: Custom beam design and dimension study for mega-structure and event scaffolding projects.
• Scaffolding Products: Deep X-beams, steel scaffold beams, beam brackets, Cuplock systems, access frames and props.
• Industries Served: Construction, Industrial Maintenance, Events & Large-Scale Structures.
• Value-Added Services: ISO 9001-certified manufacturing, TÜV-certified erection teams and custom fabrication.

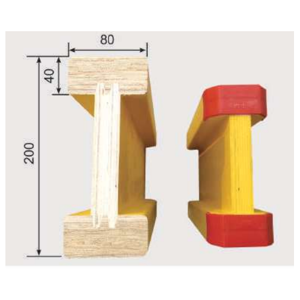

H20 Timber and S-150 Aluminium Formwork Beams - 200mm Concrete Slab Support in KSA

The H20 is an engineered timber I-section - two solid timber flanges bonded to a plywood or LVL web, forming a 200mm-tall H cross-section. It matches steel-beam bending resistance at a fraction of the weight, and can be trimmed on site with a circular saw. The S-150 covers the same formwork role in aluminium, cutting weight further for manual handling.

• •Section height: 200 mm on both H20 and S-150 formats
• •Materials: Engineered timber (H20) or extruded aluminium (S-150)
• •KSA application: Default beam under concrete slabs on Riyadh and Jeddah high-rise projects

Steel Decking Beams - Platform Scaffolding Beam for Access Systems

A galvanized steel beam forming the walking deck of an access scaffold. End hooks or spigots lock into the scaffold's standard cups or ledger sockets for fast, repeatable assembly and strike-down.

• •Finish: Hot-dip galvanized steel for outdoor and coastal exposure
• •Connection: End hooks or spigots matched to the scaffold system on site
• •KSA application: Facade access scaffolding in Jeddah, plant maintenance platforms in Dammam and Jubail

Heavy Duty Scaffold X Beam - 1300mm Deep Section for the Highest UDL Rated Loads

Where standard decking or lattice beams run short on capacity, a deep-section steel X beam takes over. At 1300mm deep, it's built for the highest concentrated loads a Saudi site can throw at it - shoring towers, transfer structures, and long clear spans where deflection has to stay minimal.

• •Depth: 1300 mm - deepest heavy duty section in the KSA product range
• •Category: Heavy duty scaffolding beam / high UDL rated beam
• •KSA application: Industrial shoring and bridge falsework across the Eastern Province

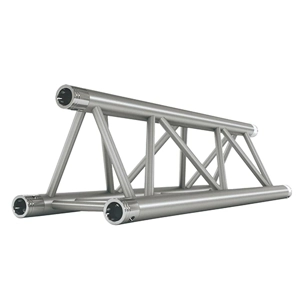

Aluminium Scaffolding Lattice Beams - Long-Span Deep Frameworks From 450mm to 750mm

A lattice or unit beam is a fabricated truss - two parallel chords tied by a diagonal or triangulated web. This open structure gives an exceptional span-to-weight ratio. An 8.1m aluminium lattice beam clears a gap that would otherwise need multiple intermediate props, and deeper 450mm-750mm frameworks extend that capability further for heavier bridging jobs.

• •Length option: Up to 8.1 m in a single aluminium lattice beam
• •Deep framework range: 450 mm to 750 mm section depth
• •KSA application: Podium transfer areas and loading bays where props would block ground-floor operations

Scaffold Ladder Beams - Aluminium and High-Tensile Steel Specifications

A scaffold ladder beam is a compact truss - two chords tied by a rung-pattern web, built like a ladder laid on its side - used to bridge a gap a single board or tube can't cross safely. Both aluminium and 48.3mm OD high-tensile steel-chord versions are stocked in KSA, and load capacity varies significantly between them, so it's worth checking scaffolding ladder beam specifications before ordering.

• •Aluminium option: 6 m ladder beam span
• •High-tensile steel option: 48.3 mm OD chord tube
• •KSA application: Bridging stairwells and light wells on Riyadh and Jeddah fit-out and facade projects

Aluminium X-Beam and S/T-Profile Beam - Lightweight Options for Facade & Mobile Tower Work

Aluminium scaffolding beams trade some raw load capacity for a major weight cut over an equivalent steel section - useful wherever the beam is carried up manually floor by floor, or paired with an aluminium mobile scaffolding tower.

• •X-Beam: Cross-shaped extruded profile with a high stiffness-to-weight ratio; fits standard cup or hook connectors
• •S/T-Profile beams: Flat-chord or symmetric aluminium sections used as ledgers, transoms, or light formwork beams
• •450mm aluminium beam: A lighter section suited to short-span platforms and mobile scaffold towers
• •KSA application: Facade access on Jeddah hospitality and retail towers, temporary event structures in Riyadh

H Frame Scaffolding Beams - Modular Shoring and Re-Shoring Support

H frame scaffolding beams pair with H-frame towers to build a rigid, fast-erect vertical and horizontal support system for slab shoring and re-shoring between floor pours, without the labour of individual tube-and-clamp assembly.

• •Configuration: Paired H-frames connected by horizontal beams and diagonal braces
• •KSA application: Slab re-shoring on multi-storey Riyadh and Jeddah towers, reused floor-to-floor as the pour cycle advances

Adjustable and Telescopic Scaffolding Beams - Variable-Span Support for Rental Fleets

Adjustable scaffolding beams and telescopic scaffolding beams extend within a set range so one beam covers several bay widths, cutting down on how many fixed-length beams a rental fleet or multi-site contractor has to stock and transport.

• •Mechanism: Overlapping inner and outer sections locked at the required length
• •KSA application: Rental fleets and multi-project contractors covering several bay configurations across Riyadh and Dammam

Cuplock, Kwikstage & Ringlock Beam Brackets - System-Specific Scaffolding Support Beams

These aren't generic beams - each is a proprietary horizontal member engineered for one system's node connector. A cuplock scaffolding beam clips into the top and bottom cups of a Cuplock standard; a kwikstage ledger hooks into the Kwikstage rosette; a ringlock scaffolding beam pins through the Ringlock node disc. Mixing brackets across systems is not a safe substitution, even where the fitting seems to line up physically.

• •Cuplock ledger/transom: Pressed steel tube with pressed cup ends - widely used on Riyadh commercial builds
• •Kwikstage ledger/transom: Standard bay widths matched to the Kwikstage rosette - a common modular system for Saudi industrial contractors
• •Ringlock horizontal: Forged rosette end connection allowing multidirectional connection - favoured for curved and complex facades on landmark Riyadh and Jeddah buildings
• •KSA application: Always specify the scaffold system name, bay width, and ledger vs transom when ordering replacement beams

Scaffolding Beam Specifications in KSA - Sizes, Depth & Price Comparison

H20 Formwork Beam Deflecting Mid-Span Before the Concrete Pour Is Finished

A contractor notices H20 beams sagging visibly under wet concrete and plywood weight before the pour completes. Deflection beyond roughly 1/500 of the span pushes the slab soffit out of tolerance and can separate the beam flanges.

Fix: Cross-check the beam span against the manufacturer's load table for the actual slab thickness and concrete density - a step frequently skipped on fast-track Riyadh and Jeddah sites when props get pulled early to speed up the floor cycle. Reduce prop spacing or step down to a shorter beam length rather than accepting the sag.

Scaffold Ladder Beam Overloaded Beyond Its Rated Capacity

A crew loads a ladder beam with materials and workers well beyond what its span and support spacing were rated for, because the load table for that specific product was never checked against the site plan.

Fix: Every ladder beam - aluminium or high-tensile steel - has a manufacturer load table linking span, rung spacing, and safe working load. Pull the current table for the exact product before specifying a bridging span, not a generic industry figure.

Steel Decking Beam Hooks Corroding and Jamming - Coastal Storage in Jeddah and Dammam

A contractor finds that decking beams stored outdoors for a few months near the coast have corroded end hooks that jam in the standard cups and won't release cleanly during a strike-down.

Fix: Coastal humidity in Jeddah and Dammam degrades unprotected steel faster than an inland site like Riyadh. Clean beams after every project, wire-brush any surface rust off the hooks, apply a light oil coat, and store off the ground under cover. Specify hot-dip galvanized finish rather than painted or electro-galvanized on any new order.

Wrong Scaffolding Beam Bracket Ordered for the System on Site

A procurement officer orders a generic "scaffold beam" and it arrives as a Kwikstage ledger, but the rig on site is built on Cuplock standards - the hook-head end won't connect to the cup fittings at all.

Fix: Always specify the scaffold system name, bay width, and whether a ledger or transom is required on the purchase order - never just "scaffold beam." Cuplock, Kwikstage, and Ringlock brackets are not interchangeable, even when a fitting physically appears to line up.

How to Specify the Right Scaffolding Beam for a KSA Project

Product	Material	Depth / Length	Best Used For	Available From
Ladder Beam (48.3mm OD Tube)	Galvanized Steel	305mm depth · 2–6.4 m	Bridging gaps, cantilever supports and loading bay platforms.	9Degrees – 012 423 3397
Ladder Beam SP-LB Series	S355 Galvanized Steel	305–450mm depth · 3.0–6.0 m	Industrial bridging, shoring and suspended scaffold decks.	ALTRAD SPAR – +966 13 361 9096
Heavy Duty 1300mm Deep X Beam	High-Tensile Steel	1300mm depth	Heavy-duty long-span platforms and bridging over large openings.	Al Sandan – +966 50 051 9128
H20 Beam Formwork System	Timber Flange / Plywood Web	200mm height · up to 6 m	Wall, table, slab and column concrete formwork.	9Degrees – 012 423 3397
Aluminium Beam S-150 / T-150	Aluminium Alloy 6061/6082-T6	150mm height	Slab and wall formwork; T-150 for heavier loads & wider spans.	Ascend Access Global – +966 50 265 0111
8.1m Aluminium Lattice/Unit Beam	Aluminium Alloy	450–750mm depth · up to 8.1 m	Long-span bridging and wide aluminium tower platforms.	Ascend Access Global – +966 50 265 0111
Steel Decking Beam (Ascend Brand)	2–2.5mm Lightweight Steel	Box-section, project-length	Carrying scaffold decking materials on props & standards.	Ascend Access Global – +966 50 265 0111

What is a scaffold beam?

A scaffold beam is a structural member — usually a ladder beam, lattice/unit beam, X-beam or formwork beam — used to span a gap or opening and carry the load of a working platform, decking or concrete formwork between two supports.

What is a scaffolding beam used for?

Scaffolding beams bridge openings, support cantilevered or suspended platforms, carry decking materials, and — in the case of H20 and aluminium formwork beams — support plywood in concrete formwork systems.

How much does an 8m scaffold beam weigh?

Weight depends heavily on material and depth: a galvanized steel ladder beam of 6m/450mm depth weighs roughly 34kg, while an aluminium lattice/unit beam of similar length is considerably lighter. For an exact 8m beam weight, confirm the depth, material and model with the supplier.

How to install the scaffold beams correctly?

Ladder and lattice beams are generally seated on standards or Cuplock/Ringlock nodes at both ends using their interchangeable end connections, checked for level, and secured before decking is placed. Formwork beams (H20, S-150/T-150) are laid across adjustable props or standard verticals at the spacing specified by the beam’s load table, then plywood or decking is fixed on top. Always follow the specific manufacturer’s installation guide and have installation supervised by a competent scaffolder.

What is the price of scaffolding beams in KSA?

Individual galvanized steel ladder beams typically range from SAR 250–1,450 per piece depending on depth and length, aluminium formwork beams (S-150/T-150) range from SAR 220–680 per piece, and heavy-duty deep X-beams range from SAR 400–1,600 per piece. Contact the suppliers listed above for current bulk and project pricing.

What scaffolding beam sizes and dimensions are available in KSA?

Common ladder beam depths include 228mm, 305mm, 310mm, 360mm and 400mm, with lengths of 2m, 3m, 4m, 4.8m, 5m, 6m and 6.4m. Deeper lattice/unit beams run from 450mm to 750mm depth in lengths up to 8.1m, while heavy-duty X-beams reach up to 1300mm depth. H20 formwork beams are 200mm high in lengths up to 6m, and aluminium S-150/T-150 beams are 150mm high.

What is the difference between an S-150 and a T-150 aluminium beam?

The S-150 is a single-web aluminium beam, the most economical option for normal formwork pressure and plywood spans up to about 1.8m. The T-150 is a twin-web beam that is roughly 40% heavier but offers a much higher moment of resistance (13.0 kN·m vs 6.80 kN·m), making it suitable for heavier loads and wider support spacing.

What types of scaffolding are used by Saudi Aramco?

Aramco projects commonly use Cuplock, Ringlock, tube-and-clamp and frame scaffolding systems, all governed by Aramco GI 8.001 requirements for materials, access ladders, ladder beams and load testing. Suppliers such as ALTRAD SPAR manufacture beams and components engineered to meet these standards for Aramco-approved projects.

What is the maximum load capacity of light duty scaffolding?

Light-duty scaffold platforms are generally rated around 1.5–2.0 kN/m² under BS EN 12811, compared with 3.0 kN/m² or higher for heavy-duty rated beams and platforms. Always check the specific beam and platform load table rather than relying on a general duty classification.

Where can I find used scaffolding beams for sale in KSA?

Some scaffolding manufacturers and rental companies in Saudi Arabia offer refurbished or ex-rental beams alongside new stock. Contact suppliers directly to ask about refurbished inventory, condition reports and load-retest documentation before purchasing used beams.

Who is the leading supplier of construction materials in Saudi Arabia?

There is no single leading supplier for all construction materials; scaffolding beam supply in particular is served by several established manufacturers and distributors, including ALTRAD SPAR CO LTD, 9Degrees, Ascend Access Global Scaffolding Company and Al Sandan New Factory for Steel Industries, each strong in different regions and beam types.

What is the salary range for a scaffolding job in Saudi Arabia?

Scaffolding job salaries in Saudi Arabia vary widely by role (erector, supervisor, engineer), experience level, certification and employer. For current, role-specific figures it’s best to check active job listings on major Saudi job portals or speak directly with scaffolding contractors, as this page is focused on scaffolding beam suppliers rather than employment.

Who are the best scaffolding beam suppliers in KSA?

Based on manufacturing capability, beam range and delivery coverage, leading scaffolding beam suppliers in KSA include ALTRAD SPAR CO LTD, 9Degrees, Ascend Access Global Scaffolding Company and Al Sandan New Factory for Steel Industries. Compare their product lines and contact details above to find the closest match for your beam type, span and project location.
