A circuit breaker is the one device in a building that has to work perfectly on the worst day of its life - and in the UAE that day is usually a 48°C summer afternoon, a panel running near full load and a fault that must be cleared in milliseconds. If a breaker "keeps tripping" or "failed to trip", the first question is rarely about the brand. It is whether it was the right type, rating and breaking capacity for the circuit.
Circuit breaker buying mistakes are almost always rating and type mistakes, not brand mistakes - MCB vs. MCCB vs. ACB, rated current vs. breaking capacity (kA), and whether the circuit also needs earth-leakage protection matter more than anything else. Protecting a villa socket circuit? You want a C-curve MCB with an RCD. Protecting a chiller feeder? You want an adjustable MCCB. Protecting a main incomer on a 415 V board? You want an ACB with the right Icu/Ics and trip unit. Each answer below points to the exact spec to quote your supplier.
These terms get used loosely on site, but each one is a distinct device built for a different job - mixing them up either wastes money on an oversized breaker or leaves a circuit under-protected.
| Feature | MCB | MCCB | ACB | RCCB / RCBO |
|---|---|---|---|---|
| Typical current | ~6-125 A | ~16-1600 A | ~800-6300 A | ~16-125 A |
| Typical use | Final circuits: lighting, sockets, small AC | Sub-mains, motor feeders, chillers, pumps | Main incomers, bus couplers, generator and transformer protection | Shock and earth-leakage protection (RCBO adds overload and short-circuit) |
| Settings | Fixed trip curve (B / C / D) | Fixed or adjustable thermal-magnetic / electronic | Fully adjustable electronic trip unit | Fixed 30 mA to 300 mA sensitivity |
| Breaking capacity | ~6-10 kA typical | ~25-100 kA typical | ~50-100 kA typical | Depends on the upstream breaker |
| Standard | IEC 60898-1 | IEC 60947-2 | IEC 60947-2 | IEC 61008 / 61009 |
So which one do you actually need? Protecting a villa lighting or socket circuit? You need an MCB, plus an RCCB or RCBO for people protection. Feeding a chiller, pump set or floor distribution board? That is MCCB territory. Controlling the main incomer of a 415 V switchboard? You need an ACB. A breaker that stops overload does not stop electric shock - that is an RCD's job.

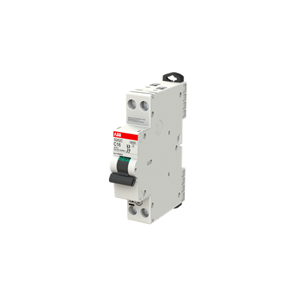

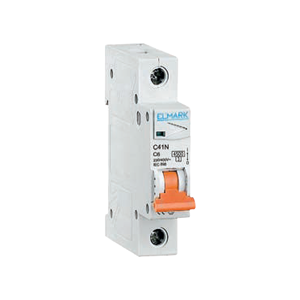

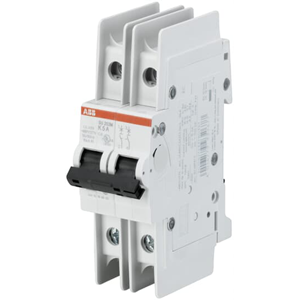

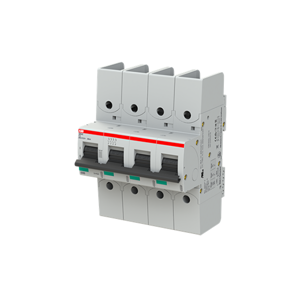

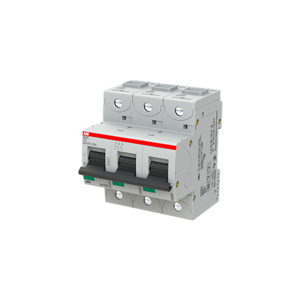

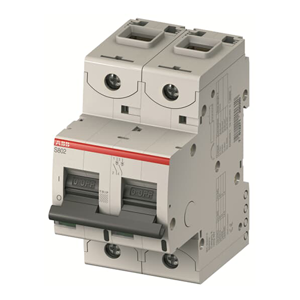

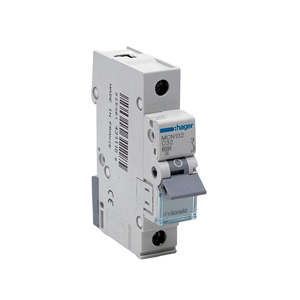

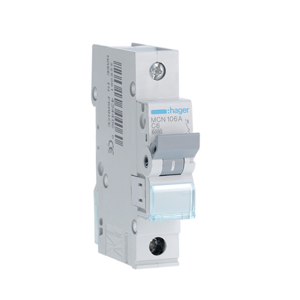

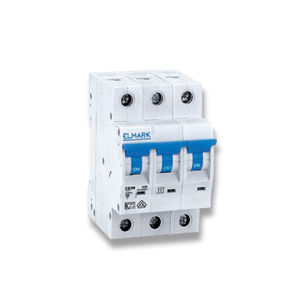

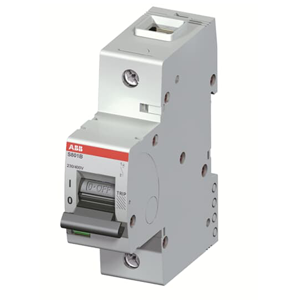

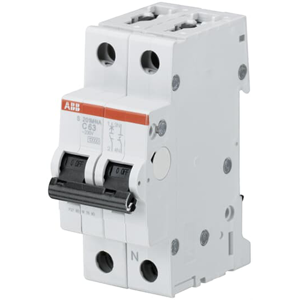

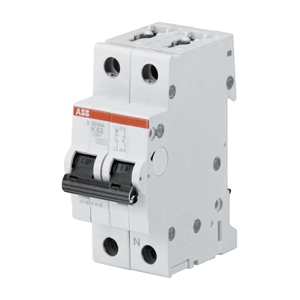

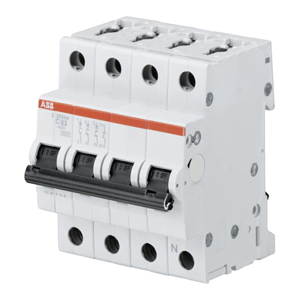

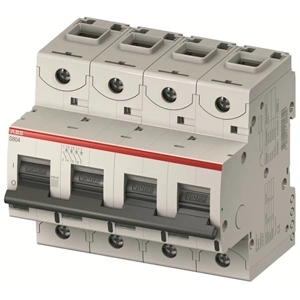

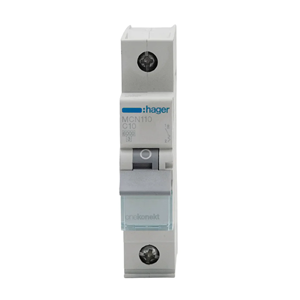

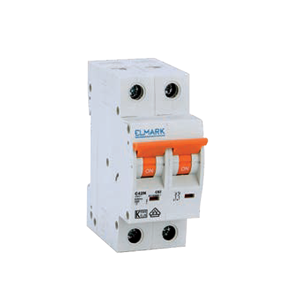

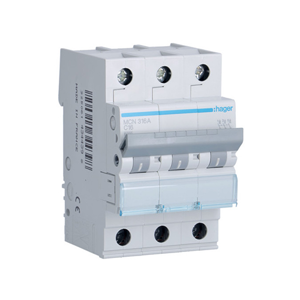

The workhorse of every distribution board. MCBs protect individual circuits against overload and short circuit and reset after the fault is cleared.

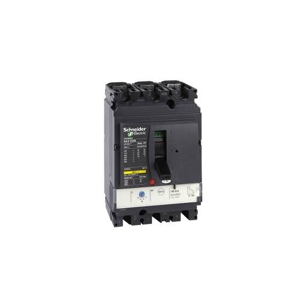

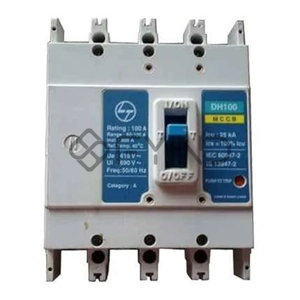

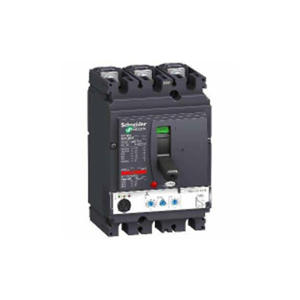

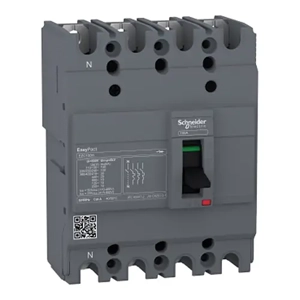

MCCBs sit between the incomer and the final circuits, protecting sub-main cables, motor starters, pumps and chillers. Larger frames offer adjustable protection settings.

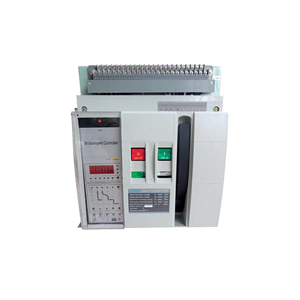

ACBs protect the heart of a low-voltage switchboard - transformer incomers, generator incomers and bus couplers - and are built to be serviced and re-used for decades.

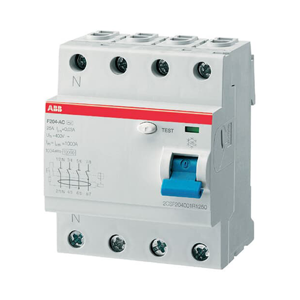

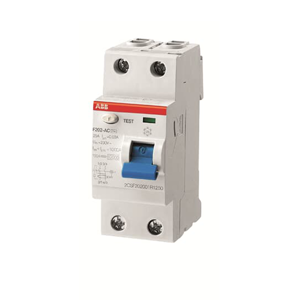

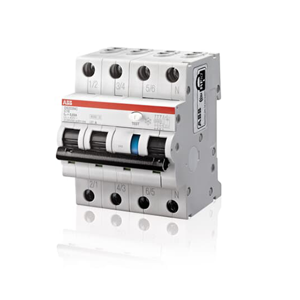

Residual-current devices detect current leaking to earth and open the circuit before a shock becomes dangerous. An RCBO combines this with overload and short-circuit protection in one unit.
Compact protectors for 24 V DC control supplies feeding PLCs, sensors and relays. They limit current precisely on short-circuit so one faulty sensor does not take down the whole control panel.
| Your Situation | Recommended Type | Why |
|---|---|---|
| Villa or apartment lighting and socket circuits | MCB (B or C curve) plus RCCB / RCBO | Overload and short-circuit protection plus shock protection |
| Split AC unit or cooker connection unit | Dedicated MCB (C curve) sized to the cable | A 20 A or 45 A connection plate needs its own correctly rated circuit |
| Chiller, pump set or large motor feeder | MCCB with adjustable settings (or MCCB + motor starter) | Handles motor inrush and allows coordinated protection |
| Floor or tenant sub-distribution board | MCCB incomer + MCBs on outgoing ways | Localises faults and keeps other floors live |
| Main incomer on a 415 V switchboard | ACB with electronic trip unit | High breaking capacity, adjustable settings and discrimination |
| 24 V DC control panel / PLC supply | Electronic circuit protector | Protects each DC channel individually |
| EV charger, solar inverter or drive circuit | RCD Type A or B as specified by the equipment maker | Equipment can produce DC leakage that a basic RCD may miss |
Knowing what is inside the housing helps you ask better questions and understand what a quote includes.
| Component | What It Does | What to Ask |
|---|---|---|
| Trip unit | Senses overload and short circuit and tells the breaker to open (thermal-magnetic or electronic) | Fixed or adjustable? Which protection functions (L, S, I, G)? |
| Contacts and arc chute | Carry the current and extinguish the arc when the breaker opens | Rated breaking capacity and contact condition on service units |
| Operating mechanism | Opens and closes the contacts quickly and holds them closed | Manual, motor-operated or drawout? |
| Terminals and busbar connections | Connect cables or busbars to the breaker | Terminal type, cable size range and shrouds |
| Shunt trip / undervoltage release | Opens the breaker remotely or on loss of supply | Coil voltage and compatibility with the specific frame |

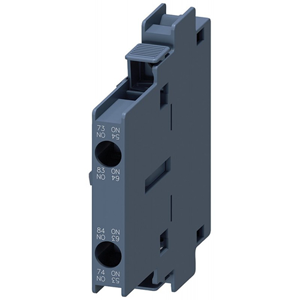

| Auxiliary and alarm contacts | Signal breaker status to control and BMS systems | Number and type of contacts needed |
| Enclosure / panel | Houses the breaker and sets IP rating and heat dissipation | IP rating, ventilation and IEC 61439 assembly compliance |
| Rating | What It Means | What to Check |
|---|---|---|
| Rated current (In) | The current the breaker is designed to carry continuously | Must suit the cable and the load |
| Breaking capacity (Icu / Ics) | The highest fault current it can safely interrupt (ultimate / service) | Must equal or exceed the fault level at the board |
| Poles (1P-4P) | How many conductors it switches | 4P where the neutral must also be switched |
| Trip curve B / C / D | Magnetic trip at about 3-5x, 5-10x and 10-20x rated current | Match to lighting, general or high-inrush loads |
| Rated voltage | The system voltage it is certified for | 380 / 400 / 415 V for three-phase UAE systems |
Why heat matters. Most breakers are calibrated at a reference ambient of 30°C or 40°C. A sealed panel in a rooftop riser or plant room can run far hotter than the air outside, and thermal elements trip earlier as temperature rises. A 100 A breaker may carry noticeably less at 50°C - read the maker's derating table, ventilate or cool the panel, avoid packing breakers tightly, and derate the cable as well as the breaker.
Standards and approvals. Breakers follow IEC 60898-1 (MCB), IEC 60947-2 (MCCB / ACB) and IEC 61008 / 61009 (RCCB / RCBO); the switchboard they sit in follows IEC 61439. Projects also work to the local utility - DEWA in Dubai, SEWA in Sharjah, ADDC / TAQA distribution in Abu Dhabi and Al Ain, and FEWA in the northern emirates - and consultants often specify approved makes. Ask for certificates and check the approved-manufacturers list before you order.

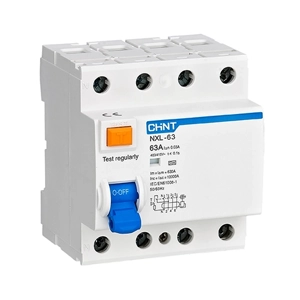

Al Motaal Electric Ware Trading supplies CHINT circuit breakers for electrical distribution, equipment protection and industrial applications in the UAE. Its circuit breaker range includes miniature circuit breakers (MCBs), moulded case circuit breakers (MCCBs), air circuit breakers (ACBs), DC circuit breakers and residual current protection devices.
Buyers can explore different breaker series and select suitable options based on rated current, number of poles, operating voltage, breaking capacity and installation requirements.
| Circuit Breaker Type | Available Series / Models | Typical Selection Requirements |
|---|---|---|

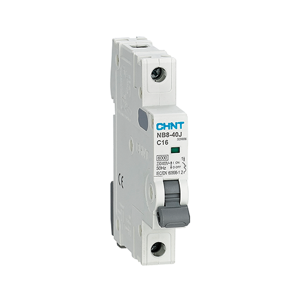

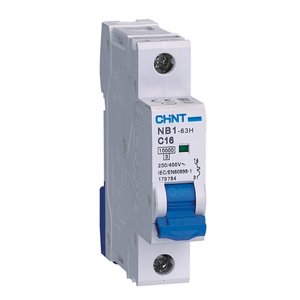

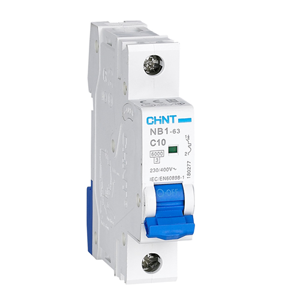

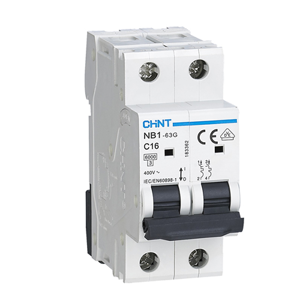

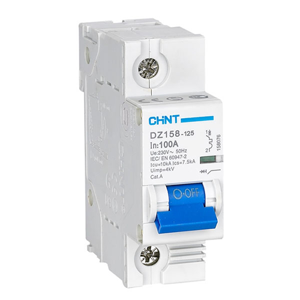

| Miniature Circuit Breakers (MCBs) | NB1 63G, NB1 63DC, eB and eBC series | Rated current, poles, voltage, tripping characteristic and breaking capacity |
| Moulded Case Circuit Breakers (MCCBs) | NM1 and NXM series | Current rating, poles, rated voltage, breaking capacity and installation type |

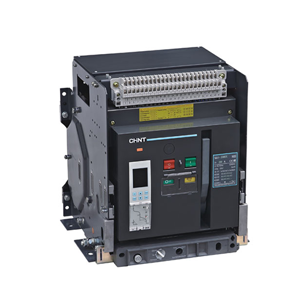

| Air Circuit Breakers (ACBs) | NXA and NA1 series | Rated current, frame size, poles, operating voltage and breaking capacity |

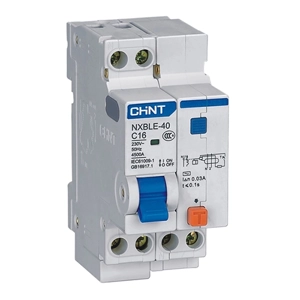

| Residual Current Protection | NXBLE series | Rated current, residual operating current, poles and required protection configuration |
Product configurations and specifications vary by model. Confirm the exact part number, rated current, voltage, pole configuration and breaking capacity before ordering.
When contacting Al Motaal Electric Ware Trading, share the following details to help identify a suitable breaker:
Looking for CHINT circuit breakers in the UAE? Browse the available circuit breaker listings and contact Al Motaal Electric Ware Trading in Sharjah to enquire about product specifications, availability and pricing.
Supplier: Al Motaal Electric Ware Trading
Location: Sharjah, UAE
Phone: 055 423 3935
Product range: CHINT circuit breakers
Power and Technology Trading Company LLC supplies electronic circuit protection products for control panels and industrial automation applications in the UAE. Its FYIND product listings feature Omron S8V-CP electronic circuit protectors designed for 24 V DC power circuits. These devices help protect connected control equipment against electrical overloads, making them relevant to automation panels, machinery and industrial control systems.
Location: Sharjah, UAE
Phone: +971 6 542 1300
Brand: Omron
Product Focus: S8V-CP electronic circuit protectors
| Product Model | Power Supply / Output Voltage | Number of Outputs | Brand |
|---|---|---|---|
| S8V-CP0824 | 24 VDC | 8 | Omron |
| S8V-CP0424 | 24 VDC | 4 | Omron |
Important: An electronic circuit protector for 24 V DC control circuits is different from an MCB, MCCB or ACB used for conventional power distribution. Confirm the required protection device type before purchasing.
The supplier's FYIND listings also feature cable chains, hydraulic hoses, photoelectric sensors and H7CX digital counter models. These products may be relevant to machine builders, control-panel manufacturers and industrial maintenance teams sourcing automation components.
Looking for Omron electronic circuit protectors in the UAE? Explore the available S8V-CP models and contact Power and Technology Trading Company LLC in Sharjah to enquire about specifications, availability and pricing.
Three Phase Technical Services LLC provides electrical services and lists circuit breakers through its FYIND supplier store. Its circuit breaker listings cover miniature circuit breakers (MCBs), moulded case circuit breakers (MCCBs), air circuit breakers (ACBs) and residual current circuit breakers. The company is also relevant for projects requiring ACB switchgear supply and installation, circuit breaker rectification and electrical equipment maintenance.
Dubai, UAE
Phone: +971 4 396 4086
Main Categories: Circuit Breakers, Switchgear and Related Devices Installation Service, Electrical Equipment Maintenance and Repair Service, Electrical Inspection Service
| Circuit Breaker Type | Listed Product | Typical Application |
|---|---|---|
| Miniature Circuit Breaker (MCB) | Miniature Circuit Breakers | Protection of suitable low-current electrical circuits |
| Moulded Case Circuit Breaker (MCCB) | Moulded Case Circuit Breaker | Overcurrent protection in distribution and industrial systems |
| Air Circuit Breaker (ACB) | Air Circuit Breaker | Main distribution boards and low-voltage switchgear, subject to system requirements |
| Residual Current Circuit Breaker | Residual Current Circuit Breakers | Residual-current protection where required by the electrical design |
To identify a suitable circuit breaker or service, provide the following details:
Need circuit breakers or ACB switchgear services in Dubai? Explore the available circuit breaker listings and contact Three Phase Technical Services LLC to enquire about product specifications, supply, installation, rectification and pricing.
Universe Middle East General Trading LLC offers a range of Schneider Electric and ABB circuit breakers through its FYIND supplier store. Its listed products include Acti9 iC60N and iC60H miniature circuit breakers, ABB S200 series MCBs, Schneider Electric TeSys GV2 motor circuit breakers and residual current circuit protection devices. These products serve different circuit protection requirements across electrical distribution boards, control panels and motor circuits.
Dubai, UAE
Phone: +971 4 263 0773
Brands: Schneider Electric and ABB
Product Range: Miniature Circuit Breakers, Motor Circuit Breakers and Residual Current Circuit Breakers
| Brand | Product Series / Model | Circuit Breaker Type | Listed Specifications |
|---|---|---|---|
| Schneider Electric | Acti9 iC60N | Miniature Circuit Breaker (MCB) | Multiple listed models |
| Schneider Electric | Acti9 iC60H | Miniature Circuit Breaker (MCB) | Multiple listed models |

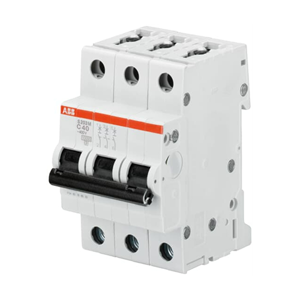

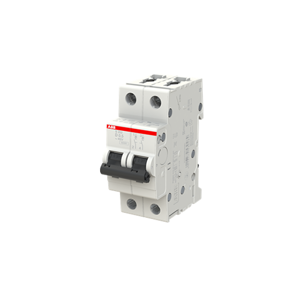

| ABB | S202 C6 | Miniature Circuit Breaker (MCB) | 6 A, C-curve designation |

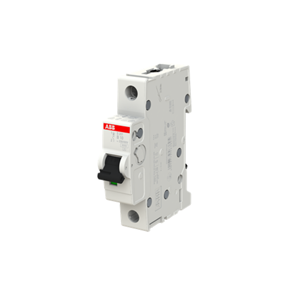

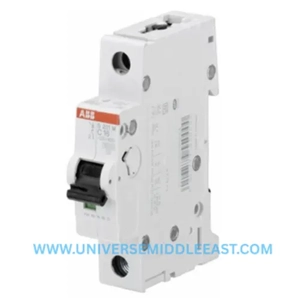

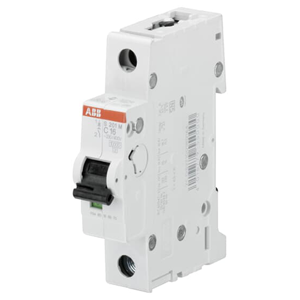

| ABB | S201M C6 | Miniature Circuit Breaker (MCB) | 6 A, C-curve designation |

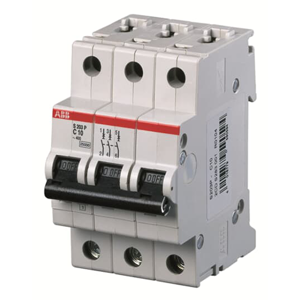

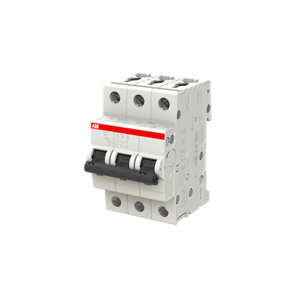

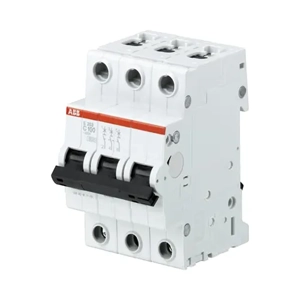

| ABB | S203 C100 | Miniature Circuit Breaker (MCB) | 100 A, C-curve designation |

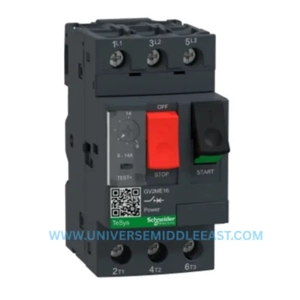

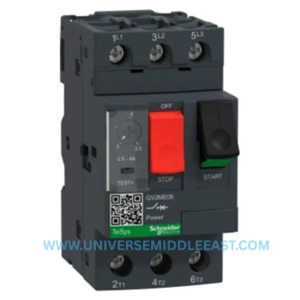

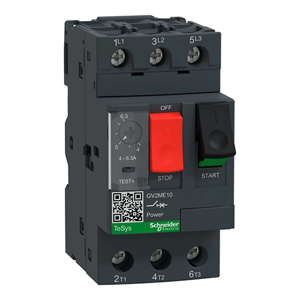

| Schneider Electric | TeSys GV2 | Motor Circuit Breaker | Multiple listed models |
| Schneider Electric | GV2ME14 | Motor Circuit Breaker | 10 A |
| Schneider Electric | A9N61514 series | Miniature Circuit Breaker | Confirm exact model configuration |
| Schneider Electric | Residual Current Circuit Breaker | Residual Current Protection | Confirm rated current and residual operating current by model |
When enquiring with Universe Middle East General Trading LLC, provide the brand, complete model number, rated current, operating voltage, number of poles, breaking capacity and required quantity. For motor circuit breakers, include the motor nameplate details to help establish suitability.
Looking for Schneider Electric or ABB circuit breakers in Dubai? Browse Universe Middle East General Trading LLC's circuit breaker listings and enquire about product availability, technical specifications and pricing.

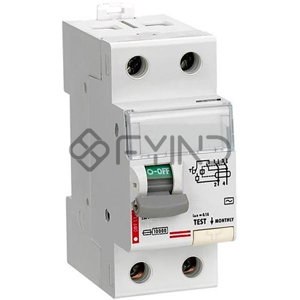

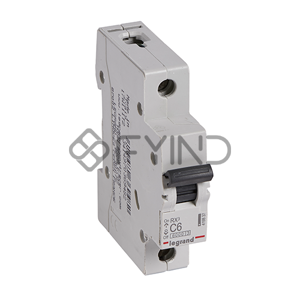

Woodmark Building Materials Tr LLC offers a range of Legrand circuit breakers through its FYIND supplier store in Dubai, UAE. The listed products include miniature circuit breakers (MCBs) with C-curve tripping characteristics and a 6 kA breaking capacity, as well as moulded case circuit breakers (MCCBs) with different rated currents, pole configurations and breaking capacities. The range supports buyers sourcing circuit protection devices for suitable residential, commercial and industrial electrical installations.
Supplier: Woodmark Building Materials Tr LLC
Location: Dubai, UAE
Brand: Legrand
Product Range: Miniature Circuit Breakers (MCBs) and Moulded Case Circuit Breakers (MCCBs)

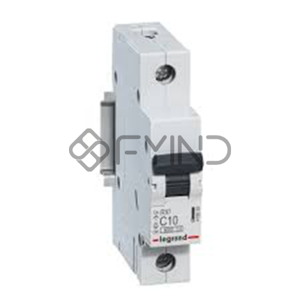

| Reference / Model | Breaker Type | Rated Current | Poles | Breaking Capacity |
|---|---|---|---|---|
| 419841 | MCB, C Curve | 20 A | 1 | 6 kA |
| 419842 | MCB, C Curve | 25 A | 1 | 6 kA |
| 419884 | MCB, C Curve | 16 A | 3 | 6 kA |
| 419888 | MCB, C Curve | 40 A | 3 | 6 kA |
| 419889 | MCB, C Curve | 50 A | 3 | 6 kA |
| 27094 | MCCB | 40 A | 3 | 25 kA |
| 27261 | MCCB | 63 A | 3 | 25 kA |
| 420055 | MCCB | 100 A | 4 | 25 kA |
Looking for Legrand circuit breakers in Dubai? Explore Woodmark Building Materials Tr LLC's product listings and enquire about model availability, technical specifications and pricing.
Silver Waves Electrical Equipment Trading lists miniature circuit breakers (MCBs), residual current circuit breakers with overcurrent protection (RCBOs), and residual current devices (RCDs) on its FYIND supplier store. The visible product range includes B-curve and C-curve MCBs, Type AC and Type A RCBOs, and Type AC and Type A RCDs. Buyers can enquire about model availability, rated current and other specifications for their electrical installation requirements.
Abu Dhabi, UAE
Phone: +971 2 445 6339
Product Range: Miniature Circuit Breakers (MCBs), Residual Current Circuit Breakers with Overcurrent Protection (RCBOs), and Residual Current Devices (RCDs)
| Product Type | Model / Series Listed | Visible Specification |
|---|---|---|
| MCB | CUMB10 | B curve, 10 A |
| MCB | CUMB6 | C curve, 6 A |
| MCB | CUMB16 | C curve, 16 A |
| MCB | CUMB40 | C curve, 40 A |
| RCBO | CUCRB40 | Type AC |
| RCBO | CUCRB40A | Type A |
| RCBO | CUCRC20A | Type A |
| RCBO | CUCRB20A | Type A |
| RCBO | CUCRC10 | Type AC |
| RCBO | CUCRB10A | Type A |
| RCBO | CUCRC6 | Type AC |
| RCBO | CUCRB6A | Type A |
| RCBO | CUCRC32 | Type AC |
| RCD | CUR6330 / CUR6330A | Type AC / Type A, respectively |
| RCD | CUR8030 / CUR8030A | Type AC / Type A, respectively |

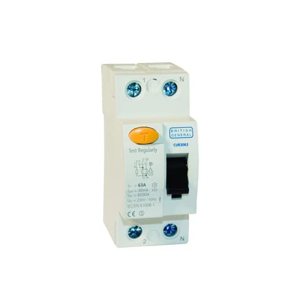

| RCD | CUR10030A | Type A |
The supplier store displays 24 circuit protection product listings. The table above highlights the model names and designations readable in the supplied screenshots; it is not an exhaustive transcription of all 24 listings.
Looking for MCBs, RCBOs or RCDs in Abu Dhabi? Contact Silver Waves Electrical Equipment Trading to confirm availability, exact model specifications and pricing for your project.
Elextric Electronics Trading lists Schneider Electric miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs) and other circuit protection products through its FYIND supplier store and official website. Its listed models include Domae MCBs, Acti9 iC60N miniature circuit breakers, C120N circuit breakers and Acti9 iID RCCBs. Buyers can enquire about model availability, electrical ratings and pricing for replacement requirements, distribution boards and commercial electrical projects.
Abu Dhabi, UAE
Phone: +971 50 286 0824
Brand: Schneider Electric
Product Range: Miniature Circuit Breakers (MCBs), Residual Current Circuit Breakers (RCCBs) and circuit protection devices
| Model | Product Type | Listed Specifications |
|---|---|---|

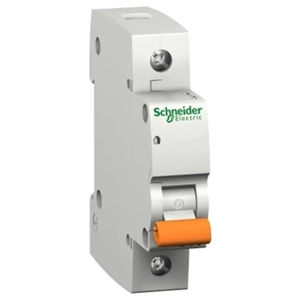

| 17046 | Domae MCB | 16 A, single pole (1P); 230 V AC stated in the product title; dimensions listed as 18 × 78.5 × 81 mm |
| 17047 | Domae MCB | 20 A, single pole (1P) |
| A9F77363 | Acti9 iC60N MCB | 63 A, three pole (3P); C-curve designation shown in the listing |
| A9N18369 | C120N circuit breaker | 125 A, three pole (3P); dimensions listed as 81 × 81 × 73 mm; operating temperature listed as −25°C to +70°C |
| A9R12463 | Acti9 iID RCCB | 63 A, four pole (4P), 100 mA residual-current sensitivity, Type AC |
| A9R12491 | Acti9 iID RCCB | 100 A, four pole (4P), 100 mA residual-current sensitivity, Type AC |
The models and ratings above are based on the supplier listings and product information reviewed. Confirm the complete manufacturer datasheet and current availability before ordering, particularly breaking capacity, tripping characteristics, voltage ratings and compatibility with the installation.
Looking for Schneider Electric MCBs or RCCBs in Abu Dhabi? Contact Elextric Electronics Trading to enquire about the required model, specifications, availability and pricing.
A breaker sized correctly on paper trips at 45-50°C because heat inside a sealed panel reduces what it can carry. Fix: check the load with a clamp meter, ventilate or cool the panel, read the derating table and, if needed, move to a higher frame - not a bigger breaker on the same cable.
A 6 kA MCB fitted near a transformer that can deliver far more fault current may fail dangerously on a short circuit. Fix: get the prospective fault current from the consultant or a short-circuit study and specify a breaker with a matching or higher Icu / Ics.
Cheap look-alikes copy famous brand markings but may fail to open under fault or overheat at rated current - a serious fire risk. Fix: buy from an authorised or traceable supplier, ask for datasheets, warranty and batch codes, and use the fake-breaker checks below.
When the main incomer trips instead of the nearest breaker, discrimination (selectivity) between upstream and downstream devices is poor. Fix: coordinate breaker ratings and settings, ideally with a protection study, so only the device closest to the fault opens.
Sand and dust build up inside ACBs and boards, and breakers that are never exercised can stick or drift out of calibration. Fix: schedule annual cleaning, contact inspection, torque checks, trip testing and a thermographic scan with a qualified service company.
A shunt trip that does not match the frame, or a large ACB ordered weeks before commissioning, can delay handover. Fix: confirm accessory compatibility and stock position at quotation stage, and order large frames early.
Some trading entities list a wide product range alongside a different specialism (wiring accessories, test instruments, control parts) - worth confirming before assuming deep stock or product knowledge. Fix: ask directly for the exact make, rating and datasheet, and use the suppliers above for what they do best.
A general market guide - not a statement of what any one supplier stocks. Always confirm brand, series and availability.
| Brand | Commonly Seen Ranges | Typical Positioning |
|---|---|---|

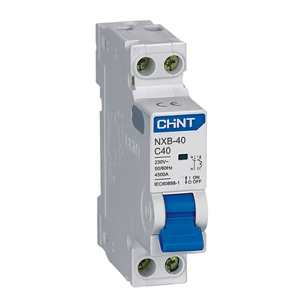

| CHINT | NXA air circuit breakers, NXM / NM moulded case, NXB miniature | Value-to-mid range, widely used in commercial and industrial projects |
| Schneider Electric | Acti9 (MCB / RCBO), Compact NSX (MCCB), Masterpact (ACB) | Premium, common on towers, hotels and infrastructure |

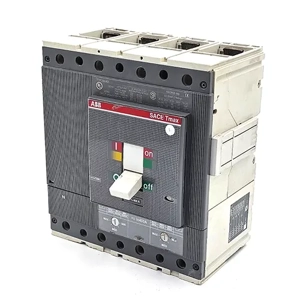

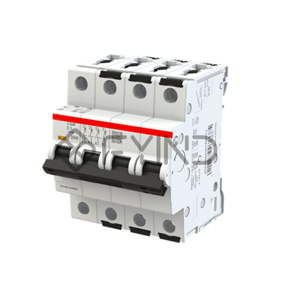

| ABB | System pro M (MCB), SACE Tmax XT (MCCB), SACE Emax 2 (ACB) | Premium, strong in industrial and oil & gas |
| Siemens | SENTRON 5SL (MCB), 3VA (MCCB), 3WA / 3WL (ACB) | Premium, common in industrial and utility work |

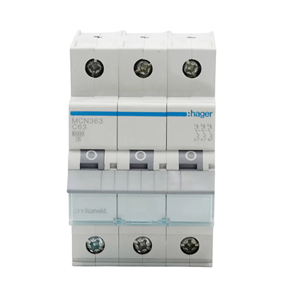

| Legrand, Hager, Eaton | DX3 / DPX3, Hager MCB and MCCB ranges, Eaton xEnergy / NZM | Mid to premium, strong in residential and commercial distribution |
| LS Electric, Mitsubishi, Omron | MCCB / ACB ranges (LS, Mitsubishi); control-circuit protectors (Omron) | Industrial and control applications |
| Buyer | Likely Need | Start With |
|---|---|---|
| Panel builders and switchboard makers | MCCBs, ACBs, contactors, overload relays | Al Motaal Electric Ware Trading; Universe Middle East |
| Owners replacing a failed main breaker | ACB supply, installation or rectification | Three Phase Technical Services LLC |
| Machine builders and automation integrators | 24 V DC electronic protectors, sensors, timers | Power and Technology Trading Company LLC |
| Villa and apartment contractors | MCB / RCBO boards plus connection plates and switches | Woodmark (Dubai), Silver Waves (Abu Dhabi) - confirm breakers separately |
| Facility maintenance teams | Clamp meters, testers and service support | Elextric Electronics Trading; Three Phase Technical Services |
| Drive and motor-control projects | VFDs, contactors, HMIs | Universe Middle East General Trading LLC |
Planning your budget? The table below gives indicative UAE market prices by product format. Actual costs vary by brand, rating, breaking capacity, trip unit and quantity ordered.
| Product Format | Typical UAE Price (AED) | Factors Affecting Price |
|---|---|---|
| MCB, 1P, 6-63 A (final circuits) | AED 10 - 60 per pole | Brand, rating, curve, quantity. |
| MCB, 3P / 4P, up to 125 A | AED 60 - 400 | Brand, poles, breaking capacity. |
| RCCB / RCBO, 30 mA | AED 60 - 350 | Type (AC / A / B), rating, brand. |
| MCCB, 3P, 100-250 A | AED 300 - 3,000 | Brand, kA rating, trip unit type. |
| MCCB, 3P, 400-1600 A | AED 1,500 - 12,000 | Frame size, brand, electronic trip unit, accessories. |
| ACB, 3P / 4P, 800-6300 A | AED 6,000 - 60,000+ | Frame, Icu / Ics, trip unit, fixed or drawout, accessories, lead time. |
| Electronic circuit protector (24 V DC) | AED 150 - 600 | Channels, current rating, brand. |
Disclaimer: Prices shown are indicative UAE market estimates for buyer guidance only. Actual quotations vary based on brand, rating, accessories, quantity and supplier pricing. ACB rectification, installation and protection studies are quoted per site and scope.
A breaker rarely works alone - these FYIND suppliers cover the parts and tools around it.
What is the difference between MCB, MCCB and ACB?
An MCB is a small breaker for final circuits, usually up to about 125 A. An MCCB is a larger, moulded-case breaker used on sub-mains and motor feeders up to about 1600 A, often with adjustable settings. An ACB is the largest air breaker, used as the main incomer in low-voltage switchboards, with ratings into several thousand amps.
Why does my breaker keep tripping in summer?
Heat. At high ambient or panel temperatures a breaker carries less current before its thermal element trips, so a circuit that was fine in winter can trip in a 45-50°C summer. Check the load with a clamp meter, ventilate the panel and review the manufacturer's derating table rather than just fitting a bigger breaker.
What kA rating do I need for a circuit breaker?
The breaking capacity must be at least equal to the prospective short-circuit current where the breaker is installed. Villa MCBs are commonly 6-10 kA, while boards near a transformer or main incomer need higher-rated MCCBs or ACBs. Your consultant or a short-circuit study gives the figure.
What are B, C and D trip curves?
They describe how quickly the magnetic trip operates on a surge. B trips at about 3-5 times rated current for lighting and resistive loads, C at about 5-10 times for general use and small motors, and D at about 10-20 times for high-inrush loads such as transformers.
Do I need an RCCB as well as an MCB?
Usually yes for protection of people. An MCB protects wiring from overload and short circuit, but only an RCCB or RCBO detects earth leakage and protects against electric shock. Wet areas, sockets and villa circuits generally need residual-current protection.
How can I tell if a circuit breaker is fake?
Be suspicious of prices far below market, light or loose-feeling units, blurred or misspelled markings, missing rating information and packaging without proper documents. Buy from an authorised or traceable supplier and ask for the datasheet, warranty and batch codes that match the device.
What is the price range for circuit breakers in the UAE?
Indicative only - a 1P MCB can run AED 10-60, a 3P / 4P MCB AED 60-400, an RCCB or RCBO AED 60-350, an MCCB AED 300-12,000 depending on frame, and an ACB AED 6,000-60,000+ depending on frame, trip unit and accessories. Always confirm current pricing directly with the supplier.
Where can I buy circuit breakers in Dubai?
Three Phase Technical Services LLC handles ACB supply, installation and rectification in Dubai, Universe Middle East General Trading LLC supplies control-panel components, and Woodmark Building Materials Tr LLC supplies final-circuit wiring devices. Sharjah-based Al Motaal Electric Ware Trading lists CHINT air circuit breakers and is close to Dubai.
Where can I buy circuit breakers in Sharjah and Abu Dhabi?
In Sharjah, Al Motaal Electric Ware Trading and Power and Technology Trading Company LLC list circuit breakers among their products. In Abu Dhabi, Silver Waves Electrical Equipment Trading supplies wiring accessories and Elextric Electronics Trading supplies test instruments, so confirm breaker availability directly or send one request through FYIND to compare quotes.
Can I use any brand of breaker in a DEWA or SEWA project?
Not always. Utility authorities and project consultants often specify approved makes and require material approval, so check the approved-manufacturers list before ordering. A suitable breaker that is not on the list can still be rejected at inspection.
How often should an ACB or MCCB be serviced?
At least annually on main boards, and more often in dusty or hot plant rooms. Service includes cleaning, contact and mechanism inspection, torque checks, trip testing and a thermographic scan. Three Phase Technical Services LLC lists ACB rectification and electrical inspection services.
Can circuit breaker suppliers in Dubai deliver to Ajman, Ras Al Khaimah or Al Ain?
Most UAE electrical suppliers serve all emirates through direct delivery or courier, but delivery time, charges and minimum order differ. Confirm with the supplier for your site, and for urgent replacements ask about stock availability and same-day dispatch.
0
