20 products found for Control Cable Suppliers in KSA for Industrial Automation, Motor Control, Instrumentation, Building Management & Fire Safety

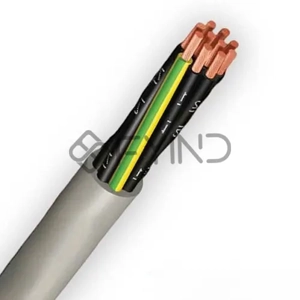

Control Cable

Game Console Controller Cable

Afaq Al Qima
International KSA

Control Cable

0.6 Or 1 kV Copper Conductor Control Cable

  • Size : 1.5 - 4 mm2
  • Standard : IEC 60502-1
  • Rated Voltage : 0.6/1 kV
Control Cable

High Quality Signal And Control Cable 0.75 mm2

  • Color : White, Brown, Green, Yellow, Gray
  • Voltage : 1200 VAC
  • Thickness : 0.4 mm
Control Cable

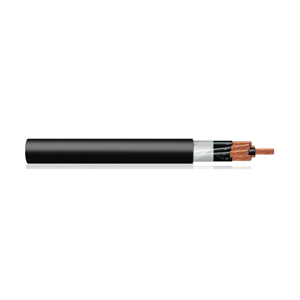

0.6/1 kV XLPE Insulated PVC Sheathed Binder Tape Copper Conductor Unarmoured Control Cable, 3, 9.8mm

  • Standard : IEC 60228 & BS EN 60228 IEC 60502-1 & IEC 60332-1
  • Net Weight : 145 kg/km
  • Model Number : 13511303
Bahra Electric
International KSA

Control Cable

Herz Can Bus Cable 3 F810 81

  • Length : 100 m
  • Quantity : 2 Reels
  • Product Code : 3 F810 81
Control Cable

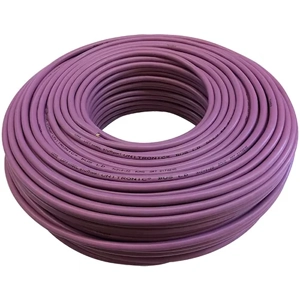

Can Bus Cable 3 F810 81

  • Length : 100 m
  • Quantity : 2 Reels
  • Product Code : 3 F810 81
Control Cable

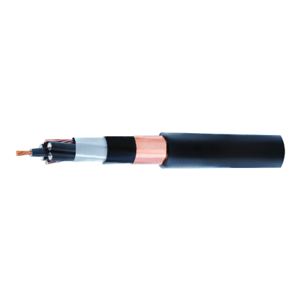

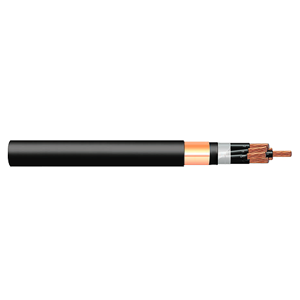

0.6 1 kV PVC Insulated Copper Tape Screened PVC Sheathed Control Cables CL018001 5 13.3mm

  • Standard : IEC 60502
  • Net Weight : 290 kg/km
  • Model Number : CL018001
Control Cable

Multi Core Cable CU / PVC Or XLPE Or LSFH/ PVC Or LSHF 16.3 mm 12.1 ohm/km

  • Diameter : 16.3 mm
  • Standard : IEC 60502-1
  • Conductor : Soft annealed stranded copper wires or soild copper
Energya Cables
International KSA

Control Cable

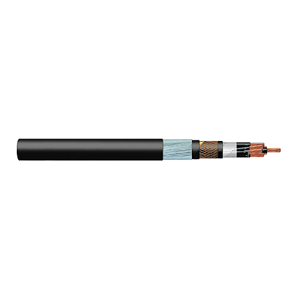

Instrumentation Cable 0.6 1Kv Armoured

  • Standard : IEC 60502-1
  • Armouring : Steel/Copper Tape, Wire
  • Jacketing : PVC/PE/LSHF compound
Control Cable

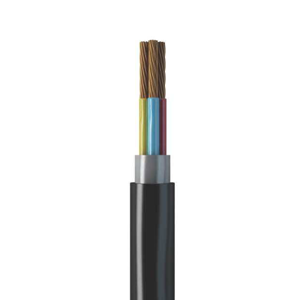

0.6 1 kV CU PVC PVC Multicore Control Cable, 1.5 mm2, 12.9 mm

  • Standard : IEC 60502-1
  • Number Of Core : 5
  • Overall Diameter : 12.9 mm
Control Cable

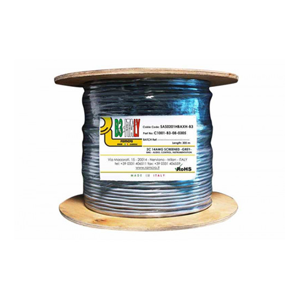

B3 C1225 Control Cable 305 m

  • Length : 305 m
  • Wire Size : 18 AWG
  • Product Code : C1225
Mejdaf
International KSA

Control Cable

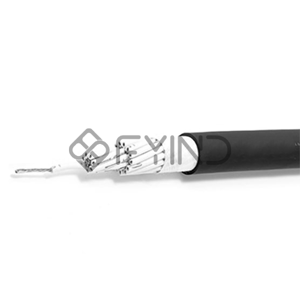

Control, Multi Core, Armored Cable 1.5 mm2, 970 kg/km

  • Core : 19
  • Finish : Galvanized
  • Weight : 970 kg/km
Control Cable

Unarmoured Building And Construction Control Cable 1.5 To 2.5 mm2

  • Size : 1.5 - 2.5 mm2
  • Attribute Set : Control Cable_Electrical Cables & Accessories
Control Cable

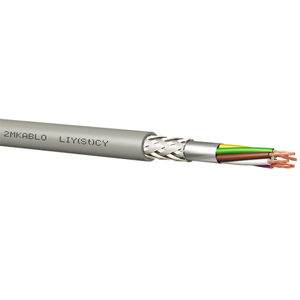

2MKABLO LIY St CY Control Cables 300 500 V

  • Size : 0.14 - 1.5 mm2
  • Model : LIY(St)CY
  • Insulation : PVC
Control Cable

Thermostat Cable 12 Core 1.5 mm2

  • Size : 1.5 mm2
  • Attribute Set : Control Cable_Electrical Cables & Accessories
Rimal House
Location : Riyadh

Control Cable

Shielded Control Cables 4000 V 8000 V

  • Standard : BS EN 50525-2-11, DIN EN 50525-2-11, VDE 0285-525-2-11, EN 50525-2-11
  • Test Voltage : 4000 V
  • Nominal Voltage : 300 / 500 V
Control Cable

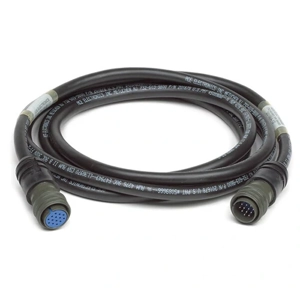

LINCOLN 14 Pin Heavy Duty Control Cable K1785 8 2.4 m

  • Model : K1785-8
  • Length : 2.4 m
Control Cable

Control Cables 690 V 4 To 20 mA

  • Voltage : 690 V
  • Warranty : 2 Years
  • Standards : IEC/ISO
Control Cable

IT 731133 01.00 Cable Control

  • Length : 1 m
  • Bending Radius : 200 mm
  • Product Number : IT-731133/01.00
Ziya corp
International KSA


Control Cable Suppliers in Saudi Arabia – Multicore, Screened, Armoured and Instrumentation Control Cable


Armoured · Foil and braid shielded · Flexible · Fire resistant · IEC 60502-1 · BS 5467

MESC, Jeddah Cables, Bahra Electric, Energya Cables, Asharqiyah Cables, Mejdaf, Rimal House and Modern Industrial Company are control cable suppliers in KSA.

Below are their exact products and estimated prices first, then the technical detail that decides which cable a panel, plant or building needs: core count, cross-section, screen, armour, voltage drop and derating.

Check the electrical cables category for all cable suppliers.

Quick answer: For armoured 0.6/1 kV multicore control cable, call MESC +966 11 265 0555 or Jeddah Cables +966 12 636 0770.

For stock in Riyadh, call Rimal House +966 56 081 6304 or Al Mousa +966 54 259 9697. For 22 AWG security and equipment control cable, call Asharqiyah +966 13 881 8419 or Mejdaf 9200 31331.

A 19-core 1.5 mm² armoured control cable costs about SAR 28–45 per metre (estimate).

Who are the control cable suppliers in KSA?

Supplier · Address · Phone

Five of these companies make control cable in Saudi Arabia (MESC, Jeddah Cables, Bahra, Energya and Asharqiyah); the rest supply from stock in Riyadh, Jeddah, Dammam, Jubail and Al Khobar.

SupplierSupplier addressPhone number
MESC Specialized CablesSalah Ad Din Al Ayyubi Road, As Sulimaniyah, Riyadh 12233 (factories in Riyadh 2nd Industrial City)+966 11 265 0555
Jeddah Cables CompanyIndustrial City Phase III, PO Box 31248, Jeddah 21497+966 12 636 0770
Bahra ElectricBin Laden Complex, Bahrah 22846 (between Jeddah and Makkah)+966 12 591 1115
Energya CablesRabigh 25755 (plant)+966 54 314 4394
Asharqiyah Cables3816 Prince Musaid Street, Ibn Sina, Al Khobar 34425+966 13 881 8419
MejdafAl Baladiyah Street, Al Aziziyah, Jeddah 23333 (branches in Riyadh, Dammam and Yanbu)9200 31331
Rimal HouseAl Adl Al Waez Street, Al Amal, Riyadh 12643+966 56 081 6304
Al Mousa Specialized Cables Trading EST.Al Adl Al Waez Street, Al Amal, Riyadh 12643 (branches in Dammam and Jubail)+966 54 259 9697
United Force Trading CompanyAl Bathaa, Gurabi, Riyadh 11461+966 11 209 5301
Saleh & Abdulaziz Abahsain Company LimitedLincoln Electric KSA (Abahsain Welding Division), King Fahd Road, Qurtoba, Al Khobar 34235+966 55 604 2206
Amwaj Telecommunication Factory (ATC)Bagaa Street, Al Manakh, Riyadh 14316+966 11 400 9204

MESC Specialized Cables

MESC (Middle East Specialized Cables) was founded in Riyadh in 1993 and makes control, instrumentation, low-voltage and fire-resistant cable. It holds ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018.

Why choose MESC, in its own list: high performance cables, customer service, wide range, worldwide logistics, emergency stocks and express deliveries, advanced supply chain solutions, and consultancy, engineering and turnkey projects. Reviewers say it also makes Belden-equivalent cable for oil and gas projects.

Products supplied:

ProductDetails
Control, Multi Core, Armored Cable 1.5 mm², 970 kg/km19 cores x 1.5 mm², 600/1000 V, BS 5467, XLPE insulation 0.6 mm, galvanised steel wire armour, PVC sheath, about 22 mm, 970 kg/km, 12.1 Ω/km at 20 °C
  • Business type: Manufacturer
  • Address: Salah Ad Din Al Ayyubi Road, As Sulimaniyah, Riyadh 12233 (factories in Riyadh 2nd Industrial City)
  • Contact: +966 11 265 0555 · inquiry@mesccables.com · Send Enquiry on the fyind profile
  • Opening hours: Sunday to Thursday 8 am to 5 pm; Friday and Saturday closed
  • Google rating: 4.1 ★ (21 reviews) · Read reviews and get directions
  • Price: factory prices; quoted per drum
  • Quality and certification: ISO 9001, 14001 and 45001; BASEC, LPCB and UL marks shown on its website
  • Delivery time: emergency stocks and express deliveries offered

“Highly professional & technical company in instrumentation, control, LV & Fire resistant cables.” – Google reviewer

Questions to ask:

  • Which core counts do you stock in 1.5 and 2.5 mm² BS 5467 cable?
  • Can you send a Belden cross-reference for shielded pairs?
  • Is the cable on the Aramco or SEC approved list for our project?

View the MESC Specialized Cables profile on fyind · Google Maps · Call +966 11 265 0555

Jeddah Cables Company

Jeddah Cables Company (JCC) runs CV and VCV (Vertical Continuous Vulcanization) lines and a dedicated 500 kV EHV type test laboratory, with in-house testing and certification to IEC, BS, ASTM, ICEA, AEIC, NEC and UL. It holds ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018.

For control circuits it makes 0.6/1 kV armoured control cable from 2 to 37 cores, with or without a copper screen, packed on returnable or non-returnable wooden or steel drums.

Products supplied:

ProductDetails
Control Cable – Armored without Screen (CU/PVC/STA/PVC)2–37 cores, 1.5–4 mm², 0.6/1 kV, IEC 60502-1 and IEC 60228, soft annealed stranded copper, PVC insulation, STA or SWA armour, PVC sheath
Control Cable – Armored with Screen (CU/PVC/CWS/STA/PVC)As above with a copper wire screen (CWS) or copper tape screen (CTS) under the armour
  • Business type: Manufacturer
  • Address: Industrial City Phase III, PO Box 31248, Jeddah 21497
  • Contact: +966 12 636 0770 · info@cables.energya.com · Send Enquiry on the fyind profile
  • Opening hours: Sunday to Thursday 8:30 am to 6 pm; Friday and Saturday closed
  • Google rating: 4.2 ★ (194 reviews) · Read reviews and get directions
  • Price: factory prices per drum
  • Quality and certification: ISO 9001, 14001 and 45001; in-house testing to IEC, BS, ASTM, ICEA, AEIC, NEC and UL
  • Delivery time: made in Jeddah; confirm production slot for large orders

“All of them are professional. So, friendly and cooperative.” – Google reviewer

Questions to ask:

  • Is the screen CWS or CTS, and what is its cross-section for earthing?
  • Can you supply STA for direct burial and SWA for tray runs?
  • What drum lengths are standard for 19- and 37-core cable?

View the Jeddah Cables Company profile on fyind · Google Maps · Call +966 12 636 0770

Bahra Electric

Bahra Electric runs the Bahra Cables factory between Jeddah and Makkah, making wires, power and control cable. It reports 550+ projects, 90% satisfied customers, 45+ international certifications and 1,900+ staff.

Its control range includes 0.6/1 kV XLPE/PVC unarmoured control cable and flame-retardant steel wire armoured cable for industrial plants.

Products supplied:

ProductDetails
XLPE/PVC Unarmoured Control Cable 4 mm²0.6/1 kV, IEC 60228, IEC 60502-1, IEC 60332-1; 205 kg/km
Flame-Retardant SWA 4-Core CableSteel wire armoured, flame retardant; for plant and outdoor control and power circuits
  • Business type: Manufacturer
  • Address: Bin Laden Complex, Bahrah 22846 (between Jeddah and Makkah)
  • Contact: +966 12 591 1115 · 800 124 8111 · info@bahra-electric.com · Send Enquiry on the fyind profile
  • Opening hours: Sunday to Thursday 9 am to 5 pm; Friday and Saturday closed
  • Google rating: 4.3 ★ (338 reviews) · Read reviews and get directions
  • Price: factory prices per drum
  • Quality and certification: 45+ international certifications; A2LA-accredited laboratory (ISO/IEC 17025)
  • Delivery time: standard drums from the factory

Questions to ask:

  • Which core counts do you make in XLPE/PVC control cable?
  • Is the flame-retardant cable tested to IEC 60332-3 for bunched trays?
  • Can you quote full drums delivered to site?

View the Bahra Electric profile on fyind · Google Maps · Call +966 12 591 1115

Energya Cables

Energya Cables has a cable plant in Rabigh on the Red Sea coast and is part of the same group as Jeddah Cables Company.

It makes multicore 0.6/1 kV cable with PVC, XLPE or LSHF insulation, steel tape armour and PVC or LSHF sheath, which suits armoured control and instrumentation circuits in plants and public buildings.

Products supplied:

ProductDetails
Multicore CU/PVC, XLPE or LSHF / STA / PVC or LSHF Cable0.6/1 kV, IEC 60502-1; steel tape armour; LSHF option for hospitals and public buildings
  • Business type: Manufacturer
  • Address: Rabigh 25755 (plant)
  • Contact: +966 54 314 4394 · Send Enquiry on the fyind profile
  • Google rating: 4.4 ★ (34 reviews) · Read reviews and get directions
  • Price: factory prices; quoted per drum
  • Quality and certification: IEC 60502-1; ask for type test reports
  • Delivery time: from the Rabigh plant; confirm lead time

“The best company for manufacturing high-quality power cables.” – Google reviewer

Questions to ask:

  • Do you make the armoured instrumentation cable with overall and individual pair screens?
  • Is LSHF available in all core counts?
  • What is the minimum order from Rabigh?

View the Energya Cables profile on fyind · Google Maps · Call +966 54 314 4394

Asharqiyah Cables

Asharqiyah Cables specialises in control, instrumentation, low-current, data, solar and LV wires and cables, plus fire alarm and fire-resistant cables that meet UL, IEC, BS and other international standards. Its office is in Al Khobar, close to oil, gas and petrochemical sites.

Its low-current range covers multi-core unshielded, foil-shielded and foil + braid shielded control cables for security and equipment control. Some Google reviewers advise a factory visit before a large order.

Products supplied:

ProductDetails

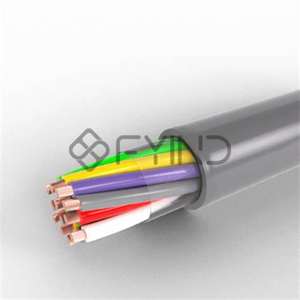

11 Core Unshielded 22 AWG Cable (IBB7-11C22AWG-UGR6I)11 cores, 22 AWG (0.33 mm²), unshielded; security and equipment control
Multi-core unshielded, foil-shielded and foil + braid shielded control cables2 to 12 cores; for access control, CCTV PTZ, alarms and equipment signals (ask for the full list)
  • Business type: Manufacturer
  • Address: 3816 Prince Musaid Street, Ibn Sina, Al Khobar 34425
  • Contact: +966 13 881 8419 · Send Enquiry on the fyind profile
  • Opening hours: Sunday to Thursday 8 am to 6 pm; Friday and Saturday closed
  • Google rating: 2.6 ★ (9 reviews) · Read reviews and get directions
  • Price: factory prices; quoted per box or drum
  • Quality and certification: UL, IEC and BS standards (company statement)
  • Delivery time: close to Dammam, Jubail and Abqaiq sites

Questions to ask:

  • Which core counts do you make in foil and foil + braid 22 AWG cable?
  • Can we inspect the factory and see test reports?
  • What is the lead time to Jubail?

View the Asharqiyah Cables profile on fyind · Google Maps · Call +966 13 881 8419

Mejdaf

Mejdaf is an electronics, communication and test-equipment supplier in Al Aziziyah, Jeddah, with branches in Riyadh, Dammam and Yanbu. Reviewers say it is sometimes the only authorised dealer for a brand.

It stocks B3 control cable in 305 m boxes for security, access control and equipment signals, and is a good first call for imported brands such as Belden.

Products supplied:

ProductDetails

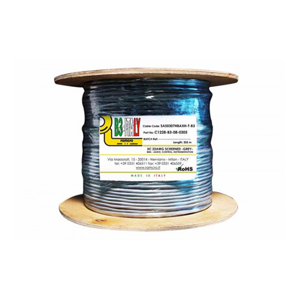

Control Cable 305 m Grey (B3 C1228)B3 brand, 22 AWG, grey, 305 m box
  • Business type: Supplier
  • Address: Al Baladiyah Street, Al Aziziyah, Jeddah 23333 (branches in Riyadh, Dammam and Yanbu)
  • Contact: 9200 31331 · Send Enquiry on the fyind profile
  • Opening hours: Saturday to Thursday 8 am to 7 pm; Friday closed
  • Google rating: 3.9 ★ (175 reviews) · Read reviews and get directions
  • Price: list prices per box; ask for project discounts
  • Quality and certification: authorised dealer for several brands, according to reviewers
  • Delivery time: stock in four cities

“You can trust on product supplied by them.” – Google reviewer

Questions to ask:

  • How many cores is the B3 C1228, and is it shielded?
  • Which branch holds stock?
  • Can you quote Belden control and instrumentation cable?

View the Mejdaf profile on fyind · Google Maps · Call 9200 31331

Rimal House

Rimal House is an electrical trading shop in Riyadh's Al Amal market. Its Rimal Groups website says it has supplied electrical materials since 2007, is ISO certified and works with brands such as Belden, Alfanar and Riyadh Cables.

It highlights quality assurance, customer service, competitive pricing and reliability, and sells flexible control cable by the roll for panels and machines.

Products supplied:

ProductDetails

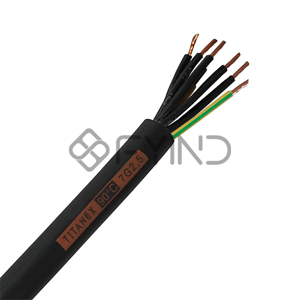

Flexible Control Cable 7 x 2.5 mm² Black7 cores x 2.5 mm², flexible (Class 5) copper, black sheath, sold by the roll
  • Business type: Supplier
  • Address: Al Adl Al Waez Street, Al Amal, Riyadh 12643
  • Contact: +966 56 081 6304 · Send Enquiry on the fyind profile
  • Opening hours: Saturday to Thursday 8 am to 1 pm and 4 to 8:30 pm; Friday closed
  • Google rating: 5.0 ★ (6 reviews) · Read reviews and get directions
  • Price: trade prices on request; reviewers call them reasonable
  • Quality and certification: ISO certified company; Riyadh Cables and Belden brands
  • Delivery time: stock items from Riyadh

“The staff were friendly and helpful, the products were good quality, and the prices were reasonable.” – Google reviewer

Questions to ask:

  • Do you cut flexible control cable to length?
  • Do you stock screened (CY) flexible control cable?
  • Can you supply Riyadh Cables SWA cable from stock?

View the Rimal House profile on fyind · Google Maps · Call +966 56 081 6304

Modern Industrial Company

Modern Industrial Company is a Saudi supplier that lists building and construction control cable on FYIND KSA.

Its unarmoured control cable in 1.5 to 2.5 mm² suits control circuits run in conduit or trunking inside buildings.

Products supplied:

ProductDetails
Unarmoured Building And Construction Control Cable 1.5 To 2.5 mm²Unarmoured, 1.5 to 2.5 mm²; building and construction control circuits
  • Business type: Supplier
  • Address:
  • Contact: Send Enquiry on the fyind profile
  • Price: quoted per roll or drum
  • Quality and certification: ask for the brand and standard
  • Delivery time: confirm stock and city when you enquire

Questions to ask:

  • Which core counts do you supply?
  • Which brand and standard is the cable made to?
  • Which city do you supply from?

View the Modern Industrial Company profile on fyind

Who supplies industrial control cables for oil and gas projects in Saudi Arabia?

MESC Specialized Cables (Riyadh), Asharqiyah Cables (Al Khobar, near Dammam, Jubail and Abqaiq) and Jeddah Cables Company make the armoured, screened control cable oil and gas projects specify.

Al Mousa Specialized Cables Trading EST. holds stock in Dammam and Jubail for site top-ups.

Oil and gas buyers usually need IEC 60502-1 or BS 5467 construction, SWA armour, IEC 60332-3 flame spread, and approval on the client's vendor list before ordering.

Which suppliers offer IEC and BS-compliant control cables in KSA?

StandardConstructionSuppliers
IEC 60502-10.6/1 kV PVC or XLPE, armoured or notJeddah Cables Company, Bahra Electric, Energya Cables, Al Mousa Specialized Cables Trading EST.
BS 54670.6/1 kV XLPE, SWA, PVC sheathMESC Specialized Cables
IEC 60228Conductor classes and resistanceAll manufacturers above
BS EN 50525-2-11300/500 V flexible PVC (shielded versions)ask Rimal House
UL, IEC and BS (fire-resistant)FR and fire alarm cableAsharqiyah Cables

These suppliers offer IEC and BS-compliant control and power cables for oil and gas, petrochemical and construction sectors; Jeddah Cables also tests to ASTM, ICEA, AEIC, NEC and UL in its own laboratory.

Before ordering: Check that the standard printed on the cable matches the specification, and ask for the type test report. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

What are the control cable brands offered by KSA suppliers?

MESC · Jeddah Cables · Riyadh Cables · B3 · Belden · Lincoln · Ramcro

BrandKnown forWhere to buy
MESCSaudi-made armoured control, instrumentation and FR cableMESC Specialized Cables
Jeddah CablesArmoured control cable, 2–37 coresJeddah Cables Company
BahraXLPE/PVC control and FR armoured cableBahra Electric
Riyadh CablesXLPE/PVC/SWA power and control cableRimal House
B322 AWG control cable in 305 m boxesMejdaf
BeldenIndustrial automation, process control and BMS cableMejdaf, Rimal House
Lincoln ElectricWelding equipment control cablesSaleh & Abdulaziz Abahsain Company Limited
RamcroItalian flexible control and instrumentation cableSee below

Which suppliers offer Ramcro control cables in Riyadh, Saudi Arabia?

Ramcro is an Italian maker of flexible control, screened and instrumentation cable for machines and automation.

None of the suppliers on this page confirms a Ramcro dealership, so for a Ramcro control cable supplier in Riyadh, ask Rimal House +966 56 081 6304 and Mejdaf (Riyadh branch, 9200 31331) to source it, or ask for a cross-reference: Ramcro's flexible PVC control cables are the same class (300/500 V, Class 5 copper, numbered cores) as the flexible cables these shops stock.

Where can I buy Belden control cables in Saudi Arabia?

Belden control and instrumentation cables · Mejdaf and Rimal House; MESC makes Belden-equivalent cable

  • Product specification: Shielded twisted pairs and multi-conductor cables, typically 18–24 AWG, foil or foil + braid, PVC or LSZH, UL and CSA listed.
  • How the specification is used: Twisted pairs reject magnetic noise; the shield rejects electric noise; drain wires let you earth the shield at one end. UL/CSA listings matter when US-designed equipment or NEC rules apply.
  • What it solves: Noise-free signals for industrial automation, process control and building management systems (BMS), where control panels sit next to VFDs and motors.
  • Price: About SAR 3–12 per metre depending on pairs and shield (estimate).
  • Why this supplier: Mejdaf is often an authorised dealer for imported brands and has four branches; Rimal House lists Belden among its brands; MESC can make equivalents locally if lead time is an issue.

Where can I buy multicore armoured control cables in KSA?

Control, Multi Core, Armored Cable 1.5 mm², 970 kg/km · MESC Specialized Cables

  • Product specification: 19 cores, 1.5 mm² stranded annealed plain copper, XLPE insulation 0.6 mm, galvanised steel wire armour, PVC sheath, 600/1000 V, BS 5467, about 22 mm, 970 kg/km, 12.1 Ω/km at 20 °C.
  • How the specification is used: 19 cores give 16 working circuits plus spares in one run from a field junction box to a marshalling panel. 12.1 Ω/km means a 24 V DC solenoid drawing 0.5 A loses about 3.6 V over 300 m (out and back), so check long runs. 22 mm diameter needs a CW-type gland for SWA cable; 970 kg/km means a 500 m drum weighs about 485 kg plus the drum.
  • What it solves: Running many control circuits through plants and outdoor trays with mechanical protection and an earthed armour.
  • Price: About SAR 28–45 per metre (estimate).
  • Why this supplier: MESC makes it in Riyadh with emergency stocks and express delivery, and holds ISO 9001, 14001 and 45001.

Control Cable – Armored without Screen (CU/PVC/STA/PVC) and Control Cable – Armored with Screen (CU/PVC/CWS/STA/PVC) · Jeddah Cables Company

  • Product specification: 2–37 cores, 1.5–4 mm², 0.6/1 kV, IEC 60502-1 and IEC 60228, PVC insulation, STA or SWA armour, PVC sheath; screened version adds CWS or CTS.
  • How the specification is used: STA (steel tape) is cheaper and suits direct burial; SWA (steel wire) carries more tensile load on vertical and long tray runs and is a better earth path. A copper screen under the armour cuts electrical noise between control and power cables in the same trench.
  • What it solves: One construction family for every control circuit size on a project, from 2-core signals to 37-core marshalling runs.
  • Price: About SAR 6–12 per metre for 4 x 1.5 mm² armoured; SAR 30–55 for 37 x 1.5 mm² (estimates).
  • Why this supplier: Jeddah Cables has its own type test laboratory and supplies on returnable steel or wooden drums.

Who supplies shielded control cables in Saudi Arabia?

Shielded Control Cables 4000 V 8000 V · ask Rimal House or Al Mousa Specialized Cables Trading EST.

  • Product specification: 300/500 V nominal, BS EN 50525-2-11 / VDE 0285-525-2-11, test voltage 4,000 V, breakdown voltage 8,000 V, flexing temperature −5 to +70 °C.
  • How the specification is used: "4000 V" and "8000 V" are test and breakdown figures, not the working voltage: the cable is rated 300/500 V, so use it for 24 V to 230 V control circuits only. The −5 to +70 °C flexing range covers moving machinery, but not hot surfaces above 70 °C.
  • What it solves: Electrical noise on control signals in machines and panels with drives, without a heavy armoured cable.
  • Price: About SAR 8–14 per metre for 4 x 1.5 mm² (estimate).
  • Why this supplier: Rimal House and Al Mousa stock flexible and screened cable in the Al Amal market; ask both to confirm the brand.

Which suppliers offer armoured instrumentation cables in KSA?

Instrumentation Cable 0.6/1 kV Armoured · ask Energya Cables, which makes this construction

  • Product specification: 0.6/1 kV, IEC 60502-1; insulation PVC, XLPE or LSHF; armour steel or copper tape, or wire; jacket PVC, PE or LSHF.
  • How the specification is used: Choose PE jacket for wet burial, LSHF for buildings, PVC for general trays. Copper tape doubles as a screen; steel wire gives tensile strength. Instrument pairs carrying 4–20 mA need a screen earthed at the control room end only.
  • What it solves: Mechanical protection and noise immunity for transmitter signals on plant routes.
  • Price: About SAR 10–30 per metre depending on pairs (estimate).
  • Why this supplier: Energya makes 0.6/1 kV multicore cable with the same insulation, armour and sheath options at its Rabigh plant.

Control Cables 690 V 4 To 20 mA · United Force Trading Company

  • Product specification: 690 V rated, 4–20 mA signal range, IEC/ISO standards, 2-year warranty.
  • How the specification is used: 4–20 mA loops tolerate long cable runs because current, not voltage, carries the value; loop resistance only matters against the transmitter supply (a 24 V loop with a 250 Ω input can usually drive several hundred ohms of cable). 690 V rating allows the cable to share trays with LV motor cables.
  • What it solves: Signal wiring from transmitters to PLC and DCS inputs.
  • Price: About SAR 3–8 per metre (estimate).
  • Why this supplier: United Force in Al Bathaa, Riyadh (5.0 from 10 Google reviews) gives a 2-year warranty.

Where can I buy unarmoured building and construction control cables?

Unarmoured Building And Construction Control Cable 1.5 To 2.5 mm² · Modern Industrial Company

  • Product specification: Unarmoured, 1.5 to 2.5 mm².
  • How the specification is used: 1.5 mm² suits contactor coils, lighting control and BMS outputs; 2.5 mm² suits longer runs or higher current, such as valve actuators and damper motors. Run unarmoured cable in conduit or trunking.
  • What it solves: Low-cost control wiring inside buildings where cable is already protected.
  • Price: About SAR 4–8 per metre for 4-7 cores (estimate).
  • Why this supplier: Modern Industrial Company lists this range on FYIND.

0.6 Or 1 kV Copper Conductor Control Cable · Al Mousa Specialized Cables Trading EST.

  • Product specification: 0.6/1 kV, copper conductor, 1.5–4 mm², IEC 60502-1.
  • How the specification is used: 0.6/1 kV insulation lets the cable run in the same tray as LV power cables without segregation for voltage; 4 mm² suits long runs where voltage drop matters.
  • What it solves: General control wiring for panels, motors and building services.
  • Price: About SAR 3.5–12 per metre depending on cores and size (estimate).
  • Why this supplier: Al Mousa (4.3 from 196 reviews in Riyadh) stocks a wide range in Riyadh, Dammam and Jubail.

Who supplies copper tape-screened PVC control cables in Saudi Arabia?

0.6/1 kV PVC Insulated Copper Tape Screened PVC Sheathed Control Cable CL018001 · ask Jeddah Cables Company, which makes CTS control cable

  • Product specification: Model CL018001, 5 cores x 1.50 mm², plain annealed stranded copper, PVC insulation 0.8 mm, PVC inner sheath, copper tape screen, PVC sheath, IEC 60502, 13.3 mm, 290 kg/km.
  • How the specification is used: The copper tape screen gives full coverage and a low-resistance earth path; compare 0.8 mm PVC insulation here with 0.6 mm XLPE on the MESC cable: XLPE is thinner for the same voltage and runs hotter (90 °C against 70 °C).
  • What it solves: Noise between control and power circuits in shared trays, and a screen that can carry earth fault current.
  • Price: About SAR 8–13 per metre (estimate).
  • Why this supplier: Jeddah Cables makes the same construction (CU/PVC/CTS) and can supply it armoured.

Who supplies XLPE/PVC/SWA copper control cables in Saudi Arabia?

Cable Cu XLPE PVC SWA 3 x 10 mm² Riyad Cable · ask Rimal House, a Riyadh Cables stockist

  • Product specification: Riyadh Cables, 3 cores x 10 mm² copper, XLPE insulation, PVC sheath, steel wire armour (SWA).
  • How the specification is used: 10 mm² is a power size: about 57 A clipped in air for PVC, more for XLPE (90 °C). It is used for feeders to motor control centres, pumps and sub-panels, while the control cable runs alongside.
  • What it solves: Armoured power and control feeders in plants and outdoor routes.
  • Price: About SAR 25–38 per metre (estimate).
  • Why this supplier: Rimal House lists Riyadh Cables among its brands and stocks in Riyadh.

Where can I buy heavy-duty equipment control cables in KSA?

LINCOLN 14 Pin Heavy Duty Control Cable K1785-8 2.4 m · Saleh & Abdulaziz Abahsain Company Limited

  • Product specification: Lincoln Electric, model K1785-8, 14-pin, 2.4 m.
  • How the specification is used: The 14-pin connector carries the trigger, contactor, voltage control and auxiliary power signals between a Lincoln power source and wire feeder. 2.4 m (8 ft) suits a feeder placed beside the machine; longer K1785 lengths are available for remote feeders.
  • What it solves: Lost control between welding power sources and wire feeders on fabrication sites.
  • Price: About SAR 600–1,200 (estimate); some Google reviewers find Lincoln parts expensive.
  • Why this supplier: Abahsain runs the Lincoln Electric KSA welding division in Al Khobar (4.1 from 43 reviews), so the part is genuine.

Which suppliers offer signal and control cables for industrial equipment?

High Quality Signal And Control Cable 0.75 mm² · Amwaj Telecommunication Factory (ATC)

  • Product specification: 0.75 mm², 1,200 V AC, insulation 0.4 mm, −15 to +70 °C, colours white, brown, green, yellow and grey.
  • How the specification is used: 0.75 mm² (24.5 Ω/km) is the usual size for panel wiring of PLC inputs and relays; five colours help identify circuits. 1,200 V AC is a test figure: use it for low-voltage control.
  • What it solves: Clear, compact signal wiring inside control panels and equipment.
  • Price: About SAR 1.5–4 per metre (estimate).
  • Why this supplier: Amwaj makes it in Riyadh and can customise colours and lengths.

Control Cable 305 m Grey (B3 C1228) · Mejdaf

  • Product specification: B3, 22 AWG (0.33 mm², about 53 Ω/km), grey, 305 m box.
  • How the specification is used: 22 AWG is for low-current signals such as access control, alarm contacts and PTZ control, not for powering coils over long runs.
  • What it solves: Low-current security and equipment control wiring.
  • Price: About SAR 250–600 per box depending on cores (estimate).
  • Why this supplier: Mejdaf stocks it in four cities.

The Game Console Controller Cable in this category is a games accessory, not an industrial control cable.

Who supplies multi-core, unshielded and foil-shielded security and equipment control cables?

ProductConstructionTypical use
4 Core Unshielded Control Cable4 cores, unshieldedDoor contacts, buttons, alarm zones
4 Core Foil Shielded Control Cable4 cores, foil shield + drainCard readers (Wiegand), sensors near power cables
6 Core Foil Shielded Control Cable6 cores, foilReaders with LED and buzzer control
6 Core Foil + Braid Shielded Control Cable6 cores, foil + braidPTZ control near drives
3 Core Foil + Braid Shielded Control Cable3 cores, foil + braidAnalogue signals in high-noise areas
10 Core Unshielded Control Cable10 cores, unshieldedMulti-point alarm and equipment control
10 Core Foil Shielded Control Cable10 cores, foilMulti-signal equipment control

These are typically 22 AWG low-current cables from Asharqiyah Cables's range (ask to confirm sizes), which also lists an 11-core unshielded 22 AWG cable on FYIND.

Where can I buy 8-core foil-shielded control cables in KSA?

8 Core Foil Shielded Control Cable · ask Asharqiyah Cables

  • Product specification: 8 cores, aluminium/polyester foil shield with drain wire, usually 22 AWG.
  • How the specification is used: Eight cores carry a card reader with LED, buzzer and tamper, or four signal pairs. The foil gives 100% coverage against electric fields; the drain is earthed at the controller end.
  • What it solves: Interference on access control and equipment signals run next to power cables.
  • Price: About SAR 1.5–3 per metre (estimate).
  • Why this supplier: Asharqiyah makes foil-shielded low-current cable in the Eastern Province.

Which suppliers offer 10-core and 12-core control cables in Saudi Arabia?

12 Core Control Cable, 10 Core Unshielded Control Cable and 10 Core Foil Shielded Control Cable · Jeddah Cables Company (1.5–4 mm²); ask Asharqiyah Cables (22 AWG)

  • Product specification: 1.5 mm² 0.6/1 kV armoured 12-core (Jeddah, 2–37 cores) or 22 AWG low-current 10- and 12-core.
  • How the specification is used: Use 1.5 mm² for 24–230 V coil and motor control; use 22 AWG only for signals and low-current inputs. Derate current: 10 loaded cores carry about 55% of the 3-core rating.
  • What it solves: Many circuits in one cable to a motor control station or equipment panel.
  • Price: About SAR 12–22 per metre (12 x 1.5 mm² armoured); SAR 2–4 (22 AWG) (estimates).
  • Why this supplier: Jeddah Cables makes every core count up to 37; Asharqiyah covers low-current versions.

Before ordering: Check that cores, size, screen, armour and voltage on the quote match the cable schedule. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

Control Cable Prices in Saudi Arabia

SAR · Estimates

What is the control cable price list in Saudi Arabia?

ProductSupplierEstimated price (SAR)
Control, Multi Core, Armored Cable 1.5 mm², 970 kg/kmMESC Specialized Cables28–45 per metre
Control Cable – Armored without Screen (CU/PVC/STA/PVC), 4 x 1.5 mm²Jeddah Cables Company6–12 per metre
Control Cable – Armored with Screen (CU/PVC/CWS/STA/PVC), 12 x 1.5 mm²Jeddah Cables Company14–24 per metre
0.6/1 kV PVC Insulated Copper Tape Screened PVC Sheathed Control Cable CL018001ask Jeddah Cables8–13 per metre
Cable Cu XLPE PVC SWA 3 x 10 mm² Riyad Cableask Rimal House25–38 per metre
Flexible Control Cable 7 x 2.5 mm²Rimal House14–22 per metre
XLPE/PVC Unarmoured Control Cable 4 mm² (4 core)Bahra Electric11–17 per metre
0.6 Or 1 kV Copper Conductor Control Cable, 4 x 1.5 mm²Al Mousa Specialized Cables Trading EST.4–7 per metre
Unarmoured Building And Construction Control Cable 1.5 To 2.5 mm²Modern Industrial Company4–8 per metre
Shielded Control Cables 4000 V 8000 V, 4 x 1.5 mm²ask Rimal House or Al Mousa8–14 per metre
Instrumentation Cable 0.6/1 kV Armouredask Energya10–30 per metre
Control Cables 690 V 4 To 20 mAUnited Force Trading Company3–8 per metre
High Quality Signal And Control Cable 0.75 mm²Amwaj Telecommunication Factory (ATC)1.5–4 per metre
Control Cable 305 m Grey (B3 C1228)Mejdaf250–600 per box
4 Core Unshielded Control Cable / 4 Core Foil Shielded Control Cable (22 AWG)ask Asharqiyah0.8–2 per metre
8 Core Foil Shielded Control Cable / 10 Core Foil Shielded Control Cable (22 AWG)ask Asharqiyah1.5–3.5 per metre
2 Core Foil + Braid Shielded Control Cable / 3 Core Foil + Braid Shielded Control Cableask Asharqiyah1.5–4 per metre
LINCOLN 14 Pin Heavy Duty Control Cable K1785-8 2.4 mSaleh & Abdulaziz Abahsain Company Limited600–1,200 each

Copper is most of the cost: a 19 x 1.5 mm² cable holds about 254 kg of copper per km, against about 67 kg for 5 x 1.5 mm². Armour adds 20–40%, a screen 10–25%, and LSHF sheaths 10–20%.

Estimated prices, November 2026. Prices follow copper; ask for a dated quote per drum length.

Before ordering: Check whether the price is per metre or per drum, the drum length, and whether VAT and delivery are included. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

What types of control cables are used in KSA?

Armoured · Shielded · Flexible · Fire resistant · Multicore

Which armoured control cables are suitable for industrial installations?

ArmourStrengthUse
SWA (steel wire)High tensile and crush; good earth pathTrays, vertical runs, plant areas, BS 5467
STA (steel tape)Good crush, low tensileDirect burial, horizontal runs
AWA (aluminium wire)Non-magneticSingle-core cables only
GSWB (braid)FlexibleMachines and offshore

For industrial installations, the Control, Multi Core, Armored Cable 1.5 mm², 970 kg/km (BS 5467, SWA) and Jeddah Cables' STA/SWA range are typical. Terminate SWA with a CW-type gland that clamps the armour and earth it at both ends.

When should I use shielded control cables for electrical systems?

  • When control cables share trays with VFD motor cables or large contactors.
  • For analogue signals (4–20 mA, 0–10 V), encoders and communication lines.
  • For long runs of 230 V AC control: cable capacitance (about 0.1–0.2 µF/km between cores) can pass enough current to keep a relay energised after the contact opens; screened pairs or DC control reduce this.
  • Earth the screen at one end for analogue signals, and at both ends (360° gland) for high-frequency VFD noise.

Where are flexible control cables used in industrial machinery?

Flexible Control Cable 7 x 2.5 mm² Black · Rimal House

  • Product specification: 7 cores x 2.5 mm², Class 5 flexible copper, black sheath.
  • How the specification is used: Class 5 fine strands (7.98 Ω/km at 2.5 mm²) survive vibration and repeated movement; seven cores carry three phases plus control returns to a moving machine.
  • What it solves: Broken conductors where rigid cable meets moving machine parts, gantries and panels on hinged doors.
  • Price: About SAR 14–22 per metre (estimate).
  • Why this supplier: Rimal House sells it by the roll in Riyadh.

What is the difference between armoured and unarmoured control cables?

FeatureArmouredUnarmoured
ProtectionCrush, rodents, impactNeeds conduit or trunking
Earth pathArmour can serve as CPC (check cross-section)Separate earth core
WeightHeavy (19 x 1.5 mm² SWA: 970 kg/km)Light (5 x 1.5 mm² screened: 290 kg/km)
GlandsCW type, armour clampSimple compression
Cost20–40% moreLower

Which control cables are suitable for fire-resistant applications?

Use fire-resistant control cable where a circuit must keep working in a fire: smoke damper control, fire pump controllers, lift recall and stair pressurisation.

Look for IEC 60331 or BS 6387 CWZ for fire survival and IEC 60332-3 for flame spread. Asharqiyah Cables makes fire-resistant cables meeting UL, IEC and BS standards, and Bahra Electric makes flame-retardant SWA cable.

What is the difference between foil-shielded and copper-braid-shielded control cables?

ShieldCoverageBest againstTermination
Foil (Al/PET) + drain100%High-frequency electric noiseDrain wire; one end for analogue
Copper braidAbout 80–90%Low-frequency noise; mechanically strong; low resistance360° EMC gland
Foil + braidNear 100% plus low resistanceVFDs, encoders, harsh EMC areas360° gland both ends

2 Core Foil + Braid Shielded Control Cable · ask Asharqiyah Cables

  • Product specification: 2 cores, foil + tinned copper braid shield.
  • How the specification is used: The foil stops high-frequency coupling and the braid gives a low-resistance path and mechanical strength, so the pair stays clean beside drive cables.
  • What it solves: Noisy analogue signals, encoder or RS-485 lines next to VFDs.
  • Price: About SAR 1.5–4 per metre (estimate).
  • Why this supplier: Asharqiyah makes foil + braid low-current cable.

Which multicore control cables are available for industrial applications?

Standard core counts are 2, 3, 4, 5, 7, 10, 12, 14, 19, 24, 27, 30 and 37 (Jeddah Cables makes 2–37).

Above five cores, cores are usually black with printed white numbers plus a green/yellow earth, which makes termination at marshalling panels faster and reduces wiring errors.

Before ordering: Check that armour, screen and fire rating match the route and the circuit. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

Where are control cables used in Saudi industries and buildings?

Oil and gas · Petrochemical · Automation · BMS · Hospitals · Railway · Machinery

Which control cables are used in oil and gas facilities?

  • Application: Wellheads, gas plants, pipelines and tank farms.
  • Suitable product: Control, Multi Core, Armored Cable 1.5 mm², 970 kg/km; Instrumentation Cable 0.6/1 kV Armoured.
  • Product specification: BS 5467 or IEC 60502-1, SWA, IEC 60332-3 Cat A, PE or LSHF jacket.
  • How the specification is used: SWA withstands mechanical damage on long plant routes; flame-spread tests limit fire travelling along trays; screened instrument pairs keep 4–20 mA signals clean.
  • What it solves: Lost control and signal circuits from crushing, fire spread and noise.
  • Price: About SAR 10–45 per metre (estimate).
  • Who offers it: MESC Specialized Cables, Energya Cables, Asharqiyah Cables.
  • Why this supplier: Saudi manufacturers that quote by drum and are close to Eastern and Western Region plants.

What control cables are suitable for petrochemical plants?

  • Application: Jubail and Yanbu petrochemical plants, refineries and process units.
  • Suitable product: Control Cable – Armored with Screen (CU/PVC/CWS/STA/PVC); 0.6/1 kV PVC Insulated Copper Tape Screened PVC Sheathed Control Cable CL018001.
  • Product specification: Screened (CWS/CTS) and armoured, oil-resistant sheath.
  • How the specification is used: Screens reduce noise from large motors; armour gives an earth path and protection; oil-resistant sheaths survive hydrocarbon exposure.
  • What it solves: Control faults from noise, oil attack and mechanical damage.
  • Price: About SAR 8–24 per metre (estimate).
  • Who offers it: Jeddah Cables Company, Al Mousa Specialized Cables Trading EST. (Jubail stock).
  • Why this supplier: Jeddah makes screened armoured cable; Al Mousa holds stock in Jubail.

Which control cables are used in industrial automation systems?

  • Application: PLC, DCS and drive systems in factories.
  • Suitable product: Belden-type shielded pairs; Control Cables 690 V 4 To 20 mA; High Quality Signal And Control Cable 0.75 mm².
  • Product specification: Shielded twisted pairs 18–24 AWG; 0.75 mm² panel wire; 690 V instrument cable.
  • How the specification is used: Twisted, shielded pairs keep analogue and fieldbus signals clean; 0.75 mm² wire keeps panels compact.
  • What it solves: Signal errors and nuisance trips in automated lines.
  • Price: About SAR 1.5–12 per metre (estimate).
  • Who offers it: Mejdaf, United Force Trading Company, Amwaj Telecommunication Factory (ATC).
  • Why this supplier: Branded cable from Mejdaf; local 0.75 mm² cable from Amwaj; warranted instrument cable from United Force.

Which control cables are used inside control panels and for instrumentation?

What type of control cable is required for building management systems?

  • Application: HVAC controllers, valves, dampers, sensors and lighting control.
  • Suitable product: Unarmoured Building And Construction Control Cable 1.5 To 2.5 mm²; 4 Core Foil Shielded Control Cable; Belden BMS cable.
  • Product specification: 1.5 mm² for actuators; shielded pairs for sensors and BACnet MS/TP or Modbus.
  • How the specification is used: Shielded pairs carry RS-485 data up to about 1,200 m; LSHF sheaths are preferred inside occupied buildings.
  • What it solves: Unreliable sensor readings and communication faults.
  • Price: About SAR 1–8 per metre (estimate).
  • Who offers it: Modern Industrial Company, Mejdaf, Rimal House.
  • Why this supplier: Building cable from stock in Riyadh and Jeddah.

Which control cables are suitable for hospitals and commercial buildings?

  • Application: Hospitals, malls, offices and hotels.
  • Suitable product: Energya LSHF multicore cable; fire-resistant control cable from Asharqiyah.
  • Product specification: LSHF sheath (IEC 61034, IEC 60754); fire-resistant for life-safety controls.
  • How the specification is used: Low-smoke, halogen-free sheaths protect people and electronics; fire-resistant cable keeps smoke and fire controls working.
  • What it solves: Toxic smoke and failed life-safety controls in a fire.
  • Price: About SAR 6–20 per metre (estimate).
  • Who offers it: Energya Cables, Asharqiyah Cables.
  • Why this supplier: Certified control, armoured, shielded and fire-resistant control cables for commercial buildings, hospitals and industrial facilities in KSA come from these manufacturers.

What control cables are used in railway signalling and infrastructure projects?

  • Application: Riyadh Metro, Saudi railway lines, depots and stations.
  • Suitable product: Control Cable – Armored with Screen (CU/PVC/CWS/STA/PVC); LSHF screened control cable.
  • Product specification: Screened, armoured, LSHF; project-specific railway standards (often EN 50288 and EN 50525 families).
  • How the specification is used: Screens protect signalling from traction current interference; LSHF is required in tunnels and stations.
  • What it solves: Signalling errors and smoke hazards in enclosed stations.
  • Price: Quoted per project.
  • Who offers it: Jeddah Cables Company, Energya Cables.
  • Why this supplier: Both make screened armoured and LSHF cable for control cables for oil, gas, petrochemical and railway sectors.

Which control cables are used for machinery and equipment connections?

  • Application: Machine tools, cranes, welding sets and packaging lines; control cables for industrial and engineering applications.
  • Suitable product: Flexible Control Cable 7 x 2.5 mm² (Rimal House); LINCOLN 14 Pin Heavy Duty Control Cable K1785-8 2.4 m; Shielded Control Cables 4000 V 8000 V.
  • Product specification: Class 5 flexible copper; 300/500 V; 14-pin welding control.
  • How the specification is used: Fine strands survive movement; equipment-specific leads keep OEM functions working.
  • What it solves: Conductor breakage and lost equipment control.
  • Price: About SAR 8–22 per metre; Lincoln lead about SAR 600–1,200 (estimates).
  • Who offers it: Rimal House, Saleh & Abdulaziz Abahsain Company Limited.
  • Why this supplier: Flexible cable from Riyadh stock; genuine Lincoln parts from the Lincoln KSA division.

Before ordering: Check that the cable suits the industry's standard, sheath and approval list. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

Control Cable Specifications and Sizes

Cores · Size · Voltage · Insulation · Standards · Rating

What is the difference between 2-core, 3-core, 4-core and 6-core control cables?

CoresTypical use
2Single signal or coil circuit, 4–20 mA pair
3Circuit with earth; three-wire sensors
4Start/stop with indication; three-phase without neutral
6Several signals, such as motor start, stop, run, trip and earth

What is the standard size of a control cable for industrial applications?

1.5 mm² is the standard size for 24–230 V industrial control circuits; 2.5 mm² is used for long runs or higher-current coils; 0.75–1.0 mm² for panel wiring and signals; 22–18 AWG for low-current security and data signals.

What conductor sizes are available for control cables in KSA?

Size (mm²)Max resistance Class 2 (Ω/km, 20 °C)Max resistance Class 5 flexible (Ω/km)Voltage drop, 24 V DC at 0.5 A over 300 m (Class 2)
0.53639About 10.8 V (45%)
0.7524.526About 7.3 V (31%)
1.018.119.5About 5.4 V (23%)
1.512.113.3About 3.6 V (15%)
2.57.417.98About 2.2 V (9%)
44.614.95About 1.4 V (6%)
63.083.3About 0.9 V (4%)

Resistances are IEC 60228 maximums. Keep 24 V DC control drop under about 10%: a 300 m run at 0.5 A needs at least 2.5 mm².

What voltage ratings are available for industrial control cables?

RatingStandard / exampleUse
300/500 VBS EN 50525-2-11 (Shielded Control Cables 4000 V 8000 V)Flexible and screened machine control
450/750 VBS EN 50525Building wiring
600/1000 V (0.6/1 kV)IEC 60502-1, BS 5467 (Control, Multi Core, Armored Cable 1.5 mm², 970 kg/km)Industrial armoured control
690 VControl Cables 690 V 4 To 20 mAInstrument cable sharing LV trays

Low-voltage, medium-voltage and instrumentation/control cables complying with IEC, BS, NEC and CSA standards are all available in KSA; control cables are low voltage, while MV (above 1 kV) applies only to power feeders.

What is the difference between PVC and XLPE-insulated control cables?

PropertyPVCXLPE
Max conductor temperature70 °C90 °C
Short-circuit temperature160 °C250 °C
Insulation thickness, 1.5 mm² 0.6/1 kV0.8 mm (CL018001)0.6 mm (MESC 19-core)
Current ratingBaseAbout 20–30% higher
FireSelf-extinguishing, emits HClBurns unless FR or LSHF compound

Which control cable standards are required for Saudi industrial projects?

StandardCovers
IEC 60502-10.6/1 kV extruded cables
IEC 60228Conductor classes and resistance
BS 5467 / BS 6346 / BS 6724Armoured XLPE, PVC and LSZH cables
BS EN 50525300/500 V and 450/750 V flexible and building cables
IEC 60332-1-2 / -3Flame spread
IEC 60331 / BS 6387Fire resistance
IEC 61034 / IEC 60754Smoke and halogen gas
SASO and client specsSaudi conformity; Aramco, SABIC and SEC approved lists

Certified control cables in Saudi Arabia carry SASO conformity, and project cables need approval on the client's vendor list (for example Aramco, SABIC or SEC) before purchase.

What is the control cable size chart by number of cores?

Cores x 1.5 mm²Unarmoured CU/PVC/PVC (approx. OD)Armoured SWA (approx. OD)Copper (kg/km)
210 mm14 mm27
412 mm16 mm53
513.3 mm (CL018001, screened)17 mm67
714 mm18 mm93
1218 mm22 mm160
1920 mm22 mm (MESC, XLPE)254
3726 mm30 mm494

Diameters are approximate and vary by maker; use the datasheet value to choose glands and tray fill.

What is the current carrying capacity of different control cable sizes?

SizePVC multicore, clipped direct, 30 °C (A)At 50 °C (× 0.71)
1.5 mm²17.512.4
2.5 mm²2417.0
4 mm²3222.7
6 mm²4129.1
10 mm²5740.5
Loaded coresDerating factor (IEC 60364-5-52)
50.75
70.65
100.55
140.50
190.45
240.40

Ratings are for 3–4 loaded cores (BS 7671 reference method C).

For many loaded cores, multiply by the factor: a 19-core 1.5 mm² PVC cable with all cores loaded carries about 17.5 × 0.45 ≈ 7.9 A per core at 30 °C.

Most control cores carry well under 1 A, so voltage drop usually decides the size.

How do I select the correct control cable cross-sectional area?

  1. Find the circuit current, including coil inrush (often 5–10 times holding current for AC contactors).
  2. Check voltage drop over the full loop length (out and back) against the device's minimum operating voltage.
  3. Apply temperature and grouping derating, including many-core factors.
  4. Check long 230 V AC runs for capacitive hold-on of relays.
  5. Choose a standard size with spare cores (about 20%).

What specifications should I check before ordering control cables?

CheckExample
Cores and size19 x 1.5 mm²
Conductor classClass 2 stranded or Class 5 flexible
Insulation and voltageXLPE, 0.6/1 kV
ScreenFoil, braid, CWS or CTS
ArmourSWA, STA or none
SheathPVC, PE or LSHF
StandardIEC 60502-1, BS 5467
Fire testsIEC 60332-1/-3, IEC 60331
Diameter and weight22 mm, 970 kg/km
Core identificationNumbered or coloured
Drum length500 or 1,000 m

Before ordering: Check every line of the specification table against the datasheet before ordering. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

How do Saudi heat, sun and dust affect control cable?

Heat · UV · Dust · Coastal · Approvals

Control cable in KSA is limited less by current than by its environment: air at 50 °C, roof trays above 70 °C in direct sun, dry desert soil that holds heat, fine dust and salt air on the coasts.

The figures below show how each one changes the cable you should order.

ConditionEffect on cableWhat to specify
Air temperature 45–50 °CCurrent rating falls to about 71% (PVC) or 82% (XLPE) of the 30 °C value; PVC softens soonerXLPE (90 °C) insulation; apply BS 7671 / IEC 60364-5-52 temperature factors
Trays in direct sunSurface temperature can pass 70 °C; extra 10–20 °C on the cableTray covers or shading; route on the shaded side of pipe racks
Dry desert soilThermal resistivity of 2.5–3 K·m/W against 1.5–2.5 assumed in tables, so buried cables run hotterBedding in thermally stable sand; derate buried circuits
UV exposureUnstabilised sheaths chalk and crack within a few yearsBlack, UV-stabilised PVC or PE sheath; avoid light-coloured sheaths outdoors
Fine dust and sandDust enters glands, junction boxes and terminals; tracking and loose connectionsIP66 glands and enclosures (IEC 60529); E1W-type glands outdoors
Coastal and petrochemical airCorrodes brass glands, steel armour ends and copper lugsNickel-plated brass or stainless glands, tinned copper lugs, PVC-shrouded glands, 316 stainless fixings
Termites in buried routesSheath damage on direct-buried cableAnti-termite sheath on request (offered by Bahra) or ducted routes

KSA tip (Heat): A 1.5 mm² PVC multicore rated 17.5 A at 30 °C carries about 12.4 A at 50 °C; with 10 loaded cores (factor 0.55) that falls to about 6.8 A per core.

Control loads are small, but check heater, solenoid and lighting control circuits.

KSA tip (Sun): Pull cable off drums that have stood in the sun only after they cool, and keep drums shaded on site; hot PVC stretches and the insulation thins at bends.

KSA tip (Dust): Fit glands with seals and shrouds and keep junction box lids closed during construction; dust in terminals is a common cause of intermittent control faults at commissioning.

KSA tip (Coastal): In Jeddah, Yanbu, Dammam, Al Khobar and Jubail, specify tinned copper conductors or lugs and nickel-plated glands for outdoor junction boxes.

KSA tip (Approvals): SASO conformity applies to cable sold in KSA; utility (SEC), Aramco and SABIC projects need approved makers, and Civil Defense governs fire alarm and fire-resistant circuits. Confirm before you order.

KSA tip (Summer work hours): Outdoor work in direct sun is banned around midday in summer (typically 12 pm to 3 pm, 15 June to 15 September); plan cable pulling for early morning and check each year's dates.

Before ordering: Check that insulation, sheath, glands and derating suit the site temperature, sun, dust and coastal exposure. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

How are control cables installed?

Route · Pulling · Glands · Screens · Labelling

Installation is done by a licensed electrical contractor. The steps below set out the checks and values that keep control cable within its ratings.

  1. Check the route: confirm tray fill (keep below about 40–50% for multicore control cable), support spacing and bending radius from the datasheet; typical minimum radius is about 6 × OD for unarmoured and 8 × OD for armoured cable, so the 22 mm MESC 19-core needs about 180 mm.
  2. Segregate: keep control and instrument cables apart from LV power cables, at least about 300 mm in shared routes or behind a metal barrier, and cross power cables at right angles.
  3. Inspect drums: check the drum label against the cable schedule (cores, size, armour, standard), check the end caps are intact, and never lay a drum flat or drop it.
  4. Pull correctly: use rollers at every bend and a cable grip or pulling eye; limit tension to about 50 N per mm² of total copper area when pulling on the conductors (about 1,400 N for 19 × 1.5 mm²).
  5. Fix and support: use cleats or ties at regular spacing (typically 300–450 mm horizontally for 20–40 mm cables), and metal fixings where cables must stay in place in a fire.
  6. Gland and earth: use CW-type glands (BS 6121) for SWA indoors and E1W types outdoors; clamp the armour and bond it to earth at both ends.
  7. Terminate screens: earth analogue instrument screens at one end only (the control room end); bond VFD and high-frequency screens 360° at both ends.
  8. Identify cores: fit ferrules on stranded cores and numbered markers matching the drawings; label both cable ends with the cable number.
  9. Test before energising: carry out insulation resistance and continuity tests (next section) and record the results.

Safety: isolate and lock off circuits before work. Electrical installation must be designed and carried out by qualified, licensed people; this is general guidance only.

Before ordering: Check that the method statement covers bending radius, pulling tension, segregation, glanding and screen earthing. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

How do you test and maintain control cable?

Tests · Symptoms · Causes · Fixes

TestMethodTypical pass value
Insulation resistance500 V DC for circuits up to 500 V; 1,000 V DC for 0.6/1 kV cable, core to core and core to earth/armour (IEC 60364-6)At least 1 MΩ; new cable usually reads hundreds of MΩ or more
Conductor continuityLow-resistance ohmmeter, cores looped at the far endClose to the datasheet value, e.g. 12.1 Ω/km for 1.5 mm² at 20 °C
Core identificationRing out each numbered core end to endEvery core matches the drawing
Screen and armour continuityOhmmeter from gland to glandContinuous and bonded as designed
Thermal scanInfrared camera on terminals under loadNo hot spots above surrounding terminals
SymptomLikely causeFix
Hot spots at terminationsLoose terminal or missing ferruleThermal scan, re-terminate with ferrules, re-torque
Low insulation resistanceMoisture in glands or damaged sheathFind and repair; dry out or replace the length
Cracked outer sheathUV or heat exposureShade or cover the route; replace the damaged length
Relay will not drop out on long 230 V runsCable capacitance holding the coilUse DC control, a lower-capacitance cable or a bleed resistor
Noisy analogue signalScreen earthed at both ends or brokenEarth the screen at one end; restore continuity
Corroded glands or lugsCoastal or chemical airReplace with nickel-plated or stainless glands and tinned lugs

Inspect outdoor routes, glands and junction boxes every year, and after sandstorms or nearby works; repeat insulation resistance tests on critical circuits and compare with commissioning records. Testing must be done by a qualified electrician with calibrated instruments.

Before ordering: Check that test results from commissioning are kept as a baseline for later maintenance. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

What should you check before ordering control cable?

Checklist · Mistakes

Before you contact MESC, Jeddah Cables, Rimal House or another supplier, have these answers ready; a complete enquiry gets a firm price and delivery date in one reply.

  • Type, voltage rating and standard (for example 0.6/1 kV, IEC 60502-1 or BS 5467)
  • Number of cores, conductor size and class (Class 2 stranded or Class 5 flexible)
  • Insulation, sheath and armour (PVC or XLPE; PVC, PE or LSHF; SWA, STA or none)
  • Screen type (foil, braid, CWS or CTS) and whether pairs need individual screens
  • Fire performance (IEC 60332-1/-3, IEC 60331) and core identification (numbered or coloured)
  • Quantity, drum or roll length, and whether cut lengths are needed
  • Brand, test certificates, SASO conformity and the client's approved vendor list
  • Delivery city, site access and required date
Common mistakeResultHow to avoid it
Ordering by core count onlyWrong size, armour or screen deliveredSend the full cable description from the schedule
Ignoring many-core deratingOverheated cores on loaded circuitsApply the many-core factor (0.45 for 19 cores)
Unscreened cable beside VFDsNoisy signals and false tripsSpecify foil + braid or CWS/CTS screen
Wrong gland sizeCable does not fit; delays on siteOrder glands from the datasheet OD and armour size
No spare coresExtra cable runs for later changesAllow about 20% spare cores
Comparing prices per drum of different lengthsMisleading cost comparisonCompare per metre, with VAT and delivery

Before ordering: Check that every item in the checklist is on your enquiry. Need to find the right supplier? Explore the Electrical cables and accessories suppliers listed on FYIND.

Frequently Asked Questions About Control Cable Suppliers in KSA

Who are the top-quality control cable suppliers in Riyadh?

In Riyadh, MESC Specialized Cables (+966 11 265 0555) makes armoured control and instrumentation cable to BS 5467 and holds ISO 9001, 14001 and 45001. Rimal House (+966 56 081 6304) and Al Mousa Specialized Cables (+966 54 259 9697) in the Al Amal market stock flexible, armoured and Riyadh Cables control cable; Al Mousa is rated 4.3 from 196 Google reviews. United Force Trading in Al Bathaa (+966 11 209 5301) supplies 690 V 4–20 mA instrument cable with a 2-year warranty, and Amwaj makes 0.75 mm² signal and control cable. Mejdaf also has a Riyadh branch for imported brands such as B3 and Belden.

Where can I find certified control cables in Saudi Arabia?

Certified control cables come from manufacturers that publish their standards and quality systems. Jeddah Cables tests to IEC, BS, ASTM, ICEA, AEIC, NEC and UL in its own laboratory and holds ISO 9001, 14001 and 45001. MESC holds the same three ISO certificates and shows BASEC, LPCB and UL marks. Bahra Electric reports 45+ international certifications and an A2LA-accredited laboratory. Asharqiyah makes cables to UL, IEC and BS standards. Always ask for the type test report for your exact cable, SASO conformity, and confirmation that the maker is on your client's approved vendor list, such as Aramco, SABIC or SEC.

Which suppliers offer control cables for oil, gas and petrochemical sectors?

MESC in Riyadh and Asharqiyah Cables in Al Khobar are well placed for oil, gas and petrochemical projects: MESC makes BS 5467 SWA control cable and Belden-equivalent instrumentation cable, and Asharqiyah is close to Dammam, Jubail and Abqaiq. Jeddah Cables and Energya make screened and armoured 0.6/1 kV control cable for Western Region plants such as Yanbu and Rabigh. Al Mousa holds stock in Dammam and Jubail for urgent site needs. Specify SWA armour, IEC 60332-3 flame spread, screened instrument pairs, oil-resistant or PE sheaths, and check vendor approval with the plant owner before ordering.

Are fire-resistant control cables available for hospitals and commercial buildings?

Yes. Fire-resistant control cables keep smoke dampers, fire pump controllers, lift recall and pressurisation fans working during a fire. They use mica tape or ceramifying insulation and are tested to IEC 60331 or BS 6387 CWZ, usually with an LSHF sheath tested to IEC 61034 and IEC 60754 to limit smoke and acid gas. Asharqiyah Cables makes fire-resistant cables meeting UL, IEC and BS standards, Bahra Electric makes flame-retardant SWA cable and fire-resistant power cable, and Energya offers LSHF sheaths for public buildings. For hospitals, check the fire strategy for the required survival time, often 120 minutes.

What is the difference between control cables and instrumentation cables?

Control cables switch equipment on and off: they carry 24 V to 230 V signals to contactor coils, solenoids and indicators, usually in 1.5 or 2.5 mm² multicore cable rated 0.6/1 kV, often unscreened. Instrumentation cables carry low-level measurement signals such as 4–20 mA, 0–10 V and thermocouple outputs, so they use twisted pairs or triads of 0.5 to 1.5 mm² with individual and overall screens, rated 300/500 V, to BS EN 50288-7 or similar. Instrumentation cable needs careful screen earthing, usually at one end. MESC and Energya make armoured instrumentation cable; United Force supplies 690 V 4–20 mA cable.

Can I order customized multicore control cables in KSA?

Yes. Saudi manufacturers make multicore control cable to order. Jeddah Cables makes 2 to 37 cores in 1.5 to 4 mm², with or without copper wire or copper tape screen and with STA or SWA armour, on returnable drums. MESC offers consultancy, engineering and turnkey supply with emergency stocks, and Amwaj customises colours, lengths and designs on lean production lines. Give the maker the number of cores, size, conductor class, insulation, screen, armour, sheath, standard, drum length and quantity. Custom orders usually need a minimum drum quantity and a production slot, so agree lead time early.

Which control cable standards are commonly required for industrial projects?

Most Saudi industrial projects specify IEC 60502-1 for 0.6/1 kV control cable, IEC 60228 for conductors and IEC 60332-1 or 60332-3 for flame spread. British-designed projects often use BS 5467 (XLPE, SWA), BS 6346 (PVC, SWA) or BS 6724 (LSZH, SWA), and BS EN 50525 for 300/500 V flexible cable. Fire-resistant circuits add IEC 60331 or BS 6387 CWZ, and buildings add IEC 61034 and IEC 60754 smoke and halogen tests. US-designed equipment may call for UL, NEC or CSA listings. Check SASO conformity and the client's material specifications and approved vendor list.

Which other cable categories should you look at?

For more options, visit the electrical cables and accessories category on FYIND and explore products from listed suppliers.

Choose cables based on your project requirements and find suitable suppliers for your needs.

Popular Categories
