Fire sprinkler heads are essential components of automatic fire protection systems used in commercial buildings, warehouses, hospitals, hotels, industrial facilities, and residential projects across Saudi Arabia. Designed to activate automatically during a fire, they help control flames quickly while meeting NFPA, UL, FM, and Saudi Civil Defense requirements.
Suppliers across Riyadh, Jeddah, Dammam, Al Khobar, Jubail, and Yanbu offer pendent, upright, sidewall, concealed, recessed, conventional, ESFR, CMSA, quick response, and standard response fire sprinkler heads from leading brands including Tyco | Viking | Reliable | Globe | Senju | HD Fire | Rapidrop | Victaulic | Johnson Controls | NAFFCO.
Address: Noora Waqaiyan Sultan Al Dossary, Riyadh, Saudi Arabia
Phone: +966 11 214 6838
Address: Al Malaz, Riyadh, Saudi Arabia
Phone: +966 11 446 2175
Address: 3204 Omar Al Moukhtar, Al Amal, Riyadh 12644, Saudi Arabia
Phone: +966138346607
Address: Al Othman Commercial Center 1st Floor , Room No : 15 A , Baladiya Street, Jeddah 21471, Jeddah, KSA
Phone: +966 12 661 4307
Address: Muhammad Bin Suleman District, Riyadh 12772, Saudi Arabia
Phone: +966 56 315 8697
Address: 2310 King Fahd Road, Al Rakah Al Janubiyah, Al Khobar 34227, Saudi Arabia
Phone: +920006023
Address: Palestine Street, Jeddah 23341, Saudi Arabia
Phone: +966 54 777 7503
Address: Prince Mamduh Bin Abdulaziz Street, As Sulimaniyah, Riyadh 12241, Saudi Arabia
Phone: +966 11 215 4059
Address: King Abdulaziz Road, Al Khobar, Saudi Arabia (Head Office)
Phone: +966502145319
Pendant fire sprinkler heads are the most widely installed automatic fire sprinkler heads in Saudi Arabia. They are suspended from ceiling-mounted pipework and use a convex deflector to distribute water in a 360° circular spray pattern, providing uniform coverage across the protected area.
Upright fire sprinkler heads are mounted above exposed pipework and discharge water upward toward a concave deflector, allowing the spray to spread evenly over the protected area. They are specifically designed for buildings with exposed structural ceilings and high-bay storage environments.
Sidewall fire sprinkler heads are installed horizontally on walls or structural beams instead of ceilings. Their half-deflector produces a 180° semi-circular water distribution pattern, making them an excellent solution where ceiling pipe installation is impractical or architectural finishes must be preserved.
Concealed and recessed fire sprinkler heads combine high-performance fire protection with a clean architectural appearance. These sprinkler heads remain hidden behind a decorative cover plate or recessed escutcheon, which automatically releases when exposed to heat, allowing the sprinkler to activate without affecting room aesthetics.
To prevent accidental activation, sprinkler heads are temperature-rated based on their surrounding environment.
The color of the glass bulb or the frame arms indicates its rating:
| Product | Typical Specifications | Key Features | Popular Brands | Estimated Price (SAR) |
|---|---|---|---|---|
| Fire Sprinkler Head | K-Factor: 5.6, 8.0, 11.2 • Temperature Ratings: 68°C, 79°C, 93°C, 141°C • Connection: 1/2" & 3/4" NPT • Material: Brass, Chrome-Plated Brass • Certifications: UL Listed, FM Approved, NFPA 13, SASO Compatible | Designed for light, ordinary and extra hazard occupancies. Compatible with wet pipe, dry pipe and pre-action systems. Selected based on hydraulic calculations, ceiling height and hazard classification. Suitable for commercial buildings, warehouses, hospitals and industrial facilities. | Tyco, Viking, Reliable, Globe, Senju | 18–75 |

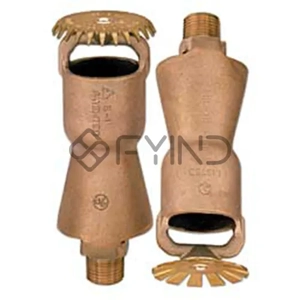

| Foam Sprinkler Head | Foam-Water Discharge • AFFF Compatible • Brass/Stainless Steel • 1/2" & 3/4" NPT • UL/FM Listed | Engineered for Class B flammable liquid fires. Used in oil & gas facilities, aircraft hangars, fuel depots and chemical plants. Requires compatible foam proportioning systems for effective suppression. | Viking, Tyco, HD Fire | 180–750 |
| Recessed Sprinklers | K5.6 & K8.0 • Concealed Escutcheon • Chrome Finish • UL/FM Listed • Ceiling Mounted | Flush ceiling installation for hotels, hospitals, offices and luxury commercial interiors. Decorative cover plates improve aesthetics while allowing simple maintenance and replacement. | Tyco, Viking, Reliable | 35–120 |
| HSW Extended Coverage Quick Response Sprinklers | Horizontal Sidewall • Extended Coverage (up to 20 m²) • K5.6/K8.0 • Quick Response Bulb • UL/FM Approved | Covers larger floor areas, reducing sprinkler quantity and installation costs. Frequently specified for schools, healthcare facilities, hotels and office buildings requiring faster occupant protection. | Tyco, Viking, Globe | 45–160 |
| Vertical Sidewall Sprinklers | Vertical Sidewall • K5.6/K8.0 • Brass or Chrome • 68°C–141°C • UL/FM Certified | Designed for corridors, stairwells, parking garages and narrow spaces where ceiling installation is difficult. Provides directional water distribution while maintaining required coverage density. | Viking, Reliable, Globe | 35–110 |
| Conventional Sprinklers | Pendent/Upright Pattern • K5.6/K8.0 • Brass/Chrome • UL/FM Listed • Standard Spray | Produces both upward and downward water distribution. Suitable for industrial facilities, retrofit projects and older fire sprinkler systems where existing piping layouts are retained. | Tyco, Viking, HD Fire | 20–80 |
| Pendent, Upright & Recessed K-8 Sprinklers | K-Factor 8.0 • 68°C–141°C • Brass/Chrome • UL/FM Listed • Standard Coverage | Higher water discharge than K5.6 models for medium and high hazard occupancies. Commonly used in factories, warehouses, logistics centres and commercial buildings. | Tyco, Viking, Reliable | 30–95 |
| Horizontal Sidewall K-8 Sprinklers | Horizontal Sidewall • K8.0 • Quick or Standard Response • UL Listed • 1/2" NPT | Ideal for hotels, apartments, dormitories and office spaces with limited ceiling piping. Higher flow capacity can reduce the total number of sprinklers required. | Viking, Globe, Tyco | 35–100 |
| UL Listed Pendent Sprinklers | UL Listed • K5.6/K8.0 • Standard & Quick Response • Brass/Chrome • 68°C–141°C | Independently tested to UL standards and accepted for government, healthcare and commercial projects. Compatible with internationally approved fire protection systems. | Tyco, Viking, Reliable | 25–90 |
| UL Listed Upright Sprinklers | Upright Type • UL/FM Listed • K5.6/K8.0 • Brass/Chrome • Exposed Installation | Preferred for warehouses and industrial buildings with exposed ceilings. Provides unobstructed spray distribution and allows easy inspection, testing and maintenance. | Tyco, Globe, Senju | 25–90 |
| UL Listed Sidewall Sprinklers | Horizontal Sidewall • UL Listed • Brass/Chrome • K5.6/K8.0 • Standard Coverage | Installed where ceiling-mounted sprinklers are impractical. Suitable for corridors, hotel rooms, hospitals and residential developments while maintaining certified performance. | Viking, Reliable, Tyco | 30–95 |
| Quick Response Fire Sprinkler Heads | 3 mm Glass Bulb • K5.6/K8.0 • UL/FM Listed • 68°C–93°C | Activates faster than standard response models to improve life safety. Recommended for schools, hotels, hospitals and residential buildings under NFPA 13 and NFPA 13R requirements. | Tyco, Viking, Reliable | 30–110 |
| Standard Response Fire Sprinkler Heads | 5 mm Glass Bulb • K5.6/K8.0 • UL/FM Listed • Brass/Chrome | Designed primarily for property protection in factories, warehouses and commercial buildings. Cost-effective solution for standard fire protection system designs. | Tyco, Globe, Senju | 20–80 |
| ESFR Fire Sprinkler Heads | K14, K16.8, K22.4, K25.2 • Early Suppression Fast Response • FM Approved • High-Ceiling Protection | Protects high-piled storage up to approximately 15–18 m (depending on listing). Can eliminate in-rack sprinklers in many warehouse applications, reducing installation complexity and maintenance costs. | Tyco, Viking, Reliable | 180–650 |
| CMSA Fire Sprinkler Heads | Control Mode Specific Application • K11.2–K25.2 • High Flow • UL/FM Certified | Designed for palletized storage, manufacturing plants and distribution centres. Selected where CMSA protection provides the optimum hydraulic solution for stored commodities. | Tyco, Viking | 150–550 |
| K-Factor Fire Sprinkler Heads | Available in K5.6, K8.0, K11.2, K14, K16.8, K22.4 & K25.2 • UL/FM Listed • Multiple Temperature Ratings | Enables engineers to match sprinkler discharge with hydraulic calculations. Larger K-Factors provide greater water flow at lower operating pressure for industrial and warehouse systems. | Tyco, Viking, Reliable | 20–250 |
| Brass Fire Sprinkler Heads | Solid Brass Body • 68°C–141°C • UL/FM Listed • Corrosion Resistant | Durable and economical option for warehouses, factories and mechanical rooms. Natural brass finish offers long service life with minimal maintenance requirements. | Tyco, Globe, Senju | 18–70 |
| Chrome Fire Sprinkler Heads | Chrome-Plated Brass • Decorative Finish • UL/FM Certified • Corrosion Resistant | Combines premium appearance with long-term corrosion protection. Frequently specified for hotels, airports, shopping malls, hospitals and modern commercial interiors where exposed sprinklers complement architectural finishes. | Viking, Reliable, Tyco | 22–85 |
| Feature | Brass Fire Sprinkler Heads | Chrome-Plated Fire Sprinkler Heads |
|---|---|---|
| Corrosion Resistance | Good durability for standard indoor industrial environments. | Superior corrosion and stain resistance with a protective chrome finish. |
| Appearance | Natural brass finish with an industrial look. | Polished architectural finish suitable for visible installations. |
| Maintenance | Requires periodic cleaning in exposed environments. | Resists staining and requires less cleaning in public spaces. |
| Best Applications | Warehouses, factories, mechanical rooms and industrial facilities. | Hotels, hospitals, airports, office buildings, shopping malls and commercial interiors. |
| Available K-Factors | K5.6, K8.0, K11.2 | K5.6, K8.0, K11.2 |
| Operating Pressure | Up to 175 psi (12 bar) | Up to 175 psi (12 bar) |
| Common Certifications | UL Listed, FM Approved, NFPA 13 Compliant | UL Listed, FM Approved, NFPA 13 Compliant |
Leading Fire Sprinkler Head Suppliers in KSA supply UL Listed and FM Approved Fire Sprinkler Heads for commercial, industrial, healthcare, hospitality, and infrastructure projects. Many suppliers offer products from international brands such as Tyco Fire Sprinkler Heads, Viking, Reliable, and other globally recognised manufacturers.
You can buy Fire Sprinkler Heads in Saudi Arabia from authorised fire protection suppliers located in Riyadh, Jeddah, Dammam, Al Khobar, and other major cities. Many suppliers provide project quotations, technical support, installation services, and replacement components for new and existing fire protection systems.
The Fire Sprinkler Head price depends on the sprinkler type, certification, K-Factor, finish, and manufacturer. Typical market prices include:
Prices vary based on project quantity, certification requirements, and brand.
Many buyers ask, "How do fire sprinklers work?" Most Automatic Fire Sprinkler Heads operate using a heat-sensitive glass bulb or fusible link. When the surrounding temperature reaches the sprinkler's activation rating, the bulb breaks, allowing water to discharge directly over the fire. Each sprinkler activates independently, meaning only the sprinklers exposed to sufficient heat will operate.
Standard Fire Sprinkler Head temperature ratings include:
The correct temperature rating depends on ambient conditions and the applicable fire protection design standard.
The main difference between pendent and upright sprinkler heads is the installation position and spray pattern.
Pendant models are commonly used in offices and commercial buildings, while upright sprinklers are preferred for warehouses and industrial facilities with exposed ceilings.
Warehouse fire protection systems commonly use ESFR, CMSA, or Upright Fire Fighting Sprinklers, depending on storage height, commodity type, and hydraulic calculations. High-bay warehouses often require FM Approved sprinkler heads with larger K-Factors such as K14, K16.8, or K22.4.
For commercial and industrial projects, buyers generally specify:
These certifications help ensure compatibility with project specifications and insurance requirements.
Yes. Tyco Fire Sprinkler Heads are available through several Fire Sprinkler Suppliers in Saudi Arabia, alongside other international brands such as Viking, Reliable, Globe, and Senju. Product availability depends on the supplier, project requirements, and stock levels.
When selecting Fire Sprinkler Head Suppliers in KSA, compare:
