Match Your Job to the Right Surge Arrestor Before You Read Anything Else

Surge Arrestor Suppliers in KSA

Other Surge Protection Specialists Serving Saudi Arabia

• DEHN Middle East FZE: Regional subsidiary of the German surge and lightning protection maker DEHN, based in the UAE and serving GCC projects, including Saudi Arabia, through partners.
• ABB, Schneider Electric and Siemens: Supply branded Type 1 and Type 2 SPDs (ABB OVR, Schneider iPRD/iPF, Siemens 5SD7) through authorised electrical distributors in KSA.
• Hitachi Energy, Siemens Energy and ABB: Supply medium and high voltage zinc oxide surge arresters for utilities and substations; contact their Saudi offices for SEC and Aramco projects.

Surge Arrestor and SPD Products Available in KSA

Surge Arrestor Types And Surge Protection Devices In KSA

• Short Answer: Saudi buyers can source lightning arresters (ESE and conventional), low-voltage SPDs (Type 1, Type 2, Type 3), PV and data line SPDs, and medium and high voltage zinc oxide and polymeric surge arresters.
• Why the Type Matters: Each type protects a different point: lightning arresters catch direct strikes, Type 1 SPDs handle lightning current at the main board, Type 2 SPDs handle induced surges at sub-boards, and MV/HV arresters protect lines and transformers.
• How to Use This Section: Find the type that matches your installation, note what to check, then contact the supplier named under each type.

Lightning Surge Arrester For Building And Industrial Lightning Protection

• What It Is: A device or system that safely carries lightning current to earth, often combined with a Type 1 SPD at the main board.
• Problem It Solves: Prevents fires, structural damage and burnt equipment from lightning strikes on roofs, tanks, towers and factory buildings.
• Main Parts: Air terminal, down conductors, test joints, earth electrodes and equipotential bonding, plus SPDs on incoming services.
• Where It Is Used: Tall buildings, warehouses, plants, telecom towers, mosques, schools and remote sites.
• What to Check: Risk assessment to IEC 62305-2, protection level (I to IV), earth resistance target and bonding of metal services.
• Supplier Tip: Ask Lights of Power EST for arrester heads, earthing materials and matching Type 1 SPDs in one order.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

ESE Lightning Arrester For Early Streamer Emission Lightning Protection Systems

• What It Is: An Early Streamer Emission air terminal that launches an upward leader earlier than a plain rod, claimed to give a larger protection radius.
• Problem It Solves: Covers large roofs and open areas with one mast instead of many conventional rods.
• Key Rating: ΔT (advance time) of 25–60 µs, which sets the protection radius (Rp) in NF C 17-102 tables.
• Where It Is Used: Factories, compounds, stadiums, farms and residential towers in KSA.
• What to Check: NF C 17-102 (2011) test report, ΔT value, mast height, two down conductors and earth resistance.
• Important Note: ESE is not covered by IEC 62305; confirm which standard your consultant or Civil Defence approval requires.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Zinc Oxide Surge Arrester For Power Distribution And Substation Protection

• What It Is: A gapless surge arrester built from zinc oxide (metal oxide varistor) blocks that conducts heavily only above its rated voltage.
• Problem It Solves: Limits lightning and switching overvoltages on lines, transformers, cables and switchgear, preventing insulation failure.
• Key Ratings: Rated voltage (Ur), continuous operating voltage (Uc), nominal discharge current (5, 10 or 20 kA) and line discharge class.
• Where It Is Used: 11–33 kV distribution networks, ring main units, pole transformers and substations.
• Related Equipment: Zinc Oxide Surge Arrester, FUYI Surge Arresters and CT/PT Transformers are often bought together for substation and metering panels.
• What to Check: IEC 60099-4 type test report, system earthing (effectively or non-effectively earthed) and SEC specification.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577 (sourcing)  |  utility arrester makers’ KSA offices

Polymeric Surge Arrestor For Outdoor Power Distribution Networks

• What It Is: A zinc oxide surge arrester housed in silicone rubber instead of porcelain.
• Problem It Solves: Lighter, shatter-proof and better in dust, sand and coastal pollution than porcelain arresters.
• Where It Is Used: Overhead lines, pole-mounted transformers and outdoor switchgear in Saudi desert and coastal areas.
• What to Check: Creepage distance for the pollution level (often heavy or very heavy in KSA), rated voltage and disconnector.
• Supplier Tip: Buy from makers with KEMA or CESI type tests and SEC approval.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577 (sourcing)  |  utility arrester makers’ KSA offices

High Voltage Surge Arresters For Substations And Transmission Systems

• What It Is: Station class zinc oxide arresters for 66 kV to 380 kV systems, in porcelain or polymer housings.
• Problem It Solves: Protects power transformers, GIS and transmission lines from lightning and switching surges.
• Key Ratings: Line discharge class 2–5, energy capability, and pressure relief rating.
• Accessories: Surge counters and leakage current monitors to track arrester health.
• What to Check: SEC or Saudi Aramco specification, insulation coordination study and approved vendor list.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577 (sourcing)  |  utility arrester makers’ KSA offices

Surge And Lightning Arrester For Industrial And Commercial Electrical Installations

• What It Is: A combined approach: external lightning protection on the building plus coordinated SPDs inside the electrical system.
• Problem It Solves: Stops both direct strike damage and surges travelling on power and data cables.
• Typical Package: Lightning arrester and earthing, Type 1+2 SPD at the MDB, Type 2 at sub-boards and data line SPDs.
• Where It Is Used: Malls, hospitals, factories, warehouses and office towers.
• What to Check: That the earthing for lightning protection and the electrical earth are bonded.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

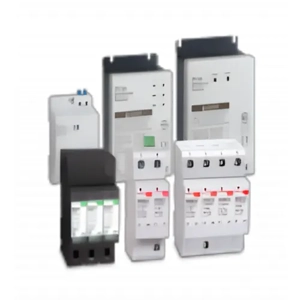

Modular Surge Arresters For Distribution Boards And Electrical Panels

• What It Is: DIN-rail SPDs with plug-in cartridges that can be replaced without rewiring.
• Problem It Solves: Lets maintenance staff swap a spent module quickly and see its status at a glance.
• Features: Visual status window (green/red), remote signalling contact and pole configurations 1P to 3P+N.
• Where It Is Used: MDBs, SMDBs, lighting panels, HVAC and control panels.
• What to Check: Uc (275 V or 320 V for 230 V systems), In and Imax, Up and back-up fuse or breaker size.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Protection Device Type 2 For Low-Voltage Distribution Panels

• What It Is: An SPD tested with an 8/20 µs current wave, for induced and switching surges.
• Problem It Solves: Protects electronics, drives, LED lighting and controls from surges that enter through cables.
• Typical Ratings: In 20 kA, Imax 40 kA, Up 1.2–1.5 kV.
• Where It Is Installed: Sub-distribution boards and close to sensitive equipment, within about 10 m of the load where possible.
• What to Check: Network type, short cable leads to earth and a correct back-up protective device.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Type 1 And Type 2 Panel SPDs For TN, TT And IT Power Networks

• TN-S and TN-C-S: Common in Saudi buildings; SPDs connect line-to-PE and N-to-PE (3+1 or 4+0 configuration).
• TT Networks: Use 3+1 configuration (L-N SPDs plus an N-PE spark gap) so earth faults do not stress the SPD.
• IT Networks: Industrial and hospital IT systems need SPDs rated for line-to-line voltage (Uc around 440–690 V).
• Combined Type 1+2: One device at the main board handles lightning current and gives a low protection level.
• What to Check: Confirm the network with your electrical drawings before ordering, because a wrong SPD can fail on an earth fault.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

DTK-MRJ Surge Protection Devices For Ethernet And Data Communication Lines

• What It Is: The DITEK DTK-MRJ series of inline RJ45 surge protectors, including PoE versions such as DTK-MRJPOE.
• Problem It Solves: Protects network switches, IP cameras and access control from surges on outdoor or long Ethernet runs.
• Where It Is Used: CCTV poles, gate barriers, outdoor Wi-Fi and building automation networks.
• Standards: Buyers search for DTK-MRJ devices meeting IEC 61643 and UL 1449 standards; data-line protectors are usually tested to UL 497B and IEC 61643-21, so ask for the exact certificate.
• What to Check: Cat5e or Cat6, PoE class, shielded or unshielded and a solid earth connection.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

FUYI Surge Arresters For Electrical Power System Protection

• What It Is: FUYI is a brand of zinc oxide and polymeric surge arresters offered by Asian suppliers for distribution networks.
• Where It Is Used: Distribution lines, transformers and switchgear on lower-budget or private network projects.
• What to Check: Rated voltage, discharge current, IEC 60099-4 type test report, independent lab certificates and SEC acceptance before buying.
• Buying Tip: For SEC-connected networks, use only approved vendor brands; confirm FUYI acceptance with the utility first.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577 (sourcing)  |  utility arrester makers’ KSA offices

IEEE 386 Bushing Well For Medium-Voltage Separable Connector Systems

• What It Is: A standard bushing socket on transformers and switchgear that accepts IEEE 386 inserts, elbows and elbow surge arresters.
• Problem It Solves: Gives dead-front, touch-safe cable connections and lets you plug in an elbow arrester at cable ends.
• Where It Is Used: Pad-mounted transformers, underground distribution and ring main units built to American standards (15, 25 and 35 kV class).
• Ratings: 200 A load-break and 600 A dead-break interfaces.
• What to Check: Voltage class, 200 A or 600 A interface and matching brand of insert and elbow.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577 (sourcing)  |  utility arrester makers’ KSA offices

Surge Arrestor Applications In Saudi Arabia

• Short Answer: Surge protection is used in buildings, industry, HVAC, IT, solar, data centres, telecom towers and utility networks across the Kingdom.
• Why It Matters in KSA: Summer thunderstorms in the southwest and Eastern Province, long overhead lines, frequent switching and large HVAC loads make surges common.

Surge Protection Device In KSA For Commercial Buildings And Industrial Electrical Panels

• Need: Protect MDBs, SMDBs, drives, PLCs and LED lighting.
• Typical Setup: Type 1+2 SPD at the MDB and Type 2 at every SMDB.
• What to Check: Network type, fault level and back-up fuse.
• Benefit: Fewer burnt drives, control cards and lighting drivers.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Power Surge Protector In Jeddah For Commercial And Industrial Equipment

• Need: Coastal humidity and grid switching cause surges that damage equipment.
• Typical Setup: Type 2 SPDs at panels and plug-in surge protectors for sensitive devices.
• Sourcing: Riyadh suppliers on this page deliver to Jeddah; confirm lead time.
• Tip: Use SPDs with remote signalling for unattended sites.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577  |  Eshraq Solar Energy (Majmaah & Riyadh): +966 57 058 2202

Lightning Arrester In Riyadh For Building And Industrial Lightning Protection

• Need: Tall buildings, warehouses and towers need lightning protection approved for Civil Defence.
• Typical Setup: ESE or conventional air terminal, down conductors and earth pits with test clamps.
• What to Check: Earth resistance (often below 10 ohms) and annual testing.
• Supplier: Lights of Power EST in Al Amal, Riyadh.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Arrester In Dammam For Industrial Power Distribution Systems

• Need: Plants and petrochemical sites have long cables, large motors and frequent switching.
• Typical Setup: MV surge arresters at transformers, Type 1+2 SPDs at LV boards and SPDs on control circuits.
• What to Check: Saudi Aramco or client specifications and approved brands.
• Sourcing: Ask Riyadh suppliers for delivery, or utility arrester makers’ Eastern Province offices.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

HVAC Surge Protector In Jubail For Air Conditioning And Building Automation Equipment

• Need: Chillers, VRF units, AHUs and BMS controllers are expensive and sensitive to surges.
• Typical Setup: Type 2 SPD in each HVAC panel and data SPDs on BMS lines.
• Benefit: Avoids compressor and inverter board failures after storms or grid switching.
• What to Check: Panel voltage and phase, and space on the DIN rail.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Belkin Surge Protector In Al Khobar For Office Electronics And IT Equipment

• What It Is: Belkin and similar plug-in surge protector strips with joule ratings and protected sockets.
• Where It Is Used: Office PCs, monitors, printers, TVs and home office equipment.
• Limits: Plug-in strips are Type 3 point-of-use protection; they work best with Type 2 SPDs in the panel.
• What to Check: Joule rating, number of sockets, UK-style plug (BS 1363) and USB charging.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

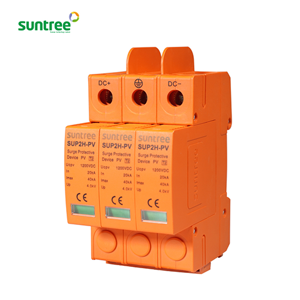

Surge Protection For Solar PV Systems And Inverters In Saudi Arabia

• Need: PV arrays on roofs and open land are exposed to lightning and long DC cables pick up surges.
• Typical Setup: DC SPD (Type 2, IEC 61643-31) in combiner boxes and at the inverter DC input, AC Type 2 SPD at inverter output.
• What to Check: Maximum PV voltage (Ucpv 600–1,500 V DC), Y-connection SPD and earthing of frames.
• Suppliers: Eshraq Solar for components; Zayel Solar for installed systems.

Available From: Eshraq Solar Energy (Majmaah & Riyadh): +966 57 058 2202  |  Zayel Solar (Riyadh): +966 11 409 3353

Surge Protection For Data Centres, Telecom Towers And Control Panels In KSA

• Data Centres: Type 1+2 at the main incomer, Type 2 at UPS and PDU boards, and data line SPDs.
• Telecom Towers: Lightning protection, Type 1 SPD on AC, DC SPDs on rectifiers and coaxial protectors on feeders.
• Control Panels: Type 2 SPDs on 230 V supply and signal SPDs on 4–20 mA and RS-485 lines.
• What to Check: Coordinated design and a low-impedance earthing system.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577  |  Zayel Solar (Riyadh): +966 11 409 3353

Find Surge Arrestor and Surge protection Device Suppliers In KSA

• Short Answer: Match the supplier to the voltage level: LV panel and data SPDs from electrical suppliers, PV SPDs from solar suppliers, and MV/HV arresters from utility-approved manufacturers.
• Use FYIND: Search FYIND for surge protection device suppliers in KSA by product and city, then send the same specification to two or three suppliers.

Surge Arrestor Suppliers In KSA For Industrial And Commercial Electrical Projects

• Who to Ask: Lights of Power EST in Riyadh for panel SPDs and lightning protection items.
• What to Send: Single-line diagram, network type, MDB rating and number of boards.
• What to Expect: A list of SPDs per board, with brand, ratings and price.
• Tip: Ask for datasheets and IEC 61643-11 certificates for consultant approval.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Protection Device Suppliers In Saudi Arabia For Type 1 And Type 2 SPDs

• Type 1: For main boards with lightning protection or overhead supply.
• Type 2: For sub-boards and equipment panels.
• Who to Ask: Lights of Power EST for building SPDs; Eshraq Solar for solar Type 2 SPDs.
• Check: Brand authorisation and stock of replacement modules.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577  |  Eshraq Solar Energy (Majmaah & Riyadh): +966 57 058 2202

High Voltage Surge Arrestor Suppliers In KSA For Substations And Power Networks

• Who Supplies: Utility-approved manufacturers such as Hitachi Energy, Siemens Energy and ABB, through their Saudi offices and approved agents.
• Requirements: SEC or Saudi Aramco approved vendor status, type test reports and factory acceptance tests.
• FYIND Route: Ask Lights of Power EST to source smaller orders, or contact manufacturers directly for projects.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577 (sourcing)  |  utility arrester makers’ KSA offices

Lightning Surge Arrester Suppliers In Saudi Arabia For Building Protection Systems

• Who to Ask: Lights of Power EST for ESE heads, rods, conductors and earthing.
• Design: Ask for a risk assessment and layout drawing, not only the arrester head.
• Approvals: Confirm Civil Defence and consultant requirements before buying.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Modular Surge Arrestor Suppliers In KSA For Distribution Boards

• Who to Ask: Lights of Power EST for modular Type 2 and Type 1+2 SPDs.
• Spares: Ask about replacement cartridges for the same model.
• Brands: Compare ABB, Schneider, DEHN, OBO, Phoenix Contact and Chinese brands on ratings and price.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Zinc Oxide Surge Arrester Suppliers In Saudi Arabia For Medium- And High-Voltage Applications

• Distribution Class: 11–33 kV polymeric arresters for overhead lines and transformers.
• Station Class: 66–380 kV arresters for substations.
• Who to Ask: Utility arrester manufacturers’ KSA offices; Lights of Power EST for sourcing small quantities.
• Check: IEC 60099-4 type tests and utility approval.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577 (sourcing)  |  utility arrester makers’ KSA offices

Surge Protection Features And Working Principle

Surge Protection Device Working Principle For Transient Overvoltage Protection

• Normal Operation: At normal voltage the SPD has very high resistance and draws almost no current.
• During a Surge: When voltage rises above its threshold, the MOV or spark gap conducts in nanoseconds and diverts surge current to earth.
• After the Surge: It returns to high resistance automatically, ready for the next event.
• End of Life: A thermal disconnector separates a worn MOV and the indicator turns red.
• Key Point: An SPD only works with a good earth and short connecting leads.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Key Features Of Surge Protection In Saudi Arabia

• High Temperature Rating: Choose SPDs rated for enclosure temperatures above 50°C common in Saudi summers.
• Replaceable Modules: Plug-in cartridges cut downtime.
• Remote Signalling: Dry contacts alert BMS or SCADA when a module fails.
• Low Protection Level: Lower Up gives better equipment protection.
• Certification: IEC 61643 and, for US-spec projects, UL 1449.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Arrestor Discharge Current And Voltage Protection Level

• In (Nominal Discharge Current): The 8/20 µs current the SPD can handle repeatedly, typically 20 kA for Type 2.
• Imax (Maximum Discharge Current): The highest 8/20 µs current it survives once, typically 40 kA.
• Iimp (Impulse Current): 10/350 µs lightning current for Type 1 SPDs, typically 12.5–25 kA per pole.
• Up (Voltage Protection Level): The residual voltage let through; lower is better, typically 1.2–2.5 kV.
• Uc (Maximum Continuous Voltage): Must exceed the network voltage, e.g. 275 V or 320 V for 230 V systems.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Protection Device With Replaceable Modules And Status Indicators

• How It Works: Each pole has a plug-in module on a fixed base wired into the panel.
• Status Indicator: Green means healthy; red means replace.
• Benefit: Replace a module in minutes without disconnecting cables.
• Tip: Keep a spare module for each SPD model on critical sites.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Protection For TN, TT And IT Power Networks

• TN Systems: Most Saudi buildings use TN-S or TN-C-S; use 4+0 or 3+1 SPD configurations.
• TT Systems: Use 3+1 with an N-PE spark gap.
• IT Systems: Use SPDs with Uc rated for line-to-line voltage.
• Why It Matters: A wrong configuration can cause SPD failure or fire during an earth fault.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Protection Coordination For Main Boards And Distribution Panels

• Layered Protection: Type 1 at the main board, Type 2 at sub-boards and Type 3 near sensitive equipment.
• Coordination: Use SPDs from the same family or follow the maker’s cable length rules so energy is shared correctly.
• Cable Lengths: Keep SPD leads under 0.5 m total to keep let-through voltage low.
• Back-Up Protection: Fit the fuse or breaker size the SPD datasheet specifies.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577

Surge Arrestor Certifications, Compliance And Standards

• Short Answer: LV SPDs follow IEC 61643-11 (or UL 1449 for US-spec projects), data SPDs IEC 61643-21, PV SPDs IEC 61643-31, and MV/HV arresters IEC 60099-4 or IEEE C62.11.
• Why It Matters: Consultants, Civil Defence, SEC and Saudi Aramco reject products without the right test reports.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577  |  Eshraq Solar Energy (Majmaah & Riyadh): +966 57 058 2202

Which Surge Protection Brands Are Available in Saudi Arabia?

Available From: Lights of Power EST (Riyadh): +966 11 402 2577  |  Eshraq Solar Energy (Majmaah & Riyadh): +966 57 058 2202

Surge Protection Device Price In KSA

• Short Answer: Type 2 SPDs cost about SAR 80–2,500, Type 1+2 SPDs SAR 900–6,000, PV DC SPDs SAR 60–900 and ESE arrester heads SAR 3,000–25,000.
• What Affects Price: Type, kA rating, poles, brand, certification and remote signalling.

• Note: Prices are indicative estimates; request a written quote from FYIND suppliers.

Available From: Lights of Power EST (Riyadh): +966 11 402 2577  |  Eshraq Solar Energy (Majmaah & Riyadh): +966 57 058 2202  |  Zayel Solar (Riyadh): +966 11 409 3353

Frequently Asked Questions About Surge Arrestors
