Penstock Valve Suppliers in Saudi Arabia – Wall, Channel, Motorized & Stainless Steel Penstocks

Fyind KSA connects contractors, consultants, and procurement teams with verified penstock valve suppliers across Saudi Arabia.

From wall-mounted and channel penstocks to motorized, stainless steel, and custom-fabricated systems, our listed suppliers deliver certified solutions designed for wastewater, desalination, dam, and industrial water applications across the Kingdom.

Whether you are sourcing for NWC, SWCC, municipal infrastructure, or private industrial projects, Fyind helps you identify trusted manufacturers and distributors that meet DIN, BS, and AWWA standards - all in one place.

What to Look for in a Penstock Supplier in Saudi Arabia

• They supply internationally certified products (BS 7775, DIN 19569, AWWA C561)
• They offer the full range — wall penstocks, channel penstocks, motorized, manual, stainless steel
• They can supply custom sizes, not just standard catalog items
• They provide full after-sales support, not just delivery and disappear
• They have real project history in Saudi water, wastewater, and dam projects

Leading Penstock Valve Suppliers in Saudi Arabia

Who are the best penstock valve suppliers in Saudi Arabia?

For wastewater treatment plants and pumping stations in Jeddah:

AVK Saudi Valves Manufacturing (Jeddah Industrial City — +966 12 637 1570) is the strongest option.

They manufacture penstocks in-house through Orbinox, supply wall and channel penstocks in stainless steel AISI 304, and have a 24/7 leakage repair line.

For general water management, irrigation, and municipal projects in Dammam and Eastern Province:

Alyamitech (Dammam — +966 560 466 106) is the accessible local distributor for stainless steel Envotec penstocks, weir type, and square type models.

For SWCC desalination and large NWC infrastructure projects:

Middle East Valve (middleeastvalve.com) is SWCC-approved, supplies documentation-heavy projects, and covers Riyadh, Jeddah, Jubail, Yanbu, and Dammam.

For dam, hydro, and large-scale custom sizes (up to 4000×4000mm):

Orbinox via AVK SVMC (+966 12 637 1570) is the go-to — they build the largest penstocks available in the market.

What is a penstock valve and how does it work in water control systems?

A penstock is a gate usually square or rectangular that sits in a wall or inside a channel. When you want water to flow, you raise the gate. When you want to stop flow, you lower it back down. That is the basic idea. Simple, but extremely reliable.

In practice:

• A spindle (also called a stem) runs from the gate up to a handwheel or motorized actuator
• Turning the handwheel raises or lowers the gate
• Rubber seals around the gate edges stop water from leaking past when it is closed
• The frame is bolted or embedded into the concrete wall around the opening

Penstocks control how much water moves between tanks, channels, pipes, and treatment chambers in wastewater plants, dams, irrigation canals, desalination systems, and flood control structures.

What is the difference between a penstock valve and a sluice gate?

They do the same job both stop and control water flow. The difference is mostly in language, location, and scale.

Penstock

is the term most used in the UK, Australia, and the water treatment industry.

It usually refers to smaller to medium-sized gates (100mm to 2000mm) used inside treatment plants, channels, and enclosed structures.

Sluice gate

is more commonly used for larger, outdoor, open-channel applications — dams, reservoirs, and irrigation headworks.

Sizes often go much larger (up to 4000mm and beyond).

In Saudi Arabia, both terms are used depending on the supplier and the project type.

AVK / Orbinox refer to their products as "penstocks" — available from 150×150mm to 4000×4000mm.

For dam and hydro projects, you will see both terms in project specifications.

Either way, the product and the function are the same thing.

What are the different types of penstocks used in hydro and sewage systems?

There are several types. Each one is designed for a specific location and job.

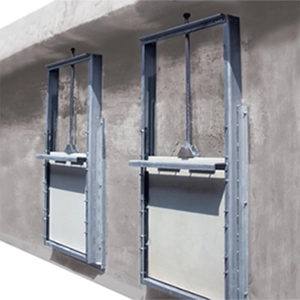

Wall penstock (wall-mounted):

Installed directly into a wall at a pipe outlet, tank wall, or concrete structure.

The gate slides up and down in a frame that is bolted or cast into the wall.

AVK supplies wall penstocks from 150×150mm to 2000×2000mm (bidirectional), and 1300×1300mm up to 4000×4000mm (unidirectional) via Orbinox.

Channel penstock:

Installed across an open channel, like a canal or a treatment plant channel.

The frame sits in the channel walls, and the gate slides down to block flow.

AVK channel penstocks go from 150×150mm to 1000×1000mm (standard unidirectional).

Weir type penstock:

Used when you want to control water level, not just stop flow completely.

The gate can be raised slightly so water spills over the top useful in flood control and irrigation management.

Square type penstock:

Designed for square or rectangular pipe openings in industrial settings.

Used in cooling water systems, process water, and stormwater control.

Stop log penstock:

A simple stacking system individual panels (logs) are dropped into slots to build up a temporary dam.

Used in maintenance situations where you need to isolate part of a system temporarily.

Motorized (actuated) penstock:

Any of the above types, but with an electric, pneumatic, or hydraulic actuator fitted.

The gate opens and closes automatically controlled remotely or by a SCADA system.

AVK / Orbinox supply all types with handwheel, electric, pneumatic, or hydraulic actuator options.

Which penstock manufacturers in Saudi Arabia supply motorized and stainless steel penstocks?

Motorized penstocks:

AVK Saudi Valves Manufacturing (+966 12 637 1570, Jeddah) is the primary source.

Their Orbinox-manufactured penstocks are available with electric actuators, pneumatic actuators, and hydraulic actuators — all with remote operation capability.

Sizes: 150×150mm up to 2000×2000mm for standard motorized models.

Stainless steel penstocks:

AVK SVMC supplies wall penstocks in AISI 304 stainless steel — standard for water and wastewater treatment applications in KSA.

Alyamitech (Dammam — +966 560 466 106) distributes Envotec stainless steel penstocks — corrosion-resistant, designed for long service life in harsh environments.

For both motorized and stainless steel in one product, AVK SVMC (+966 12 637 1570) is the direct contact.

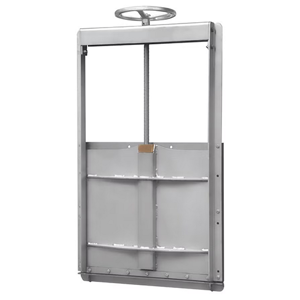

Which companies manufacture wall-mounted penstock valves in Saudi Arabia?

AVK Saudi Valves Manufacturing — Jeddah

+966 12 637 1570 | sales_sv@avksvmc.com

Wall penstocks with non-rising stem and closed frame.

Material:

AISI 304 stainless steel.

Sealing:

EPDM rubber on all four sides — bidirectional up to 1200×1200mm.

Complies with ATEX Directive 95/9/CE (Group II Category 2, Zone 1).

Leakage rate below DIN 19569-4 Class 5 maximum (1.20 L/min per seating meter).

Frame allows floor level, mid-height, or elevated installation.

Orbinox (via AVK SVMC) — Jeddah

MU Wall Penstock range: 200×200mm to 4000×4000mm.

Carbon steel or stainless steel.

Handwheel, electric, pneumatic, or hydraulic actuators.

Standards:

DIN 19569-4 / BS 7775 / AWWA C561.

Alyamitech — Dammam (+966 560 466 106)

Envotec wall-mounted stainless steel penstocks available for water treatment and industrial water management applications.

Where can you find top penstock valve suppliers in Saudi Arabia with bulk delivery?

For bulk project supply covering multiple cities:

Alyamitech (Dammam — +966 560 466 106)

Supplies across KSA for municipal, agricultural, and industrial water management projects.

Middle East Valve (middleeastvalve.com)

Covers Riyadh, Jeddah, Jubail, Yanbu, Ras Al Khair, and Dammam with documentation packages for large infrastructure tenders.

AVK SVMC (Jeddah — +966 12 637 1570)

Serves the whole Kingdom from their Jeddah manufacturing facility.

Their 24/7 service line (+966 50 595 5166) covers emergency supply needs.

For SWCC, NWC, or Ministry of Environment, Water and Agriculture (MEWA) approved projects — Middle East Valve is the most streamlined option for compliant bulk supply with full documentation.

Who supplies hydro power plant penstocks in Saudi Arabia for dam infrastructure?

Saudi Arabia has 522 dams with a total storage capacity of 2.30 billion cubic meters.

Most are concentrated in Asir, Mecca, and Jazan regions.

These dams use large-format penstocks and sluice gates to manage water release, spillway control, and turbine feed.

Orbinox via AVK SVMC (Jeddah — +966 12 637 1570):

Their MU unidirectional wall penstock goes up to 4000×4000mm — large enough for dam outlet structures and turbine inlet gates.

Carbon or stainless steel construction with hydraulic actuator option.

Compliant with DIN 19569-4 / BS 7775 / AWWA C561.

For dam-scale penstocks requiring hydraulic actuation and head pressures beyond standard product ranges, project-specific engineering is required.

Contact AVK SVMC or Orbinox directly with your head pressure, opening size, and actuation requirements for a technical quotation.

What is the price of penstock valves in Saudi Arabia?

Penstock prices vary based on size, material, actuation type, and project quantity.

Small manual penstock (150×150mm to 300×300mm, stainless steel, handwheel):

Roughly SAR 1,500 – 5,000 per unit depending on head pressure rating and material grade.

Medium penstock (500×500mm to 1000×1000mm, AISI 304, manual):

SAR 8,000 – 25,000 per unit, depending on configuration and frame type.

Large penstock (1200×1200mm and above, manual or motorized):

SAR 30,000 – 150,000+ per unit.

Price increases significantly with motorized actuators.

Custom large-format (1300×1300mm to 4000×4000mm via Orbinox):

Project-specific pricing — always requires a quotation from AVK SVMC (+966 12 637 1570) with your full technical specification.

What affects price most:

• Size is the biggest driver - price roughly triples as you double the dimensions
• Stainless steel (AISI 304 or 316) costs more than carbon steel
• Motorized actuators (electric/pneumatic/hydraulic) add SAR 5,000–50,000+ depending on size and type
• Custom embedment frames or flush-bottom configurations add fabrication cost
• Quantity - bulk orders always unlock better pricing, especially for NWC or SWCC project procurement

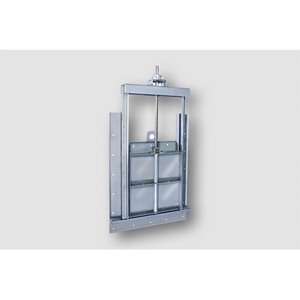

Custom-sized penstocks (100 mm to 5000 mm) in Saudi Arabia

Standard catalog sizes cover 150×150mm to 2000×2000mm from AVK SVMC / Orbinox.

For non-standard openings, you need custom fabrication:

Who supplies custom-sized penstocks in KSA:

AVK SVMC (Jeddah — +966 12 637 1570) — custom sizes via Orbinox's heavy-duty construction with modular design, available up to 4000×4000mm and beyond for project-specific requirements.

Alyamitech (Dammam — +966 560 466 106) — custom Envotec stainless steel penstocks for water management applications.

What you need to provide for a custom quotation:

• Opening width × height (mm)
• Wall thickness at installation point
• Seating head (maximum water pressure behind the gate, in meters)
• Actuation type required (handwheel, electric, pneumatic, hydraulic)
• Material preference (carbon steel, SS 304, SS 316)
• Installation type (wall mounted, channel mounted, embedded in concrete)
• Standards required by your project specification (DIN 19569, BS 7775, AWWA C561)

Do penstock valve suppliers in Saudi Arabia offer installation and commissioning support?

Yes, but the level of support varies by supplier.

AVK SVMC (Jeddah — +966 12 637 1570):

Offers 24/7 leakage repair service (+966 50 595 5166).

Full product support for wall and channel penstocks, including Orbinox installation, maintenance, and operating instructions available in PDF format. Ask explicitly about on-site commissioning for your project.

Alyamitech (Dammam — +966 560 466 106):

Distributor for Envotec products.

Confirm installation support availability at the time of enquiry, especially for remote project sites in Eastern Province.

Middle East Valve (middleeastvalve.com):

Provides full documentation packages (traceability records, hydrostatic testing, inspection certificates) — standard requirement for SWCC and NWC projects.

What to always confirm in writing before ordering:

• Is commissioning included or is it extra?
• Will a technician visit the site for first operation?
• What is the warranty period for seals and actuators?
• What is the response time for a service call in your region?

What is the lifespan of a penstock valve in wastewater treatment plants?

A well-specified and properly maintained penstock should last 20–30 years in a wastewater treatment plant.

The factors that decide whether yours reaches that lifespan:

Material choice:

Stainless steel (AISI 304 or 316) outlasts carbon steel in wastewater environments.

Carbon steel with protective coating is acceptable for less aggressive conditions, but SS is always the safer long-term specification.

Alyamitech (+966 560 466 106) and AVK SVMC (+966 12 637 1570) both stock stainless steel as standard for wastewater applications.

Seal condition:

EPDM rubber seals are the most common seal material for wastewater penstocks.

They are resistant to chemicals and sewage.

Seals typically last 10–15 years before replacement is needed.

This is a maintenance item, not a product failure.

Operating frequency:

A penstock operated daily wears faster than one opened monthly.

Motorized penstocks with actuators should have the actuator serviced every 2–3 years.

Water quality:

Highly corrosive wastewater (high chloride, high H₂S) accelerates wear.

For aggressive environments, upgrade to AISI 316 stainless steel and specify EPDM seals as a minimum.

Maintenance practice:

A penstock that is never exercised can seize.

Any penstock that stays in one position for months should be operated (fully open and close cycled) at least once every 3–6 months to keep seals and spindle threads functioning properly.

How to operate a penstock valve safely?

For manual (handwheel) penstocks:

1. Check the upstream water level before operating. Never open a penstock without knowing what pressure is behind it.
2. Turn the handwheel slowly - never force it. If it requires excessive force, there is a problem (seized spindle, debris, or hydraulic lock). Stop and investigate.
3. Open in stages on high-head applications. Sudden full opening on a large penstock under high pressure can cause hydraulic shock in downstream pipes.
4. Do not leave the gate at a partial position unless it is specifically designed for flow control. Most wall penstocks are designed for fully open or fully closed operation.
5. After closing, confirm the gate is fully seated by checking for leakage at the downstream side.

For motorized (actuated) penstocks:

1. Only operate from the designated control panel or SCADA terminal.
2. Confirm the actuator limit switches are set correctly before first operation — wrong limits can drive the gate past its travel and damage seals or the spindle.
3. Never manually override the actuator under live pressure without first isolating the upstream source.
4. Log all open/close operations. This helps identify unusual torque trends before failures occur.

How to properly operate a penstock valve for long-term performance?

Long-term performance comes from three habits - regular exercising, lubrication, and inspection.

Exercise the gate regularly:

Once every 3–6 months, fully open and close every penstock on site, even ones that are normally left in a fixed position.

This prevents seals from permanently compressing in one position and spindle threads from seizing.

Lubricate the spindle:

The spindle thread (the rod that moves the gate up and down) needs grease.

Use a marine-grade or stainless-steel-compatible grease.

Frequency: every 6–12 months depending on operating conditions.

For penstocks near seawater or in humid environments, increase frequency.

Inspect seals annually:

EPDM seals in wastewater environments should be visually inspected every 12 months.

Look for hardening, cracking, or deformation.

Replace before leakage develops, not after.

Keep the spindle thread clean:

Debris entering the spindle thread accelerates wear.

In open-channel installations, fit a spindle cover to protect the thread from grit, sand, and biological fouling.

Document everything:

Keep a log of operation dates, lubrication dates, and any observations.

This is especially important for SWCC, NWC, and Aramco-operated facilities where asset management records are mandatory.

Wastewater Treatment Penstocks in Saudi Arabia

Saudi Arabia allocated approximately USD 3.29 billion for 86 wastewater treatment plant projects under the NWC's 2023 budget.

Each plant uses penstocks extensively at inlet screens, aeration tanks, clarifier channels, sludge transfer points, and effluent outlets.

The most common penstock specifications in Saudi wastewater treatment plants:

• Size range: 300×300mm to 1500×1500mm (most common: 500×500mm to 1000×1000mm)
• Material: Stainless steel AISI 304 as standard; AISI 316 for aggressive effluent zones
• Actuation: Mix of manual handwheel (lower-frequency operation) and electric actuator (regular operation or SCADA-integrated points)
• Standard: DIN 19569-4 or BS 7775
• Sealing: EPDM, all four sides, low leakage class

For wastewater treatment plant penstocks in Saudi Arabia, contact:

AVK SVMC, Jeddah — +966 12 637 1570 | sales_sv@avksvmc.com

Alyamitech, Dammam — +966 560 466 106 | info@alyamitech.com

Middle East Valve — middleeastvalve.com (for SWCC/NWC project procurement with full documentation)

Top Penstock Valve Companies in KSA

Frequently Asked Questions

Can I order a penstock smaller than 150mm?

Standard penstock frames start at 150×150mm from most suppliers.

For smaller circular inline penstocks (100mm–150mm pipe size), inline HDPE penstocks (like the Freedrain AHL-S type in SS 316L with EPDM seals) are available from specialist distributors.

Contact Alyamitech (+966 560 466 106) to confirm availability.

Is a rising stem or non-rising stem penstock better?

Rising stem penstocks give you a visual indicator of gate position, the spindle extends upward as the gate opens.

Non-rising stems are compact but require a position indicator.

For unmanned locations or outdoor installations with limited headroom, non-rising stem is the preferred choice.

AVK SVMC (+966 12 637 1570) supplies both configurations.

Do penstocks need municipality or project approval in Saudi Arabia?

For penstocks installed within NWC, SWCC, or MEWA-regulated water infrastructure, the equipment must comply with the project specification — typically DIN 19569-4, BS 7775, or AWWA C561.

Supplier certification and material documentation are required for approval.

For private industrial facilities, confirm requirements with your project engineer.

Can I get the same penstock for both seawater and sewage applications?

No. Seawater requires AISI 316 stainless steel as a minimum due to higher chloride content. Standard wastewater penstocks in AISI 304 are not adequate for seawater service.Confirm your application with AVK SVMC or Middle East Valve before ordering.

Do suppliers deliver to smaller cities — Taif, Buraidah, Abha, Jizan?

Yes. Middle East Valve and AVK SVMC cover nationwide delivery. Alyamitech (Dammam) covers Eastern Province primarily but can arrange freight to other regions. Confirm delivery terms (delivered to site vs. ex-factory) in your quotation.
