Looking for steam trap suppliers in KSA? This page connects you with verified steam trap suppliers in Saudiand steam trap suppliers in Middle East markets, along with the and international brands they represent. As trusted suppliers of steam trap in Saudi Arabia, these companies stock thermodynamic steam traps, float & thermostatic (F&T) steam traps, inverted bucket steam traps, thermostatic steam traps, bimetallic steam traps and balanced pressure steam traps for refineries, petrochemical plants, power generation, boilers, heat exchangers and industrial process heating.

Compare steam trap solutions from leading manufacturer names including Spirax Sarco, TLV, Armstrong International, Watson McDaniel, Yarway, GESTRA, Forbes Marshall and ARI, and see the brands our steam trap suppliers offers across mechanical, thermodynamic and thermostatic steam trap ranges, suitable for high-pressure steam lines, steam tracing, reboiler drainage and condensate removal in piping systems. Browse steam trap types, specifications of steam trap models, application of steam trap by industry, working principle, HSN code, supplier contact details and delivery options across Riyadh, Dammam, Al Khobar, Jubail and throughout Saudi Arabia and the wider Middle East — and see where these products are used on real project sites.

What Is a Steam Trap and Its Functions?

A steam trap is an automatic valve fitted into a steam line or on steam-using equipment that discharges condensate (and air/non-condensable gases) while retaining live steam inside the system. As steam gives up its latent heat across a heat exchanger, reboiler, steam-traced line or process coil, it condenses into water — if that condensate is left in the line it causes water hammer, corrosion and reduced heat transfer, so the core steam trap function is to sense the difference between steam and condensate and open only for the condensate.

The steam trap working principle depends on the trap's operating mechanism — density difference (float traps), temperature difference (thermostatic and bimetallic traps), or the thermodynamic behaviour of flashing condensate (thermodynamic traps). In a piping run, a steam trap is normally installed at low points, drip legs, the outlet of heat exchangers and at the end of steam mains, typically preceded by a strainer and isolation valves and followed by a check valve to prevent condensate backflow — this is what is generally meant by “steam trap in piping.”

Buy Best Steam Trap From KSA Suppliers

Before Choosing a Steam Trap

✓ Operating Pressure: The steam line pressure the trap must withstand, commonly PN16–PN40 (ANSI 150–900) for industrial and refinery duty in Saudi Arabia.

✓ Steam Trap Types: Thermodynamic, Float & Thermostatic (F&T), Inverted Bucket, Thermostatic, Bimetallic or Balanced Pressure — match the mechanism to the condensate load and pressure profile rather than defaulting to the cheapest option.

✓ Differential Pressure: The gap between upstream steam pressure and downstream (back) pressure — this governs how fast condensate can be discharged and whether the trap can overcome the return-line pressure.

✓ Condensate Load: The maximum kg/hr of condensate the trap must clear, including a safety margin for start-up loads that can run several times the running load.

✓ Steam Temperature & Body Material: Cast steel or forged carbon steel for standard process duty, investment-cast stainless steel for corrosive or high-temperature superheated service, and cast iron for lower-pressure utility lines.

✓ Back Pressure & Start-Up Air Load: Traps discharging into a pressurised condensate return line need enough differential capacity; thermostatic and bimetallic traps also need to vent start-up air freely to avoid air-binding.

✓ Installation Orientation & Water Hammer: Float and inverted bucket traps generally require a specific mounting orientation; correct sizing and a properly pitched drip leg reduce the risk of water hammer in the line.

✓ Pipe Size & Connection: Screwed (BSP/NPT), socket-weld or flanged (ANSI/DIN) connections from DN15 up to DN50 and above, sized to the trap's discharge capacity rather than simply matching the line size.

✓ Application: Steam Distribution, Process Heating, Steam Tracing, Boiler Drainage, Heat Exchangers, Reboilers and Petrochemical Steam Systems.

✓ Maintenance Requirements: Look for traps with easily replaceable internals or capsules, an external strainer, and a design that allows periodic testing without removing the whole body from the line.

✓ What to Send With Your Enquiry: Steam pressure and temperature, condensate load (kg/hr), back pressure, connection size and type, body material, and the application (steam main, tracing, heat exchanger, reboiler) — this lets a supplier size and quote the correct steam trap type first time.

✓ Benefits: Energy Savings • Reduced Water Hammer • Corrosion Protection • Longer Equipment Life • Reliable Automatic Condensate Discharge

✓ Buyer's Tip: Choose the steam trap type based on condensate load and back pressure, not price alone — an undersized trap backs up condensate and causes water hammer, while an oversized one wastes live steam through premature blow-through.

Specifications of Steam Trap Models Available From Saudi Suppliers

The exact specifications of steam trap models vary by manufacturer, but the following ranges are typical for industrial and refinery duty in Saudi Arabia:

Application of Steam Trap by Industry in KSA

The application of steam trap equipment spans almost every steam-using industry in Saudi Arabia:

• Oil & Gas / Refineries: High-pressure steam mains, process heaters and reboilers.
• Petrochemical Plants: Steam distribution, jacketed vessels and reaction-heating systems.
• Power Generation: Boiler drainage, turbine steam lines and auxiliary steam systems.
• HVAC & Facility Maintenance: Unit heaters, calorifiers and building steam risers.
• Food & Process Industries: Cooking, sterilising and process-heating equipment.
• Steam Tracing Networks: Keeping pipelines and instruments above their process temperature in outdoor plant areas.

Match Your Application to the Right Steam Trap — Shop Thermodynamic Steam Traps , Mechanical Steam Trap and Thermostatic Steam Trap From KSA Suppliers

Verified Steam Trap Suppliers in KSA – Riyadh, Al Khobar & Dammam Suppliers

International sourcing note: For bulk or OEM steam trap sourcing, some Saudi buyers also work through international manufacturing partners such as Volfram Systems India Pvt. Ltd. (+91 93095 34688), which supplies steam traps and related process equipment for export to the Middle East — confirm import lead times and local after-sales support before ordering directly from an overseas manufacturer.

Which Steam Trap Type Do You Actually Need?

Steam traps are broadly grouped into three families — mechanical steam trap designs (float and inverted bucket), thermostatic steam trap designs (bellows and bimetallic), and thermodynamic steam traps (disc-type) — and are not interchangeable. Match your application to the closest mechanism:

• Thermodynamic Steam Trap: compact disc-type trap using the velocity difference between flashing condensate and live steam — robust, simple and widely used on steam mains. Thermodynamic steam traps are generally considered among the best steam trap options for high-pressure, high-cycle refinery lines because of their single-moving-part reliability.
• Float & Thermostatic (F&T) Steam Trap — a Mechanical Steam Trap: a float ball gives continuous, load-proportional discharge while a thermostatic element vents air — the standard choice for heat exchangers.
• Inverted Bucket Steam Trap — also a Mechanical Steam Trap: an inverted bucket floats on condensate and sinks when steam collects underneath, opening the discharge valve — tolerant of water hammer and dirty condensate.
• Thermostatic Steam Trap: a bellows or bimetallic element opens as the temperature drops below steam saturation — well suited to steam tracing and jacketed lines.
• Bimetallic Steam Trap: stacked bimetallic strips give a wide, adjustable discharge temperature — useful where sub-cooled condensate improves heat recovery.
• Balanced Pressure Steam Trap: a fluid-filled capsule balances against system pressure so the trap discharges just below saturation temperature across varying loads.

Steam Trap Types Comparison Table

Steam Trap Manufacturer & Price Comparison

Here are the brands our steam trap suppliers offers, from each named steam trap manufacturer down to the trap types they commonly stock:

Steam Traps for Refineries, Petrochemical & High-Pressure Steam Lines

Suited to refinery process units, petrochemical plants and power stations running high-pressure, high-temperature steam networks.

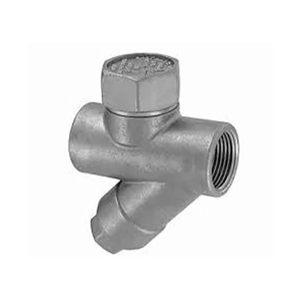

Thermodynamic Steam Trap

• Body: Stainless steel or forged carbon steel, compact disc-type design | Connection: Screwed, socket-weld or flanged, DN15–DN25.
• Function: Live steam flashing across the disc creates a high-velocity flow that closes the disc, while cooler condensate flowing underneath keeps it open — a purely mechanical, robust action with only one moving part.
• Tolerant of superheat, water hammer and dirty condensate, which is why it is the default choice for high-pressure refinery steam mains.

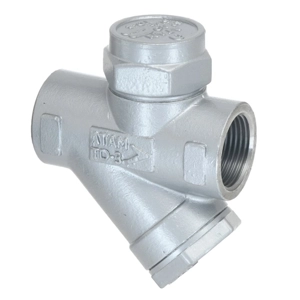

• A drop forged stainless steel version of the same disc-type body trades casting economy for a denser, forged grain structure — giving extra strength on high-cycle, high-pressure lines where a cast body would be more prone to fatigue.

Available From: Middle East Valve — +966 55 463 5090

Balanced Pressure Steam Trap

• Body: Stainless steel with a fluid-filled capsule element | Connection: Screwed or flanged, DN15–DN25.
• Function: The capsule fluid's vapour pressure tracks the surrounding steam pressure, so the trap keeps discharging just below saturation temperature across a wide range of loads and pressures.
• A common choice on petrochemical plant steam systems where load swings between start-up and full running conditions.

Available From: Middle East Valve — +966 55 463 5090

Steam Traps for Boilers, Heat Exchangers & Reboilers

Built for process heating equipment where continuous, load-matched condensate discharge protects heat-transfer efficiency.

Float & Thermostatic (F&T) Steam Trap

• Body: Cast steel or stainless steel | Mechanism: Float ball linked to a discharge valve, with a separate thermostatic air vent.
• Function: The float rises and falls with the condensate level, giving continuous discharge that is proportional to the load — ideal where condensate arrives steadily rather than in slugs.
• Handles large air loads well at start-up, which is why it is standard on heat exchangers and unit heaters.

Available From: Nour Al Biader For Operation and Maintenance — +966 55 507 6993

Inverted Bucket Steam Trap

• Body: Cast steel or stainless steel | Mechanism: An inverted bucket linked to a valve, floating in condensate.
• Function: Steam entering the bucket makes it buoyant, closing the valve; as the steam condenses the bucket sinks and opens the valve to discharge condensate — simple, reliable and resistant to water hammer.
• Well suited to boiler steam line condensate and outdoor drip-leg service where robustness matters more than fine temperature control.

Available From: Dakhil Ali Al Dossary For Trading EST. — +966 54 947 0786

Steam Traps for Steam Tracing & Reboiler Drainage

Purpose-suited to low condensate-load lines, jacketed pipework and applications where sub-cooled discharge improves energy recovery.

Thermostatic Steam Trap

• Body: Bronze, cast steel or stainless steel | Mechanism: Bellows or a balanced-pressure capsule reacting to steam temperature.
• Function: The element closes once temperature reaches steam saturation and reopens as it cools, making it well matched to the small, steady condensate loads found on steam tracing lines.
• Compact size makes it a common choice on jacketed pipework and instrument tracing where space is limited.

Available From: Valves Technical Trading EST. — +966 56 003 0674

Bimetallic Steam Trap

• Body: Stainless steel | Mechanism: Stacked bimetallic strips that flex with temperature to open and close the discharge valve.
• Function: The discharge temperature can be adjusted by the strip configuration, allowing condensate to sub-cool before release — useful where recovering that extra heat improves overall efficiency.
• Common on reboiler condensate removal duties in petrochemical and process plants.

Available From: Valves Technical Trading EST. — +966 56 003 0674

Frequently Asked Questions - Steam Trap Suppliers in KSA

Related Products — Traps & Strainers

• Y Strainer — Inline strainer fitted upstream of a steam trap to catch scale and debris.
• Basket Strainer — Larger-capacity strainer for higher-flow steam and condensate lines.
• P Trap — P-shaped drainage trap used in general plumbing and condensate drain lines.
• Bottle Trap — Compact drainage trap for tight installation spaces.
• Floor Trap — Floor-mounted drainage trap for plant rooms and wash areas.
• Breather — Vents air and pressure from tanks and vessels in conditioning equipment.
• Flexible Drain Pipe — Flexible piping for routing condensate and drainage discharge.
• Drain Strainer — Strainer fitted at drainage outlets to keep debris out of the line.
