Motor Grader Suppliers in Saudi Arabia

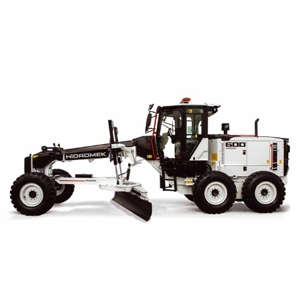

1) HIDROMEK HMK 600 MG — Supplier: Bakheet Company For Machinery
Supplier: Bakheet Company For Machinery — Ar Rayaan, Alharamain Highway, Jeddah 23643. Phone: +966 12 691 0550 / Mobile: +966 59 408 4915.
Model & Class
Model: HMK 600 MG
Type: Motor grader (medium/heavy class)
Item code: UECLK8
Updated: 2025-07-09
Engine & Performance
Engine maker/model: Mercedes-Benz OM936 LA — variable horsepower configuration.
Displacement: ~7,200–7,700 cm³ (7.2–7.7 L).
Max Power: 140–160 kW (≈187–214 hp) (variable HP mode).
Max Torque: ~1000 Nm.
Travel / Road Speed: forward top ≈45 km/h; gear speeds per OEM PDF.
Weights & Dimensions
Operating/Shipping weight: ~18,470–18,785 kg (≈18.5 t).
Transport L×W×H (approx): 10.19 m × 2.45 m × 3.4 m.
Mouldboard / Blade
Blade width (mouldboard length): ~3.71 m (typical).
Blade specs: multi-segment blade options; moldboard tilt/side shift ranges noted in OEM docs.
Hydraulics & Steering
Max working pressure: ~175 bar.
Steering: articulation + front wheel lean (wheel lean ±20° total, oscillation ±15°).
Transmission & Brakes
Transmission: multi-gear powertrain with multiple forward gears.
Brakes: air-actuated multi-disc oil-cooled service brakes; spring parking.
Tyres
Typical factory tyre: 14.00-24, heavy duty.
Cabin & Operator
ROPS/FOPS certified cabin; air conditioning optional/standard depending on spec; ergonomic control layout.
Attachments / Options
Rear ripper, front blade, bilateral levelling automatic available as options.
Emission & Fuel
Emission level: typically Stage IIIA / Tier III configuration for some markets; confirm with supplier for Saudi spec.
Fuel capacity: confirm with supplier (not published in the sources found).
Use Cases / Suitability
Road building, grading for highways, site prep in mixed terrain; advertised for good manoeuvrability and fuel-efficient variable HP operation.
Notes for Buyer / TCO
Strengths: variable-HP engine for fuel economy; heavy torque; articulated steering.
Check: certified Saudi emissions configuration, local parts availability and warranty terms from Bakheet (confirm lead time & spare parts stock).

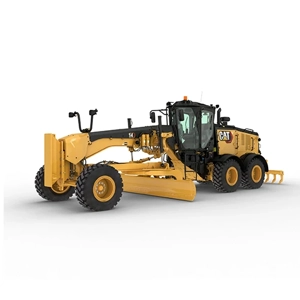

2) Caterpillar 14 Motor Grader — Supplier: Zahid Tractor
Supplier: Zahid Tractor — Amir Fahad Street, Jeddah. Phone: +966 12 667 1156. Network: 24 branches across Saudi Arabia.
Model & Class
Model family: Cat® 14 motor grader (current 14 Tier 4 / Stage V generation and previous variants).
Engine & Performance
Engine: Cat C13 VHP (variable horsepower) — power variants available; Net base power example listed 238 hp (178 kW) for some configs; other configs show ~196 hp for lower-tier models — check the exact Cat submodel with Zahid.
Max Depth of Cut: up to 593 mm.
Weights & Dimensions
Operating weight (typical equipped): example up to ~25,968 kg (varies by configuration).
Mouldboard / Blade
Blade width examples: 3.7–4.3 m (12–14 ft) depending on configuration.
Blade tip range and lift/side shift ranges provided in Cat datasheet.
Transmission & Drive
Transmission: power shift / torque converter options depending on spec; electronic controls and selectable work modes available.
Cabin & Tech
Cab: air conditioned, ergonomic layout; optional integrated Cat Grade technologies (GPS/automatic blade control) to improve productivity and reduce passes.
Fuel & Capacities
Fuel tank: example spec shows 416 L (depending on config).
Emission
Emission levels: Tier 4 Final / Stage V available in latest config; earlier variants Tier 3/Stage IIIA exist — confirm with Zahid for Saudi emissions variant.
Use Cases
Heavy highway construction, mine access roads, airport grading, high-productivity civil works.
Buyer Notes
Strengths: strong OEM support via Zahid Tractor's national branch network (24 branches) — valuable for parts & field service. Confirm on-site maintenance coverage and warranty packages with Zahid.
Heavy Construction Equipment Suppliers in Saudi Arabia

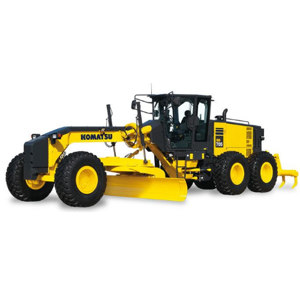

3) Komatsu GD705-5 — Supplier: Abdul Latif Jameel Machinery
Supplier: Abdul Latif Jameel Machinery — Haramain Road, Al Nakhil 2 District, Jeddah. Phone: +966 800 440 0055 / 9200 25543.
Model & Class
Model: Komatsu GD705-5 — heavy motor grader.
Engine & Performance
Engine: Komatsu SAA6D114E-3 (diesel).
Rated Output Power: ~260 hp (≈194 kW) @ 1,950 rpm.
Blade Pull: ~10,920 kg; Blade Down Force: ~9,082 kg.
Weights & Dimensions
Operating weight: approx 19.3–22.15 t (≈22,150 kg typical).
Transport dimensions (L×W×H): ~11.05 × 4.32 × 3.26 m (approx).
Mouldboard / Blade
Mouldboard: 4,320 × 700 × 25 mm (4.32 m width typical).
Transmission & Drive
Transmission: torque converter drive + automatic/powershift transmission; selectable work modes for efficiency.
Hydraulics
Load-sensing closed-center hydraulics for precise implement control.
Tyres & Mobility
Typical tyres: 16.00-24; outside turning radius ≈7.6 m. Travel speed ~42.5 km/h.
Use Cases
Heavy earthworks, highway construction, large site grading where high blade pull and heavy downforce are required.
Buyer Notes
Strengths: high rated power and blade pull — suitable for high-production projects. Confirm local parts stock and hydraulic hose availability via Abdul Latif Jameel Machinery for Saudi operations.
Construction Equipment Dealers in Saudi Arabia

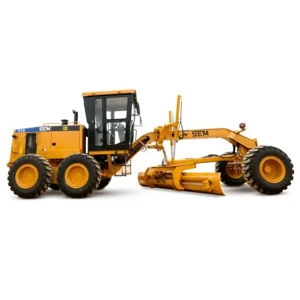

4) SEM 919 — Supplier: Tamgo The Machinery Group LLC
Supplier: Tamgo The Machinery Group LLC — King Saud Road, Al Sawari, Jeddah. Phone: +966 12 667 1156 / +966 800 440 0678.
Model & Class
Model: SEM 919 — medium motor grader (2020–2025 models).
Engine & Performance
Engine gross power: ~140 kW (~187 hp).
Weights & Dimensions
Standard operating weight: 15,070–17,380 kg.
Wheelbase: ~6,140 mm; min turning radius ~7.8 m.
Mouldboard / Blade
Blade length: ~4,279 mm.
Hydraulics & Controls
Load-sensing hydraulic system for consistent blade control.
Use Cases
Urban/municipal grading, road maintenance, general purpose site grading.
Buyer Notes
Strengths: favorable for contractors needing precision at moderate power levels; verify exact OEM sheet for torque and fuel capacity.

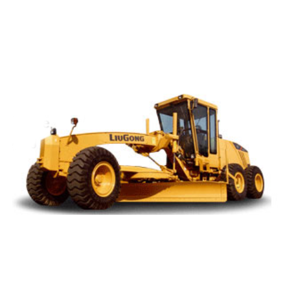

5) LiuGong 422 (CLG422 / CLG422I) — Supplier: Al Qahtani Vehicle & Machinery Co
Supplier: Al Qahtani Vehicle & Machinery Co — 9203 King Abdulaziz Rd, Gharb Al Dhahran, Dammam. Phone: +966 13 826 1477.
Model & Class
Model: LiuGong 422 (CLG422) — mid/heavy motor grader.
Engine & Performance
Engine maker: DCEC / Cummins (varies by market) — Net Power examples ~155 kW (208 hp) @ 2200 rpm in some listings; 234 hp for a Cummins config. Max torque ~1003/1500 Nm depending on variant.
Weights & Dimensions
Operating weight: ~16,500 kg.
Mouldboard / Blade
Blade width: ~4.27 m (common).
Transmission & Drive
Typical transmission: power shift, 6 forward / 3 reverse gearsets; torque converter design.
Use Cases
Road construction, finishing works, medium to large civil projects.
Buyer Notes
Strengths: competitive pricing; Cummins/DCEC engine options. Verify exact engine variant and emission level with supplier (Al Qahtani) prior to procurement.
6) SANY SMG200 Motor Grader — Supplier: Mantrac Saudi Arabia
Supplier: Mantrac Saudi Arabia — Nationwide heavy equipment distributor across KSA.
Model & Class
Model: SANY SMG200 — mid to heavy motor grader.
Engine & Performance
Engine: Cummins diesel engine with net power typically ranging from ~200 to 220 hp depending on configuration, delivering consistent torque for continuous grading cycles.
Weights & Dimensions
Operating weight is approximately ~17,500 kg to 19,500 kg depending on specification.
Mouldboard / Blade
Blade width generally ranges from ~4.0 m to 4.3 m, suitable for both bulk grading and finishing work.
Transmission & Drive
Typical transmission is powershift with torque converter drivetrain and articulated steering design.
Use Cases
Road construction, municipal infrastructure, and contractor-focused grading projects.
Buyer Notes
Strengths: competitive pricing with strong standard specifications. Verify emission compliance, spare parts stocking, and warranty terms with Mantrac Saudi Arabia prior to purchase.
7) Volvo G940 Motor Grader — Supplier: Kanoo Machinery
Supplier: Kanoo Machinery — Authorized Volvo Construction Equipment dealer in Saudi Arabia
Phone: +966 13 882 0700
Customer Care: +966 9200 01009
Model & Class
Model: Volvo G940 — heavy motor grader.
Engine & Performance
Volvo D7 diesel engine delivering ~250 hp, optimized for low-rpm torque and fuel efficiency.
Weights & Dimensions
Operating weight: ~20,000 – 21,500 kg.
Mouldboard / Blade
Blade width: ~4.3 m with load-sensing hydraulic control.
Transmission & Drive
Powershift transmission with articulated frame and front wheel lean.
Use Cases
Precision road grading, infrastructure corridors, industrial projects.
Buyer Notes
Strengths: operator comfort and smooth hydraulics. Verify service SLA and spare parts stock with Kanoo Machinery.

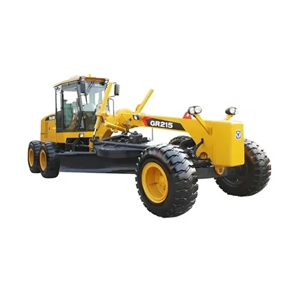

8) XCMG GR215 Motor Grader — Supplier: FAMCO Saudi Arabia
Supplier: FAMCO Saudi Arabia — Authorized XCMG distributor
Phone: +966 11 462 2999
Sales Support: +966 9200 33066
Model & Class
Model: XCMG GR215 — heavy motor grader.
Engine & Performance
Cummins 6CTA8.3 / Shangchai engine (market dependent) producing ~160 kW (≈215 hp).
Weights & Dimensions
Operating weight: ~17,000 – 19,000 kg.
Mouldboard / Blade
Blade width: ~4.27 m, heavy-duty moldboard.
Transmission & Drive
Powershift transmission with torque converter design.
Use Cases
Road construction, large site grading, infrastructure development.
Buyer Notes
Strengths: cost-effective heavy grader. Confirm emission compliance and parts lead time with FAMCO.
FAQs – Motor Graders in Saudi Arabia
1. Which are the most reliable motor grader brands available in Saudi Arabia?
Saudi contractors commonly choose brands such as Caterpillar, Komatsu, Volvo, HIDROMEK, XCMG, LiuGong, and SANY due to their proven performance in high-temperature and desert site conditions, along with local dealer support for parts and service.
2. How do I choose the right motor grader for Saudi site conditions?
Selection should be based on engine power (kW/hp), operating weight, blade width, and torque output, along with availability of after-sales support in Saudi Arabia. For highways and heavy infrastructure, heavy-class graders (20+ tons) are preferred, while mid-class graders suit municipal and finishing works.
3. What engine specifications matter most when buying a motor grader in KSA?
Buyers should focus on net power range, low-rpm torque, engine displacement, and emission compliance suitable for Saudi regulations. Engines from Caterpillar, Cummins, Komatsu, Mercedes-Benz, and Volvo are widely supported across the Kingdom.
4. What is the typical motor grader price range in Saudi Arabia?
Motor grader prices in Saudi Arabia vary based on brand, power class, and configuration. Mid-range graders generally cost less than heavy highway graders, while pricing also depends on attachments, grade control systems, warranty, and whether the unit is new, refurbished, or rental.
5. Are motor grader rentals available in Saudi Arabia?
Yes. Several Saudi suppliers offer short-term and long-term motor grader rentals, often including maintenance and optional operators. Rental is commonly chosen for project-based road works, municipal contracts, and temporary infrastructure projects.
6. What after-sales support should I expect from a grader supplier in Saudi Arabia?
A reliable supplier should provide genuine spare parts, on-site service technicians, preventive maintenance programs, and nationwide branch coverage. This is especially important for large projects operating in remote or desert locations.
7. Which blade size is suitable for road construction projects?
For major road and highway projects, motor graders with 4.0 m to 4.3 m blade width are commonly used to reduce passes and improve productivity. Smaller blade widths are suitable for urban finishing and site leveling.
8. What should buyers verify before finalizing a motor grader purchase?
Before procurement, buyers should confirm:
- Exact engine variant and emission tier
- Operating weight and blade specifications
- Spare parts availability in Saudi Arabia
- Warranty terms and service response time
- Compatibility with grade control or GPS systems, if required
