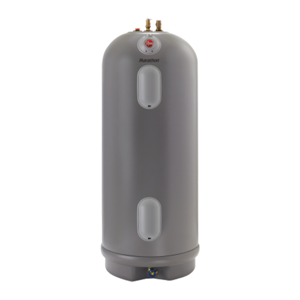

An electric water heater is a appliance that employs electricity as its main energy source to warm water for a variety of residential or commercial applications. It comprises of a tank, heating elements, a thermostat, and safety mechanisms.
There are various types of electric water heaters designed to cater to diverse needs and preferences. Here are some common varieties:
Description: Conventional model featuring a tank that both stores and heats a specific volume of water.
Application: Suited for residences with consistent demands for hot water.
Description: Heats water directly without the need for a storage tank, ensuring an on-demand supply of hot water.
Application: Ideal for individuals prioritizing energy efficiency and a continuous hot water supply.
Description: Utilizes a heat pump to transfer heat from the air or ground to warm the water, offering energy-efficient operation.
Application: Appropriate for areas with moderate climates and a preference for energy-efficient water heating.
Description: Compact units strategically installed near the point of use, such as beneath sinks or in bathrooms.
Application: Efficient for delivering hot water to specific areas without the need for a centralized heating unit.
Description: Harnesses solar energy to heat water, supplemented by an electric element during periods of limited sunlight.
Application: Environmentally conscious choice, especially in locations with abundant sunlight.
The regulation of temperature in an electric water heater is typically overseen by a thermostat, a device crafted to control the water temperature within the tank.
The electric water heater is furnished with one or more thermostats, functioning as temperature-sensitive switches. These thermostats are typically adjustable, enabling users to set their preferred water temperature.
Users have the capability to modify the thermostat to their desired temperature setting. Common temperature ranges fall between 120°F (49°C) and 140°F (60°C), although some thermostats may permit higher settings.
Upon the water temperature dropping below the setpoint, the thermostat triggers the activation of the electric heating elements situated inside the tank. These elements initiate the heating process to attain the desired temperature.
The heating elements continue their operation until the water temperature aligns with the setpoint on the thermostat. Once this temperature is achieved, the thermostat signals the heating elements to deactivate, concluding the heating process.
The storage capacity of an electric water heater pertains to the volume of hot water that the device can contain and supply at any given time.
Electric water heaters are equipped with a storage tank where heated water is stored until required. The size of this tank directly shapes the storage capacity.
Residential electric water heaters are generally available in tank sizes ranging from 20 to 80 gallons (75 to 300 liters).
Storage capacity gains prominence during peak usage periods, such as mornings and evenings, when multiple individuals may require hot water for activities like bathing, dishwashing, or other domestic tasks.
In addition to storage capacity, the recovery rate is a significant consideration. This metric denotes how swiftly the water heater can reheat the water in the tank after a specific amount has been utilized. A higher recovery rate enables the heater to deliver more hot water within a shorter timeframe.
Appropriately sizing an electric water heater involves taking into account the household's peak hot water demand. Ill-fitted heaters, whether oversized or undersized, may result in inefficiencies, potentially wasting energy by heating more water than necessary or providing inadequate hot water during peak demand.
The temperature setting on the thermostat also impacts storage capacity. Higher temperature settings necessitate more energy for water heating, potentially affecting the overall availability of hot water.
