Quarter-turn butterfly valves control pipeline fluid flow. Oil, gas, chemicals, water treatment, HVAC, and other industries employ them. Butterfly valves are simple and inexpensive.
Butterfly valve types:

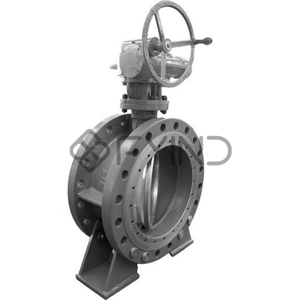

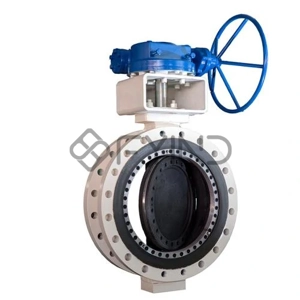

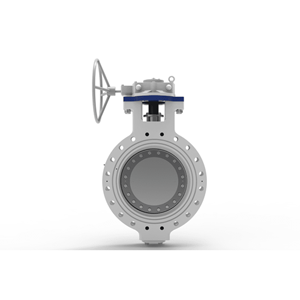

Circular, double-offset, and triple-offset butterfly valves are built differently. Low-pressure circular butterfly valves are the most prevalent. High-pressure applications employ the double-offset butterfly valve, whereas critical applications require the triple-offset butterfly valve.
Butterfly valves are used for:
Butterfly valves benefit:
Butterfly valve flaws:
1. Describe a butterfly valve.
Ans: A butterfly valve is a quarter-turn valve that controls the flow of fluids by using a disc or "butterfly" that turns to open or close the valve.
2. What is the purpose of a butterfly valve?
Ans: When the valve is open, the disc is in the same direction as the flow, which lets fluid through. When the valve is closed, the disc moves so that it is perpendicular to the flow of fluid. This stops the fluid from going through.
3. What are a butterfly valve's main parts?
Ans: The body, seal, disc, and stem are the main parts of a butterfly valve. The disc is attached to the stem, and the flow is controlled by how it turns. When the valve is shut, the seal makes sure the seal is tight.
4. What kinds of liquid can be used with butterfly valves?
Ans: Butterfly valves can usually handle liquids and gases, but they can't handle solids in large amounts. The qualities of the fluid being moved affect the choice of materials for the valve body and disc.
5. How do butterfly valves join a piping system?

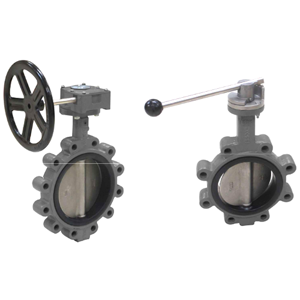

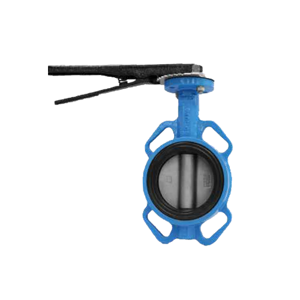

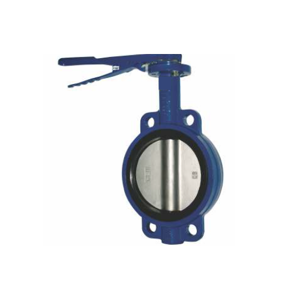

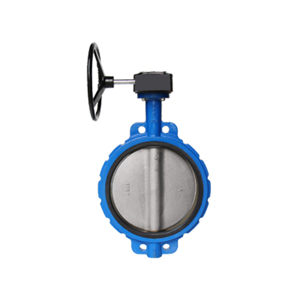

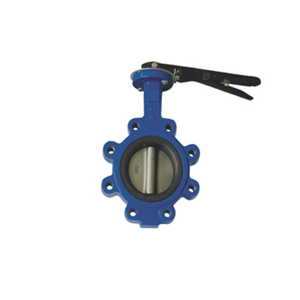

Ans: Butterfly valves can be connected to a piping system in different ways, such as with wafer type, lug type, or flange connections.
6. What are some of the benefits of butterfly valves?
Ans: Some benefits of butterfly valves are that they are light and small, cheaper than other valves, easy to use, and come in big orifice sizes.
